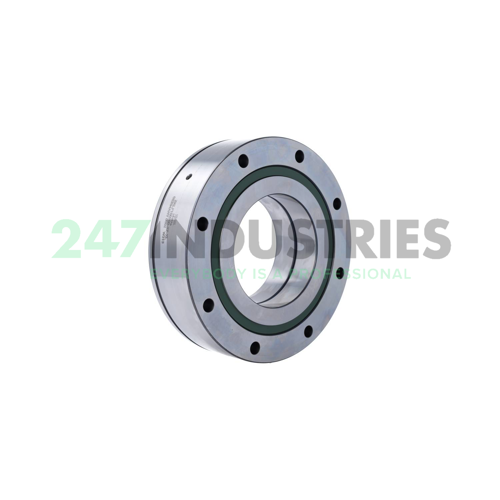

ZKLF100200-2Z-XL INA

All dimensions

1. Inner (d) MM 100,00
2. Outer (D) MM 200,00
3. Width (B) MM 55,00
4. Width (b) mm 55,00

Suffix description

1. 2Z Gap Seals At Both Sides Of The Bearing
2. XL X-Life

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number ZKLF100200-2Z-XL INA
4. Also known as 0010068600000
   BEAM100200-2Z

5. EAN 4012802078589
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 8.372

Product Properties

1. Cage Type P - Plastic Molded Cage
2. Precision P4 Precision (Higher than P5)

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "154000.0000"
2. Axial Static Load Rating C0a (N) 435000
3. Basic static load rating, axial (C 0a) "435000.0000"
4. Axial Dynamic Load Rating Ca (N) 154000
5. Limiting speed for grease lubrication (n G Grease) "3300.0000"
6. Thermally safe operating speed (n ϑ) "2150.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings ZKLF..-2Z, double direction, for screw mounting, gap seals on both sides
