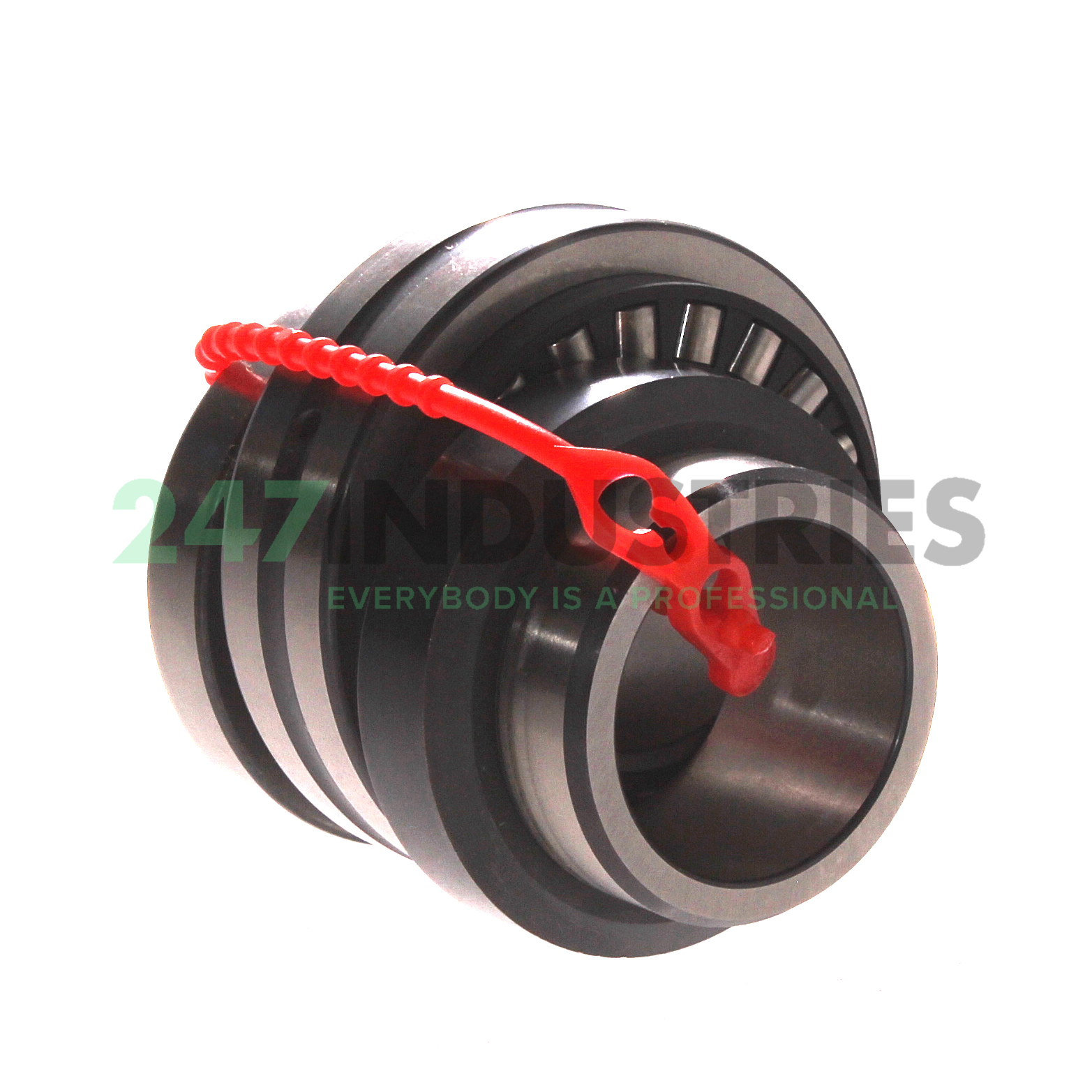

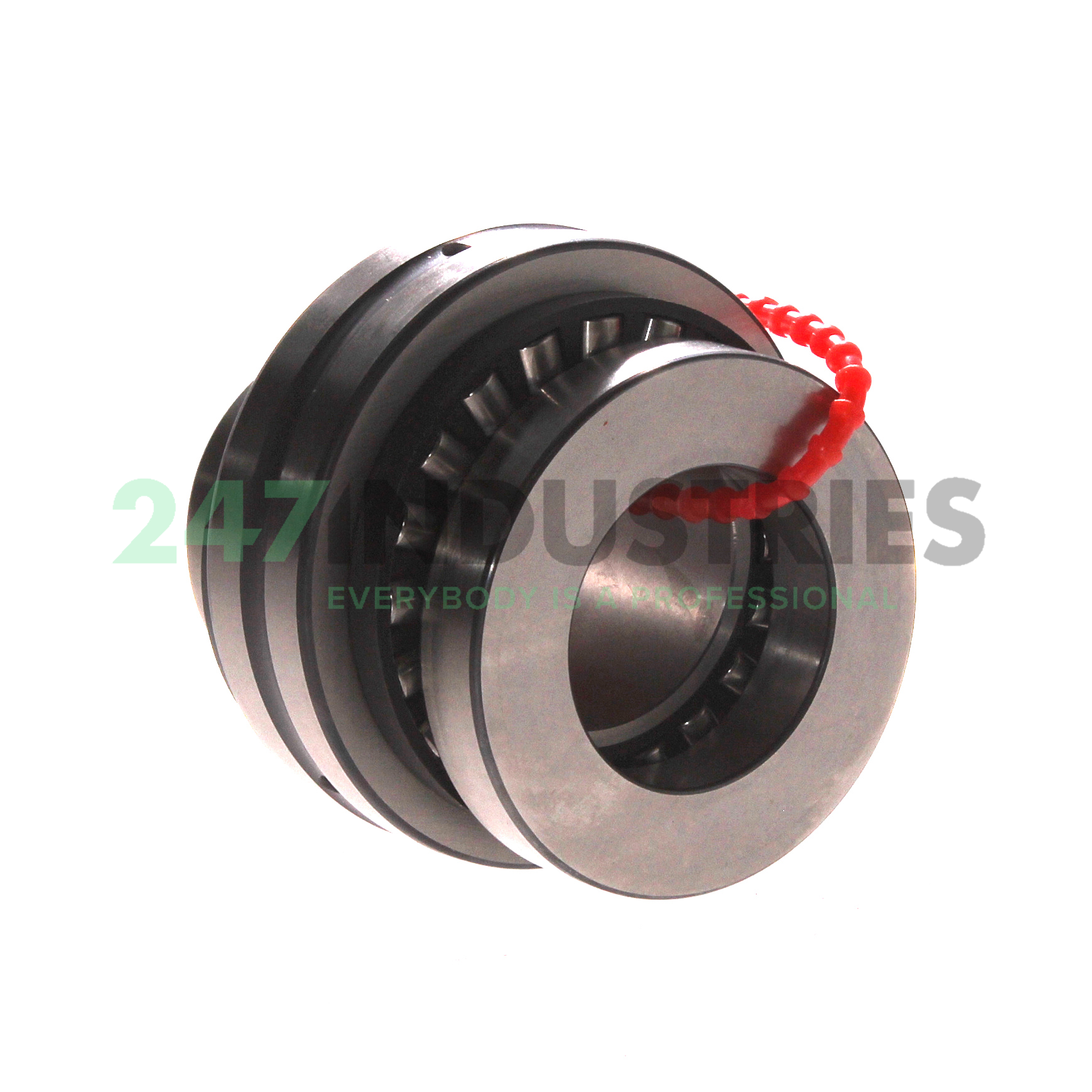

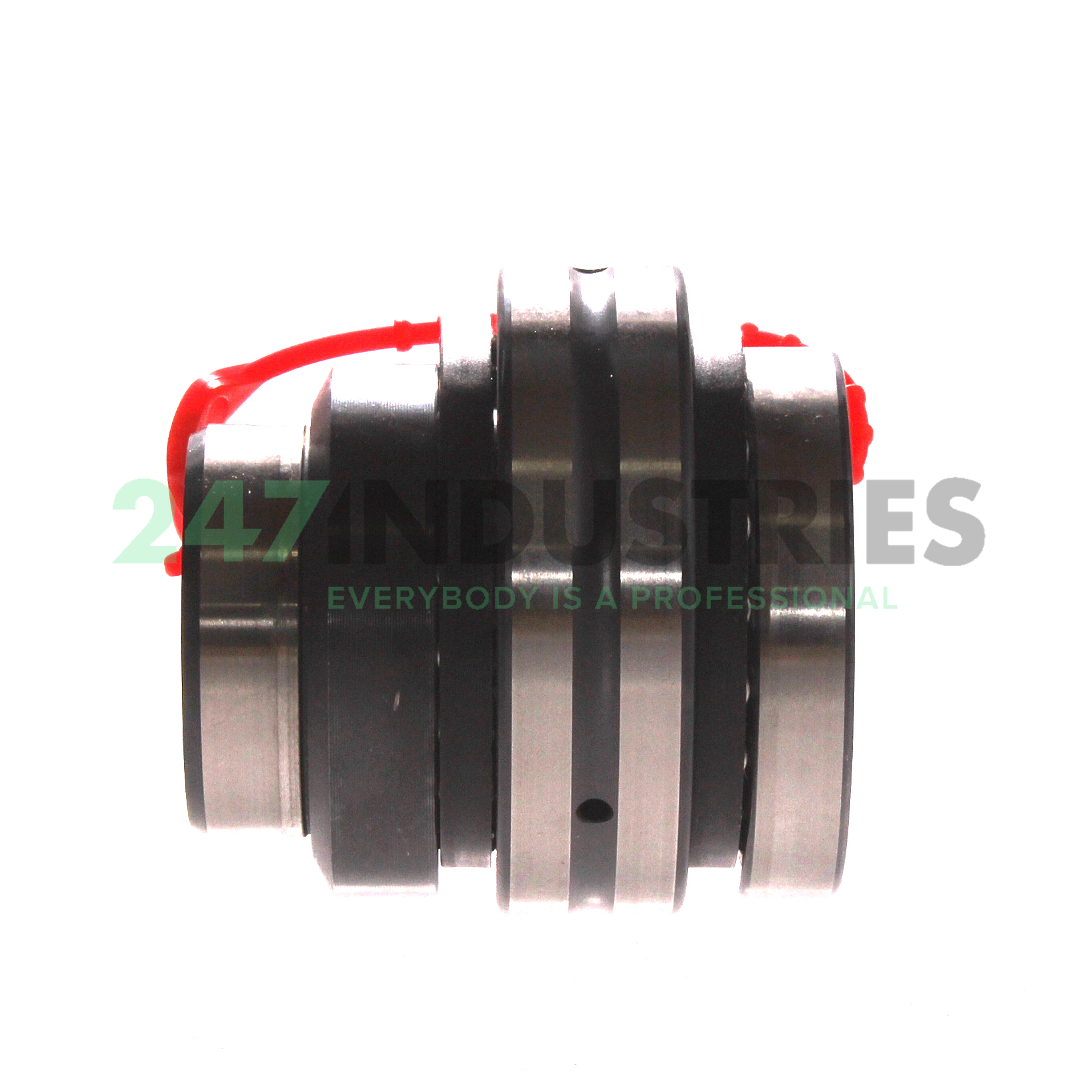

ZARN3570-L-TV-A INA

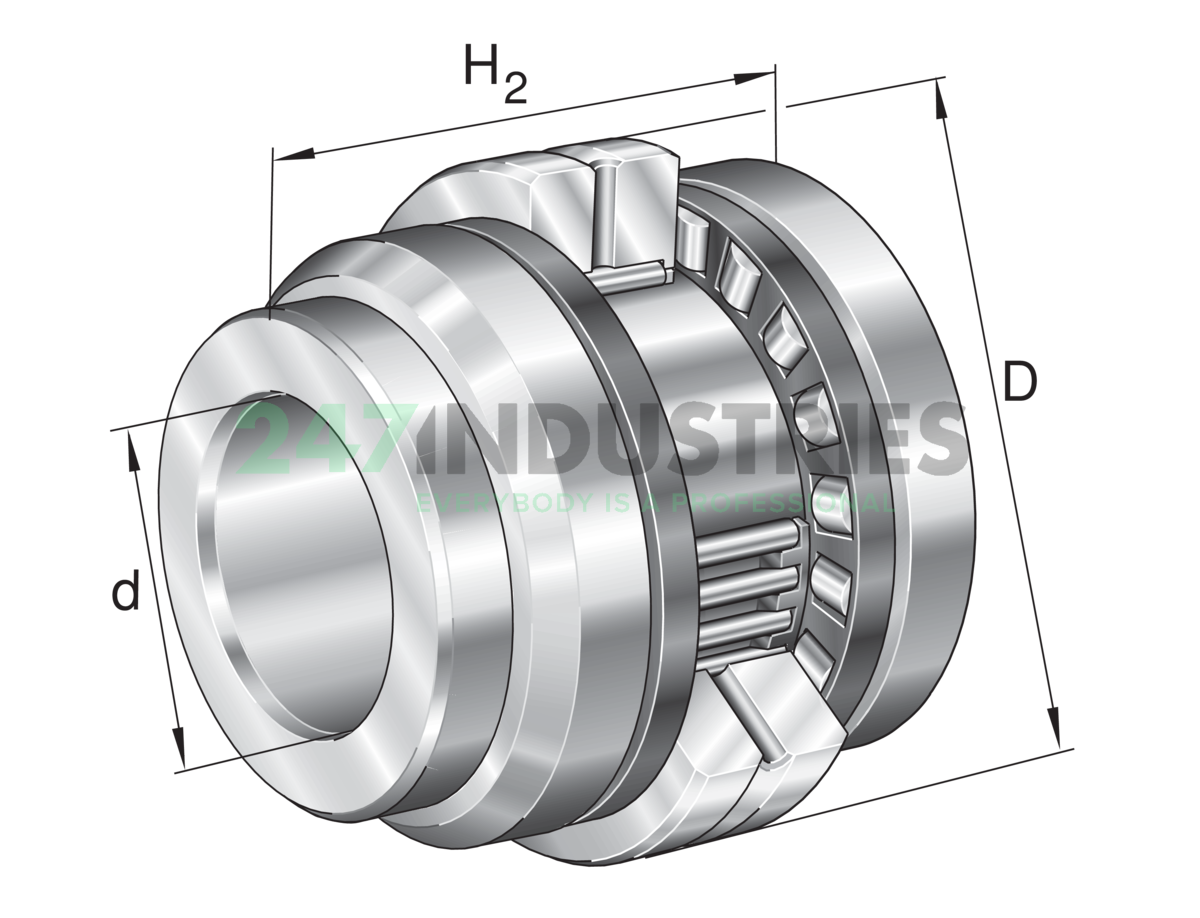

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 70
3. Width (B) MM 70
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.7559
6. Width (B) Inch 2.7559
7. Height (H) mm 70

Suffix description

1. L Long Locating Washers
2. TV Polyamide Cage
3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number ZARN3570-L-TV-A INA
4. Also known as 0016823930000
   ZARN3570LTNA

5. EAN 4054364124168
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.93

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 47000
2. Radial Dynamic Load Rating Cr (N) 26000
3. Axial Static Load Rating C0a (N) 148000
4. Axial Dynamic Load Rating Ca (N) 56000
5. Limiting speed for grease lubrication (n G Grease) 1700
6. Limiting speed for oil lubrication (n G Oil) 4800
7. ECLASS number 23-05-12-90
8. ECLASS2 number 23-05-12-90
9. Medias description Needle roller/axial cylindrical roller bearings ZARN..-L, double direction, long shaft locating washer
