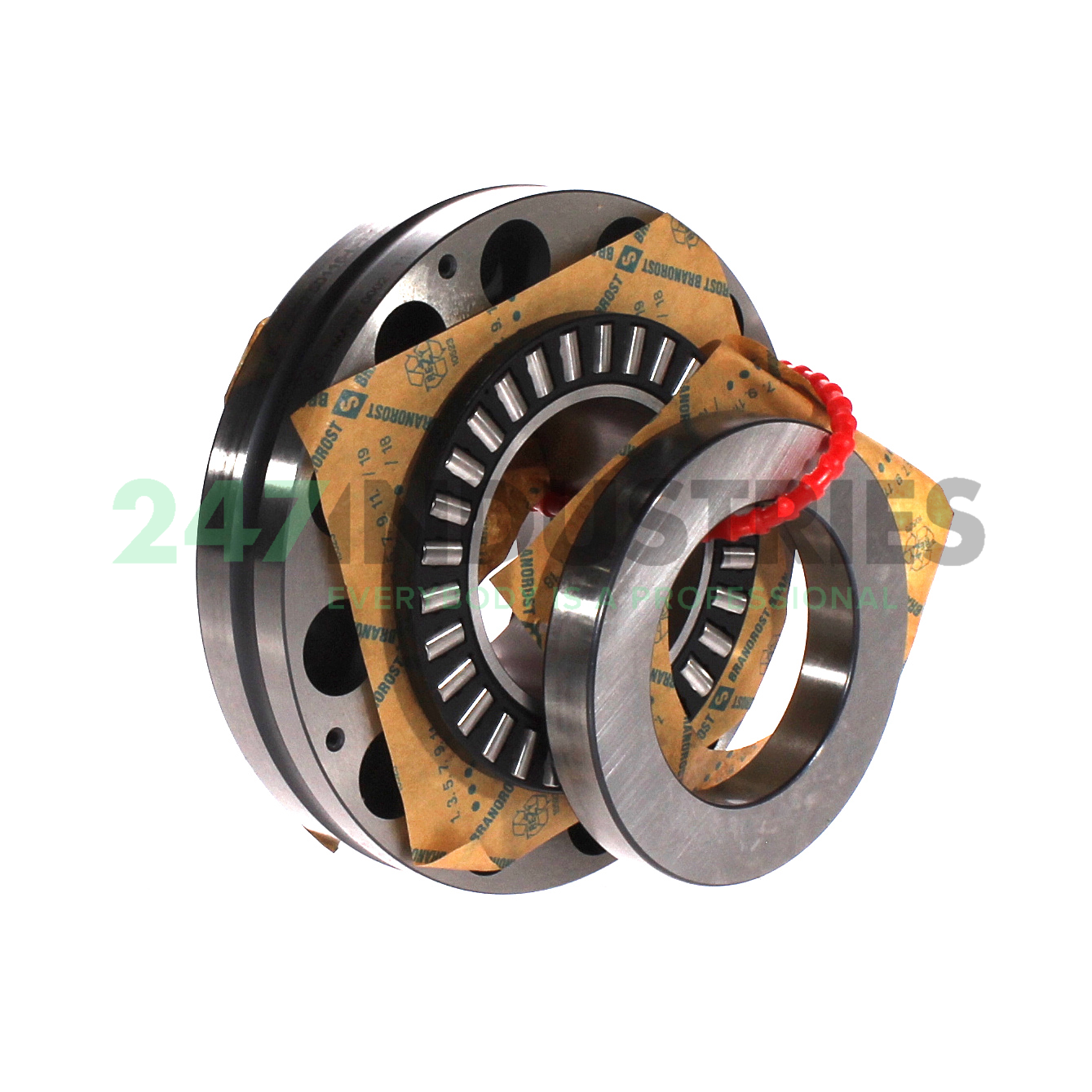

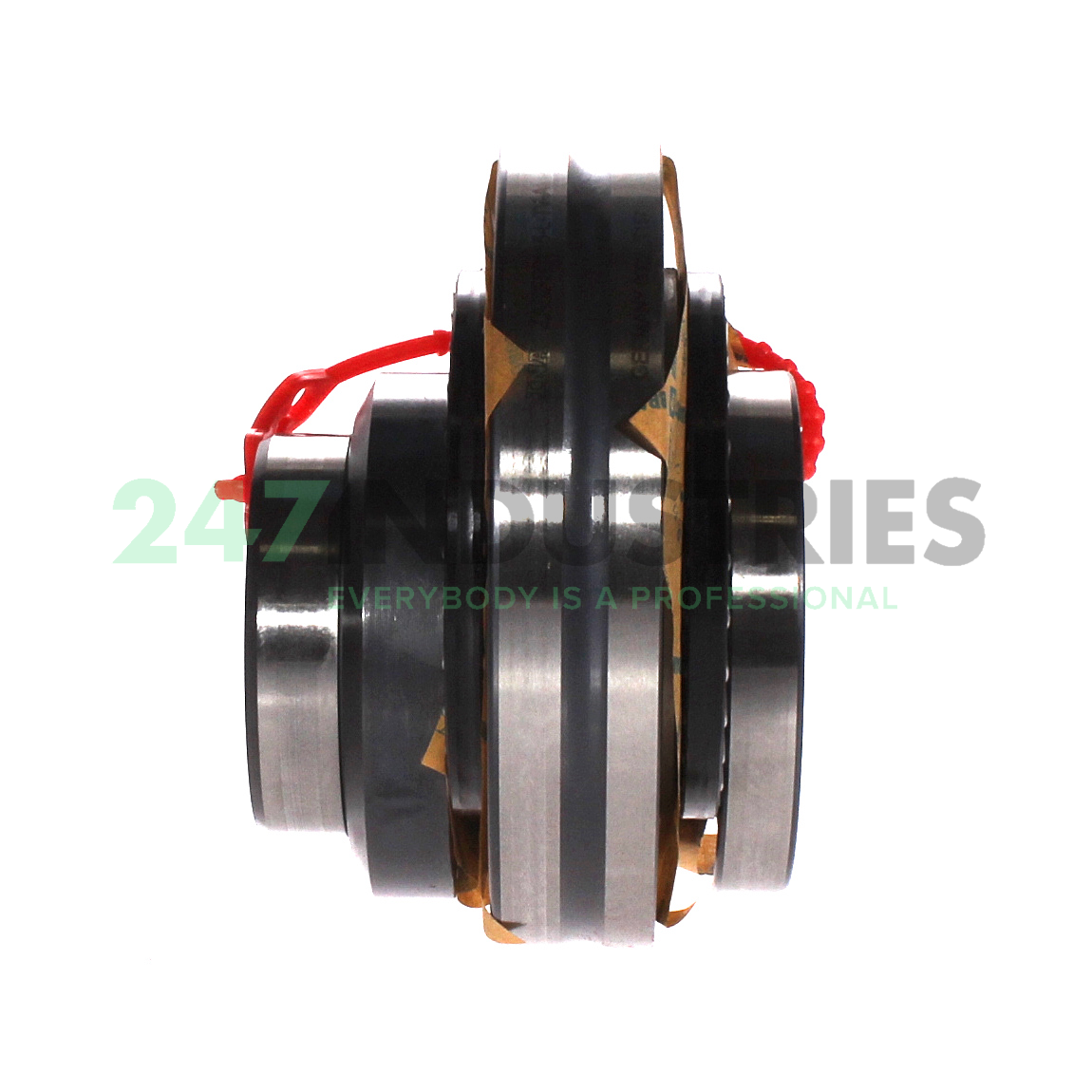

ZARF50115-L-TV-A INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 115
3. Width (B) MM 78
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.5276
6. Width (B) Inch 3.0709
7. Height (H) mm 78

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number ZARF50115-L-TV-A INA
4. Also known as 0016826440000

5. EAN 4012802078268
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 2.45

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 82000
2. Radial Dynamic Load Rating Cr (N) 40000
3. Axial Static Load Rating C0a (N) 300000
4. Axial Dynamic Load Rating Ca (N) 90000
5. Limiting speed for grease lubrication (n G Grease) 1200
6. Limiting speed for oil lubrication (n G Oil) 3600
7. ECLASS number 23-05-12-03
8. ECLASS2 number 23-05-12-03
9. Medias description Needle roller/axial cylindrical roller bearings ZARF..-L, double direction, for screw mounting, long shaft locating washer
