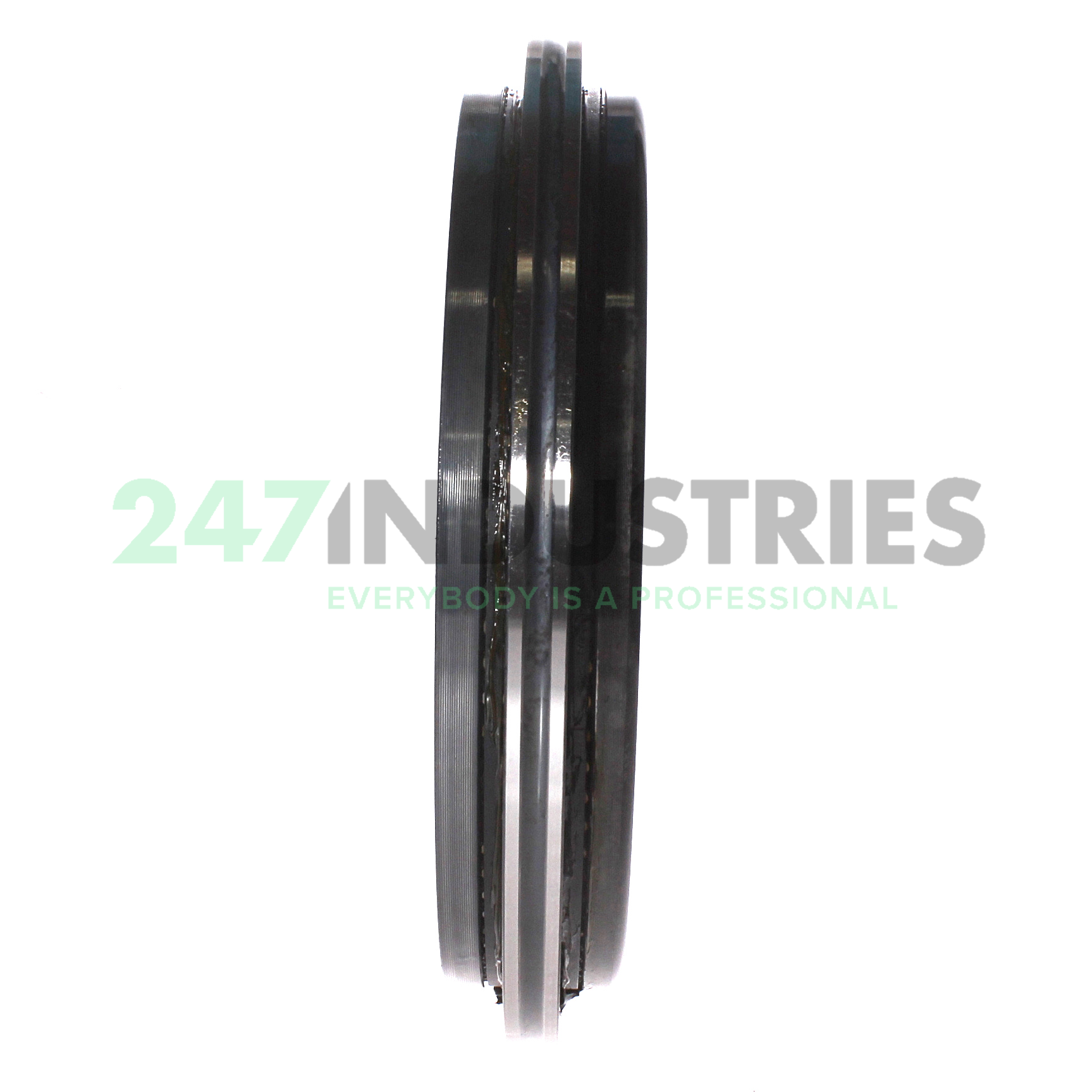

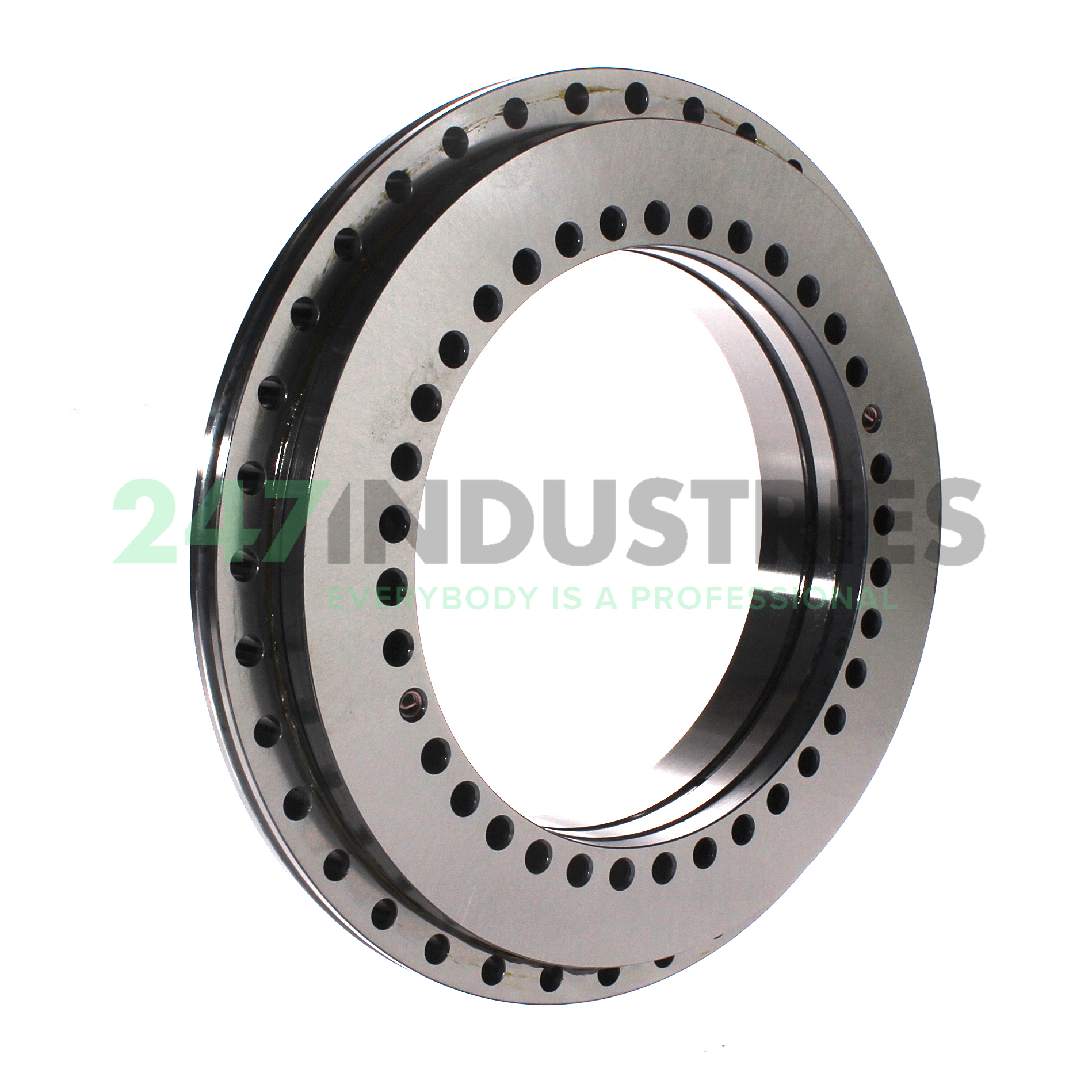

YRTC150-XL INA

All dimensions

1. Inner (d) MM 150
2. Outer (D) MM 240
3. Width (B) MM 40
4. Inner (d) Inch 5.9055
5. Outer (D) Inch 9.4488
6. Width (B) Inch 1.5748
7. Height (H) mm 40

Suffix description

1. XL X-Life

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number YRTC150-XL INA
4. Also known as 0889031330000
   YRT150
   YRTC150

5. EAN 4054371097998
6. Category Specials

Weight and Dimensions

1. Weight (kg) 5.4

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 146000
2. Radial Dynamic Load Rating Cr (N) 74000
3. Axial Static Load Rating C0a (N) 650000
4. Axial Dynamic Load Rating Ca (N) 128000
5. Limiting speed (n G) 800
6. ECLASS number 23-05-12-04
7. ECLASS2 number 23-05-12-04
8. Medias description Axial/radial bearings double direction, screw mounting, with integrated angular measuring system
