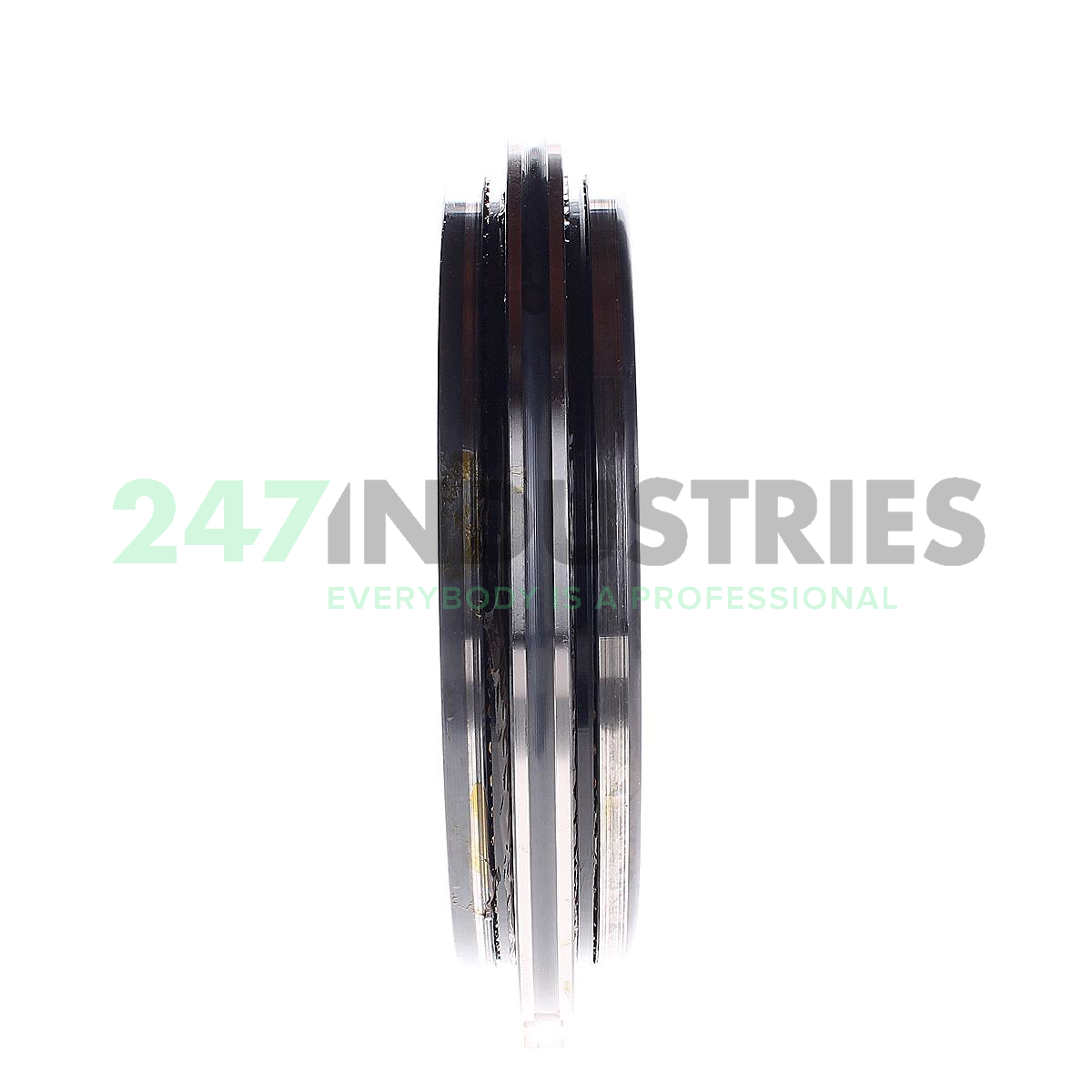

YRTC120-XL INA

All dimensions

1. Inner (d) MM 120,00
2. Outer (D) MM 210,00
3. Width (B) MM 40,00
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 8.2677
6. Width (B) Inch 1.5748
7. Height (H) mm 40,00

Suffix description

1. XL X-Life

Technical details

1. Availability 3 pcs
2. Brand INA
3. Item number YRTC120-XL INA
4. Also known as 0889031500000
   YRT120
   YRT120-B
   YRT120-C
   YRTC120

5. EAN 4054371770228
6. Category Specials

Weight and Dimensions

1. Weight (kg) 4.61

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "112000.0000"
2. Radial Static Load Rating C0r (N) 124000
3. Radial Dynamic Load Rating Cr (N) 69000
4. Axial Static Load Rating C0a (N) 520000
5. Basic static load rating, axial (C 0a) "520000.0000"
6. Basic static load rating, radial (C 0r) "124000.0000"
7. Axial Dynamic Load Rating Ca (N) 112000
8. Limiting speed (n G) "900.0000"
9. ECLASS number 23-05-12-04
10. ECLASS2 number 23-05-12-04
11. Medias description Axial/radial bearings double direction, screw mounting, with integrated angular measuring system
