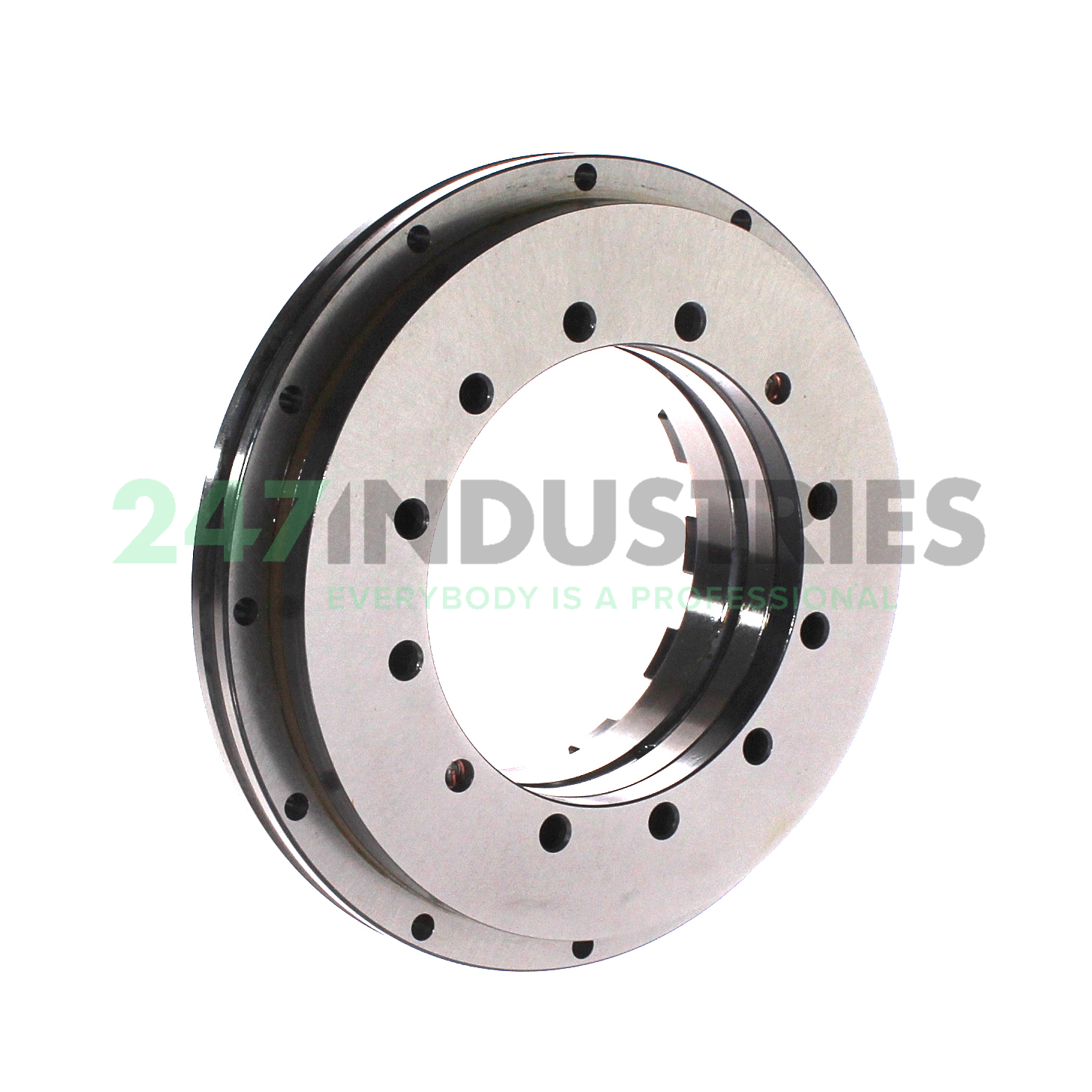

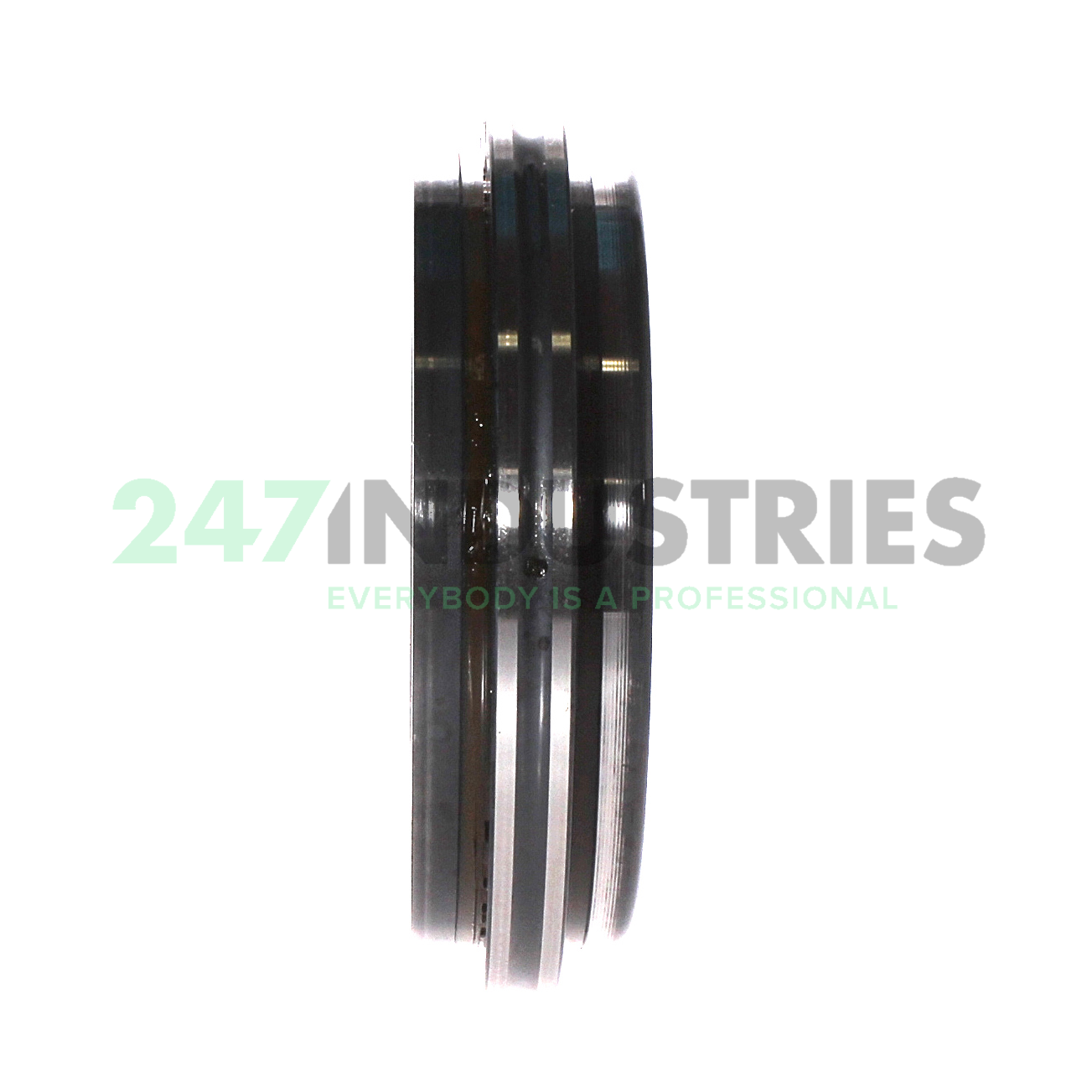

YRT80-TV-C INA

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 146,00
3. Width (B) MM 35,00
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.7480
6. Width (B) Inch 1.3780
7. Height (H) mm 35,00

Suffix description

1. TV Polyamide Cage
2. C

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number YRT80-TV-C INA
4. Also known as 0502116680000
   YRTC80-TV
   YRTC80-XL-TV

5. EAN 4047643206211
6. Category Specials

Weight and Dimensions

1. Weight (kg) 2.4

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "38000.0000"
2. Radial Static Load Rating C0r (N) 98000
3. Radial Dynamic Load Rating Cr (N) 44000
4. Axial Static Load Rating C0a (N) 158000
5. Basic static load rating, axial (C 0a) "158000.0000"
6. Basic static load rating, radial (C 0r) "98000.0000"
7. Axial Dynamic Load Rating Ca (N) 38000
8. Limiting speed (n G) "350.0000"
9. ECLASS number 23-05-12-04
10. ECLASS2 number 23-05-12-04
11. Medias description Axial/radial bearings YRT, double direction, for screw mounting
