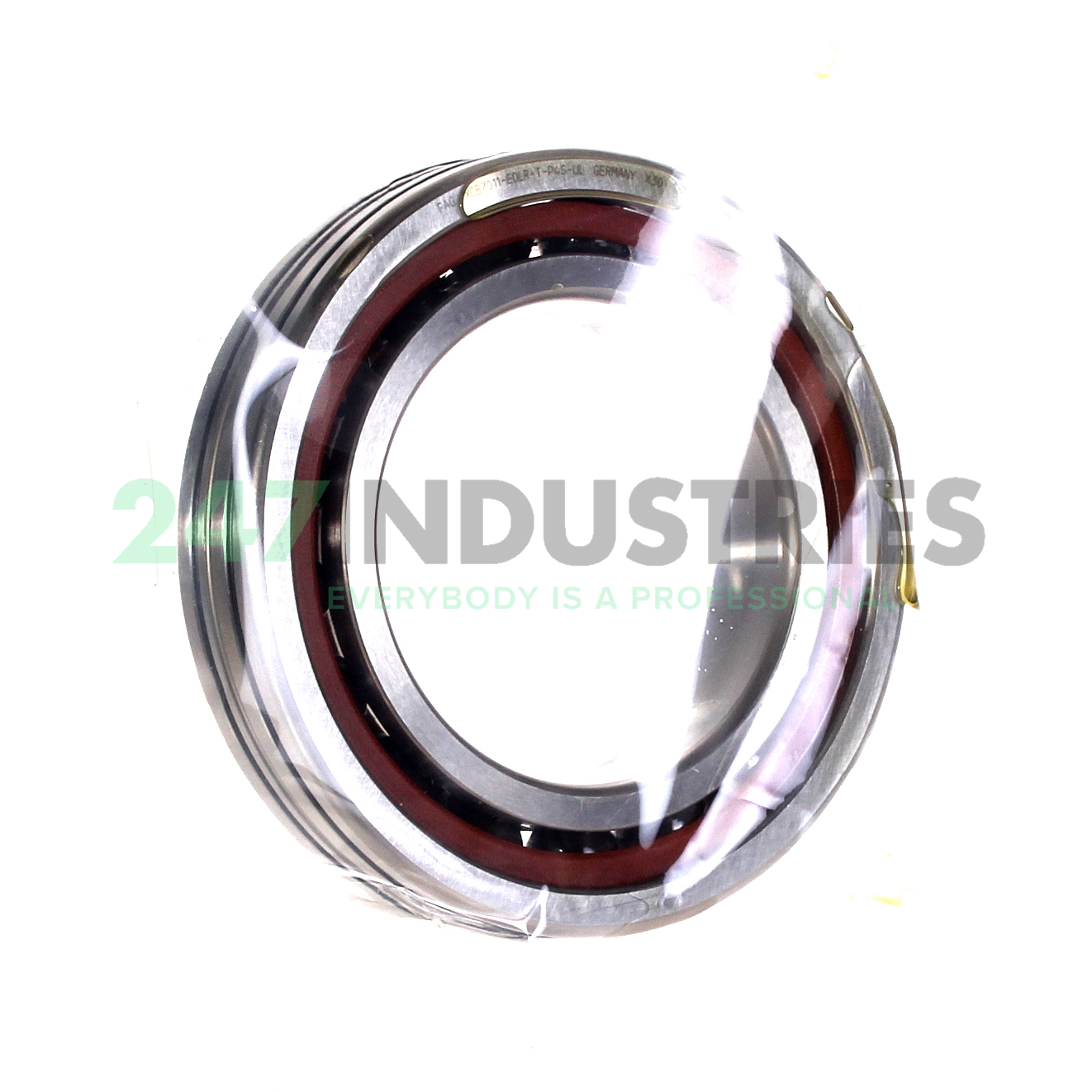

XCB7011-EDLR-T-P4S-UL FAG

Cronidur 30 high speed spindle bearing with standard size ceramic balls

Stock
not in stock
Brand FAG
Article number XCB7011-EDLR-T-P4S-UL FAG
Inside diameter 55,00mm
Outside diameter 90,00mm
Width 18,00mm
Product description

The XCB7011-EDLR-T-P4S-UL FAG is a spindle bearing with a very durable construction. XCB angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XCB models have standard-size balls for a higher load capacity.

Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XCB7011-EDLR-T-P4S-UL FAG you save considerably on your maintenance and operating costs.

Read more Show less
Help with this product

Downloads and links

Similar to: XCB7011-EDLR-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 55,00
  2. Outer (D) MM 90,00
  3. Width (B) MM 18,00
  4. Inner (d) Inch 2.1654
  5. Outer (D) Inch 3.5433
  6. Width (B) Inch 0.7087

Suffix description

  1. E 25° Contact Angle
  2. DLR Direct Lube, Integral O-Ring
  3. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  4. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  5. UL Single Bearing, Universal, Light Preload

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number XCB7011-EDLR-T-P4S-UL FAG
  4. Also known as 0386204130000
  5. EAN 4026677733320
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.32

Product Properties

  1. Seal No Seal
  2. Cage Type TB - Hard Fiber Cage
  3. Precision P4S Precision (Higher than P4)
  4. Contact Angle 25 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  7. Lubrication DLR

Data from Schaeffler (medias)

  1. ECLASS number 23-05-08-03
  2. ECLASS2 number 23-05-08-03
