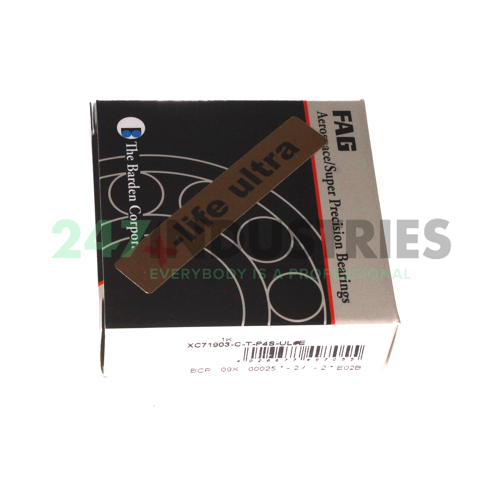

XC71903-C-T-P4S-UL FAG

Angular Contact Ball Bearing Single Row

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number XC71903-C-T-P4S-UL FAG
Inside diameter 17mm
Outside diameter 30mm
Width 7mm
Product description

The XC71903-C-T-P4S-UL FAG is a spindle bearing with a very durable construction. XC angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XC models have small balls for extra high speeds.

Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XC71903-C-T-P4S-UL FAG you save considerably on your maintenance and operating costs.

Read more Show less
Help with this product

Downloads and links

Similar to: XC71903-C-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 17
  2. Outer (D) MM 30
  3. Width (B) MM 7
  4. Inner (d) Inch 0.6693
  5. Outer (D) Inch 1.1811
  6. Width (B) Inch 0.2756
  7. Width (b) mm 7

Suffix description

  1. C 15° Or 17° Contact Angle
  2. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  3. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  4. UL Single Bearing, Universal, Light Preload

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number XC71903-C-T-P4S-UL FAG
  4. Also known as 0385730160000
  5. EAN 4026677497055
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.02

Product Properties

  1. Seal No Seal
  2. Cage Type TB - Hard Fiber Cage
  3. Precision P4S Precision (Higher than P4)
  4. Contact Angle 15 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

  1. Basic static load rating, radial (C 0r) 790
  2. Limiting speed for grease lubrication (n G Grease) 90000
  3. Limiting speed for oil lubrication (n G Oil) 150000
  4. ECLASS number 23-05-08-03
  5. ECLASS2 number 23-05-08-03
