XC7009-E-TX-P4S-H145A-UL FAG

Angular Contact Ball Bearing Single Row

Stock
2 pcs available for shipment on Wed 28 Jan
Brand FAG
Article number XC7009-E-TX-P4S-H145A-UL FAG
Product description

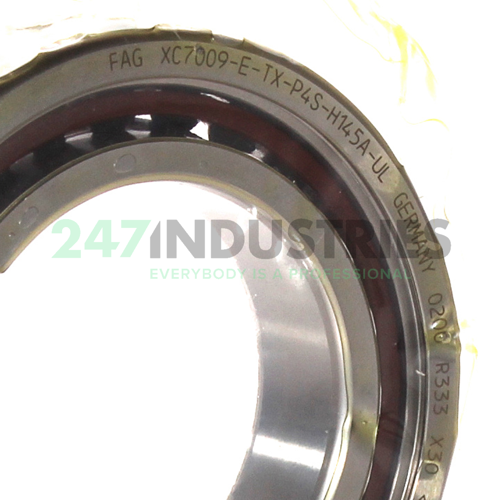

The XC7009-E-TX-P4S-H145A-UL FAG is a spindle bearing with a very durable construction. XC angular contact ball bearings are part of the FAG X-life ultra series. These hybrid bearings combine a ring of Cronidur 30 steel with ceramic balls. X-life ultra bearings can withstand high speeds, high loads and high temperatures. FAG XC models have small balls for extra high speeds.

Cronidur 30 steel generates less heat, allowing for higher contact pressure. It is corrosion resistant and less vulnerable to dirt than normal bearing steel. Furthermore, X-life ultra bearings have ceramic balls for higher speeds. The combination of steel and ceramics reduces the load on both materials and lubricants. With the wear-resistant XC7009-E-TX-P4S-H145A-UL FAG you save considerably on your maintenance and operating costs.

Read more Show less
Help with this product

Downloads and links

Similar to: XC7009-E-TX-P4S-H145A-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 75
  3. Width (B) MM 16
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 2.9528
  6. Width (B) Inch 0.6299

Suffix description

  1. E 25° Contact Angle
  2. TX Textile Laminated Phenolic Resin, Outer Ring Guided. Modified Cage Design And Lubricant Flow Allow The FAG TX Spindle Bearings To Run Up To 10% Cooler Even In The High Speed Range
  3. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  4. H145A Unknown
  5. UL Single Bearing, Universal, Light Preload

Technical details

  1. Availability 2 pcs on Wed 28 Jan
  2. Brand FAG
  3. Item number XC7009-E-TX-P4S-H145A-UL FAG
  4. Also known as 0388701000000
  5. EAN 4026677985323
  6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

  1. Weight (kg) 0.26

Product Properties

  1. Seal No Seal
  2. Cage Type TB - Hard Fiber Cage
  3. Precision P4S Precision (Higher than P4)
  4. Contact Angle 25 degrees
  5. Pairing G - Universal Pairing
  6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  7. Lubrication Standard Lubrication
