XC7004-C-T-P4S-UL FAG

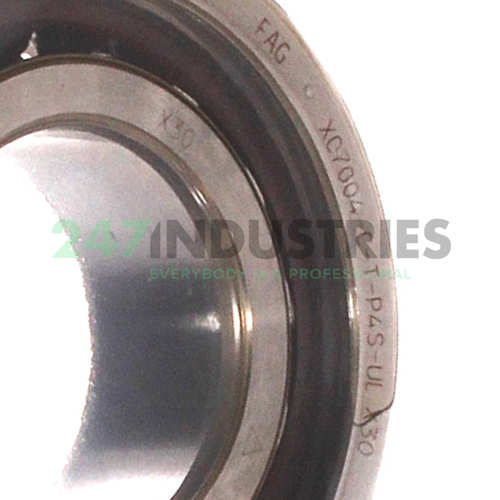

The XC7004-C-T-P4S-UL FAG is a single row angular contact ball bearing with a hard fiber cage and no seal.

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number XC7004-C-T-P4S-UL FAG
Inside diameter 20,00mm
Outside diameter 42,00mm
Width 12,00mm
Product description
High speed spindle bearing
Read more Show less

Similar to: XC7004-C-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20,00
  2. Outer (D) MM 42,00
  3. Width (B) MM 12,00

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number XC7004-C-T-P4S-UL FAG
  4. Technical details (C-T-P4S-UL) C=(C-SKF)=15° Contact Angle. T=(TB-Cage Segment)=Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C. P4S=(4S-Precision Segment)/(P4A-SKF)=(MMV-FAF)=Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9. UL=(GA-SKF)=Single Bearing, Universal, Light Preload.
  5. Also known as 4026677496270
  6. Category Angular Contact Ball Bearing Single Row
  7. Description from Medias High speed spindle bearing
  8. Weight (kg) 0.08
  9. Manufacturer Part Number (MPN) XC7004-C-T-P4S-UL
  10. Seal No Seal
  11. Cage Type TB - Hard Fiber Cage
  12. Precision P4S Precision (Higher than P4)
  13. Contact Angle 15 Degrees
  14. Pairing G - Universal Pairing
  15. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  16. Lubrication Standard Lubrication
