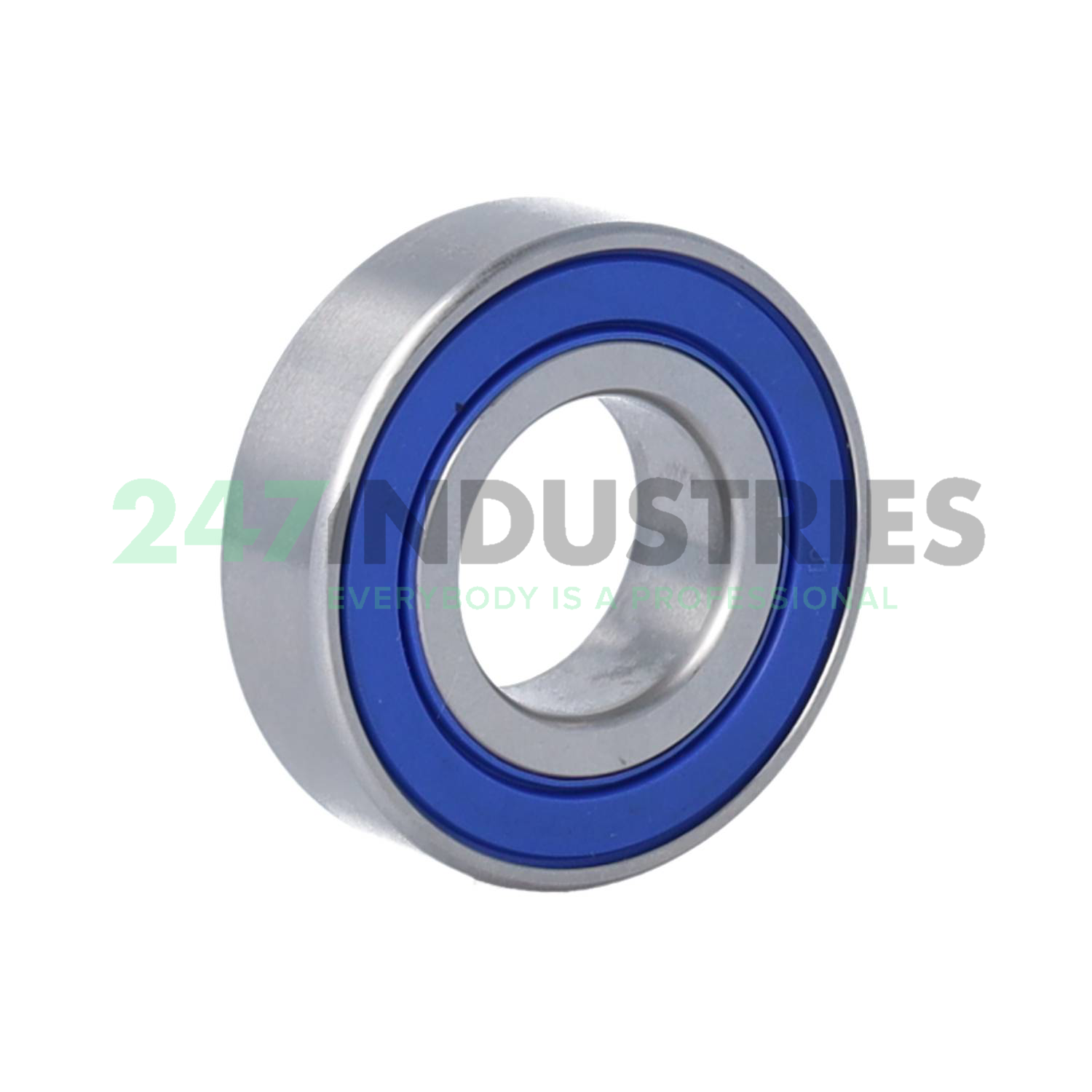

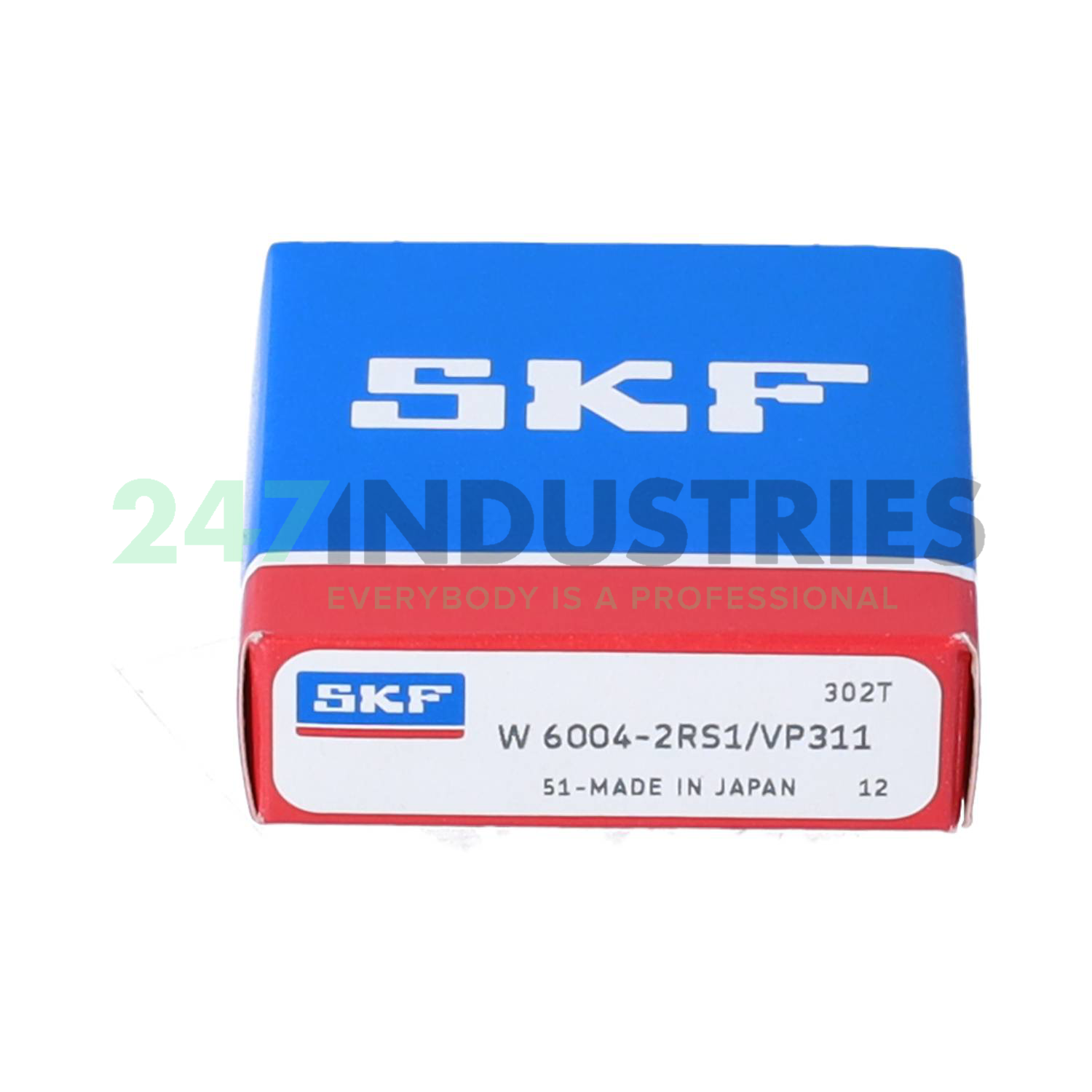

W6004-2RS1/VP311 SKF

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 12
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724

Suffix description

1. 2RS1 Sheet Steel Reinforced Contact Seal Of Acrylonitrile-Butadiene Rubber (NBR) On Both Sides Of The Bearing
2. VP311 SKF Food Line Bearing: Blue-Coloured Contact Seal Made Of FDA and EC Approved NBR And Lubricant (GFJ) Registered By NSF As Category H1

Technical details

1. Availability 15 pcs
2. Brand SKF
3. Item number W6004-2RS1/VP311 SKF
4. Also known as S6004-2RSR
   W6004-2RS1

5. EAN 7316576034282
6. Category Stainless Steel Ball Bearings

Weight and Dimensions

1. Weight (kg) 0.064

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RL - Low Friction NBR-seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Food Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
