VA160235-N INA

All dimensions

1. Inner (d) MM 171
2. Outer (D) MM 318,6
3. Width (B) MM 35
4. Inner (d) Inch 6.7323
5. Outer (D) Inch 12.5433
6. Width (B) Inch 1.378
7. Outside Diameter (D a) mm 318,6

Suffix description

1. N Normalized Gear Teeth On Bearing Ring

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number VA160235-N INA
4. Also known as 0013104960000
   K11.16.0235.810

5. EAN 4012802419658
6. Category Slewing

Weight and Dimensions

1. Weight (kg) 13

Product Properties

1. Seal 2L - LS-seal at Both Sides
2. Cage Type S - Steel or Standard Cage
3. External Modification No External Modification
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
7. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 209000
2. Radial Dynamic Load Rating Cr (N) 113000
3. Axial Static Load Rating C0a (N) 460000
4. Axial Dynamic Load Rating Ca (N) 125000
5. ECLASS number 23-05-14-90
6. ECLASS2 number 23-05-14-90

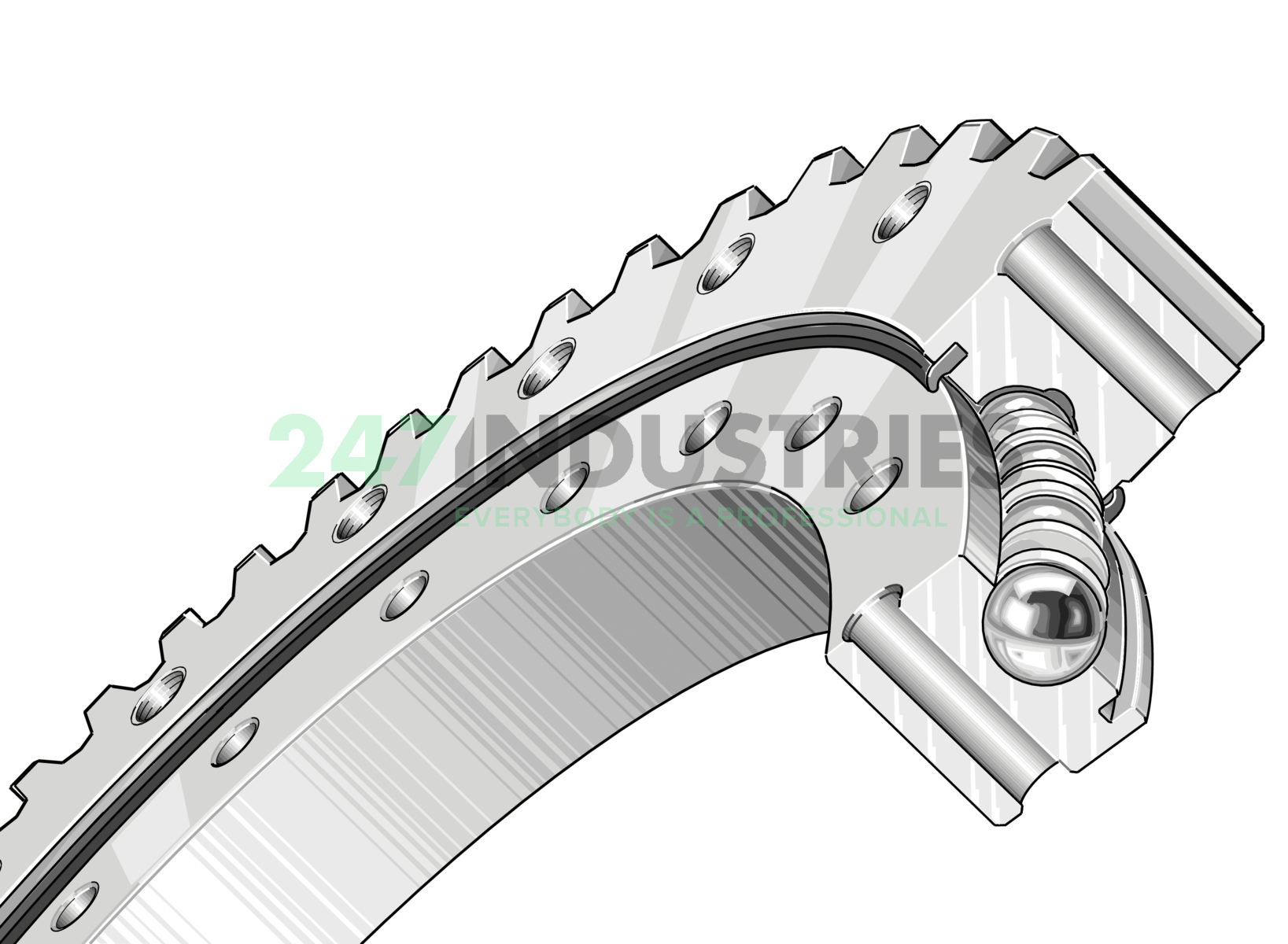

7. Medias description Slewing ring, four Point contact bearings, external gear
