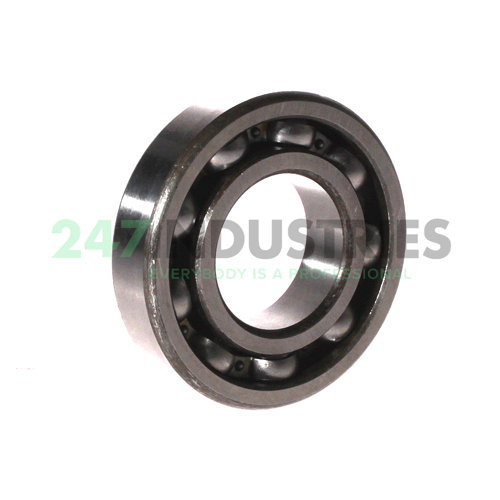

UR6207AZ ZKL

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693

Suffix description

1. A Axial Clearance In Non-Standardized Range (Range In µm - e.g. 3210 A20-30)
2. Z Shield Of Pressed Sheet Steel On One Side Of The Bearing

Technical details

1. Availability 0 pcs
2. Brand ZKL
3. Item number UR6207AZ ZKL
4. Also known as 6207AZ

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.291

Product Properties

1. Bore C - Cylindrical Bore
2. Seal Z - Steel Seal on One Side
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
