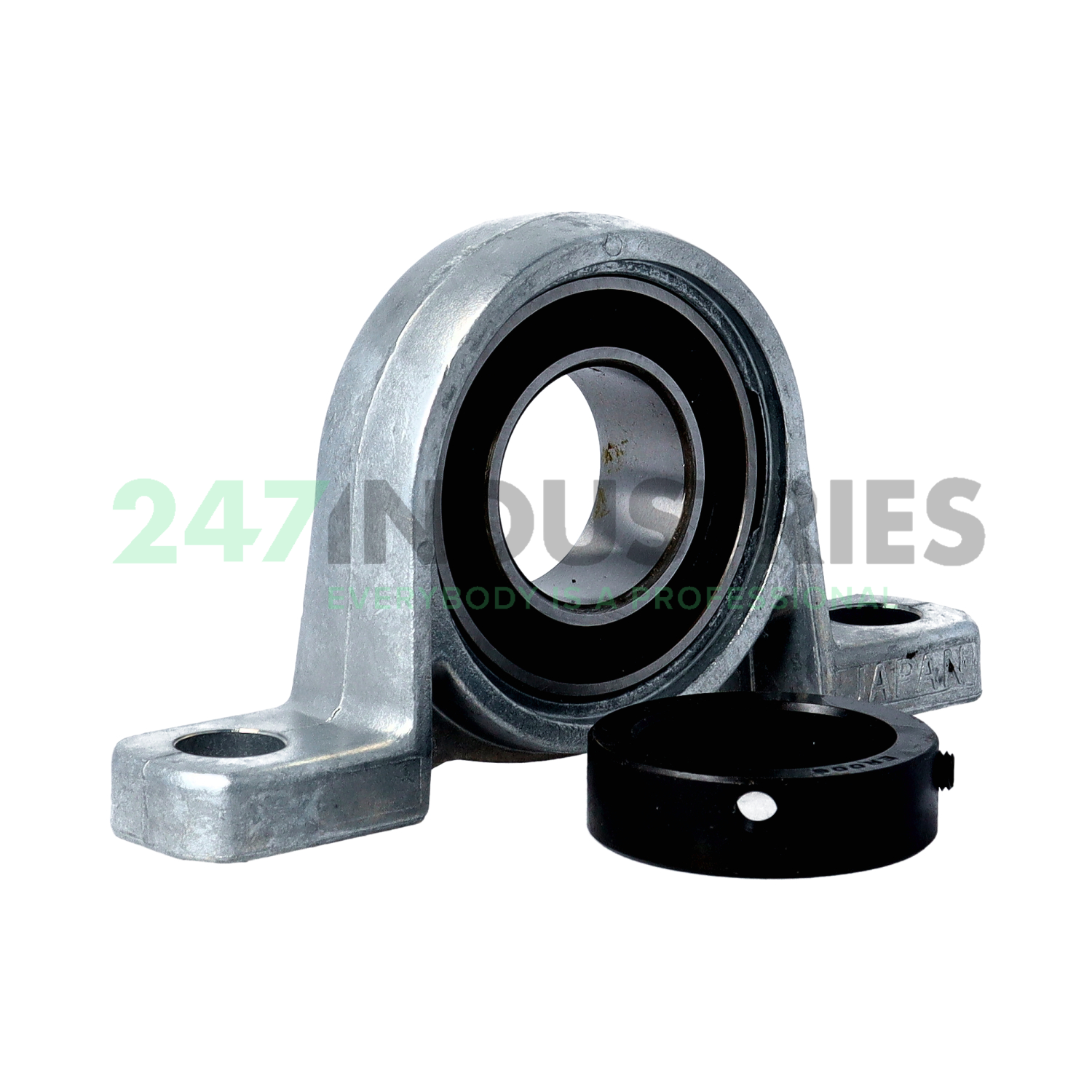

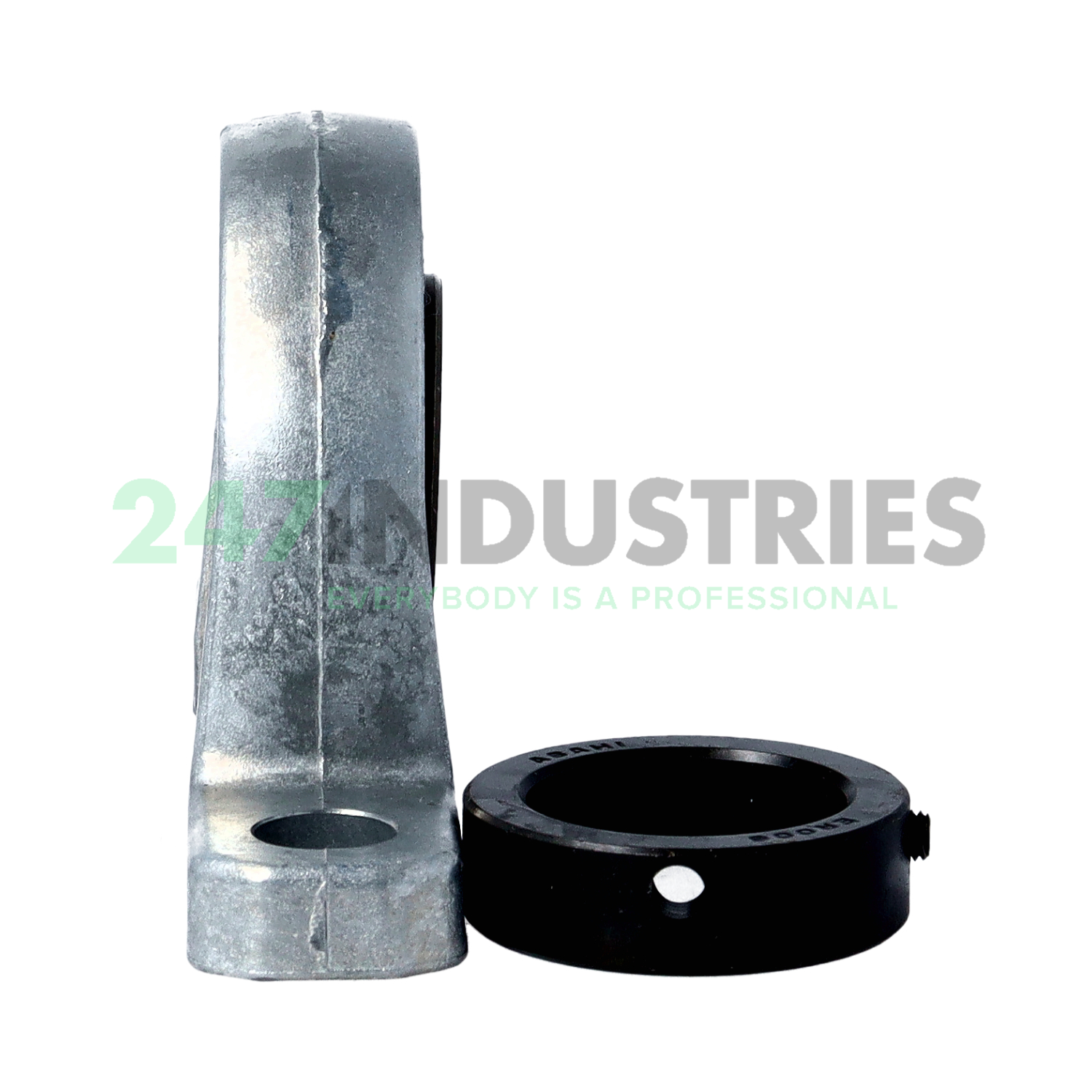

UP006+ER Asahi

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 132
3. Width (B) MM 26,5
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 5.1969
6. Width (B) Inch 1.0433

Suffix description

1. ER Eccentric Ring

Technical details

1. Availability 0 pcs
2. Brand Asahi
3. Item number UP006+ER Asahi
4. Also known as U006+ER + P06-7

5. Category Housing and Bearing (assembly)

Weight and Dimensions

1. Weight (kg) 0.454

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment
