UKT209-J7 FAG

Name: UKT209-J7 FAG
Brand: FAG

€ 54,28 ex VAT

€ 65,68 in VAT

€ 54,28 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

UKT209-J7 FAG

Housing and Bearing (assembly)

Stock	16 pcs in stock and ready for shipment
Brand	FAG
Article number	UKT209-J7 FAG
Inside diameter	40mm
Outside diameter	144mm
Width	49mm

Product description

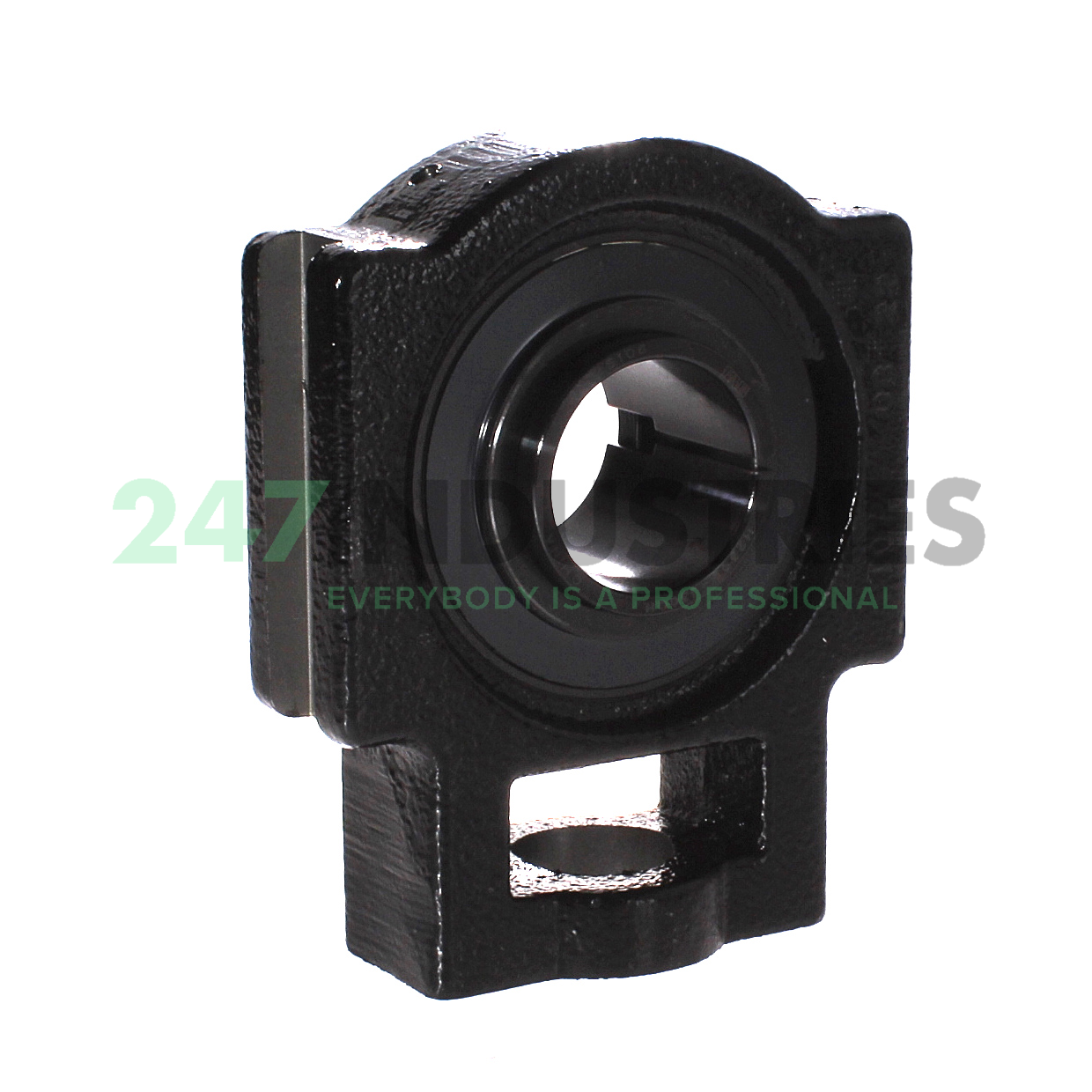

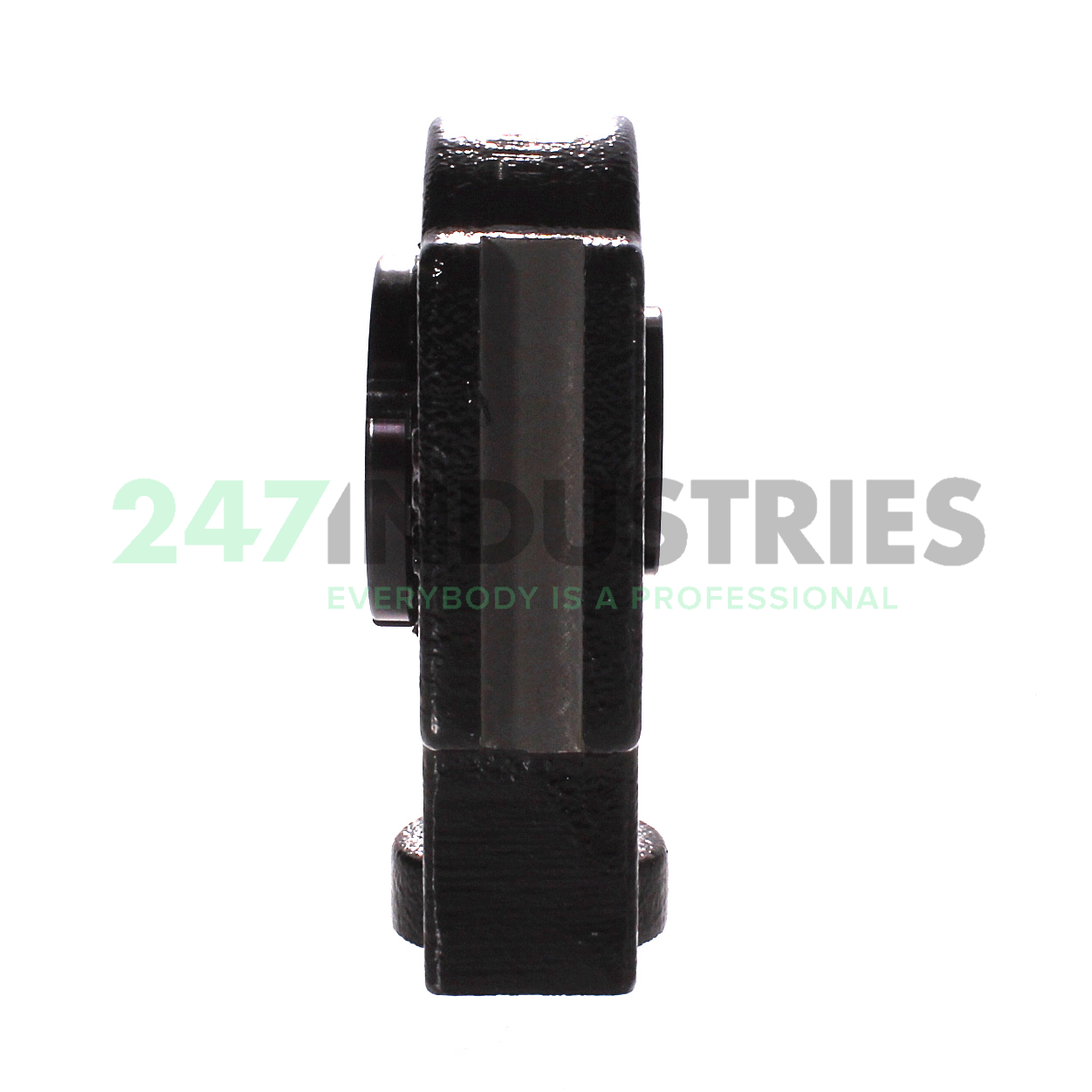

The UKT209-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: UKT209-J7 FAG

Loading similair products

Product specifications

Inside diameter 40mm
Outside diameter 144mm
Width 49mm

All dimensions

Inner (d) MM 40
Outer (D) MM 144
Width (B) MM 49
Inner (d) Inch 1.5748
Outer (D) Inch 5.6693
Width (B) Inch 1.9291
Height (H) mm 117
Length total (L) mm 144

Suffix description

J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

Availability 16 pcs
Brand FAG
Item number UKT209-J7 FAG
Also known as 0823352490000
UK209 + T209
EAN 4054366901743
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 2.51

Product Properties

Seal 2FK - Standard Seal + Plain Flinger
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Housing units UKT, cast iron housing, radial insert ball bearing with adapter sleeve, RSR seals, for linear motion
