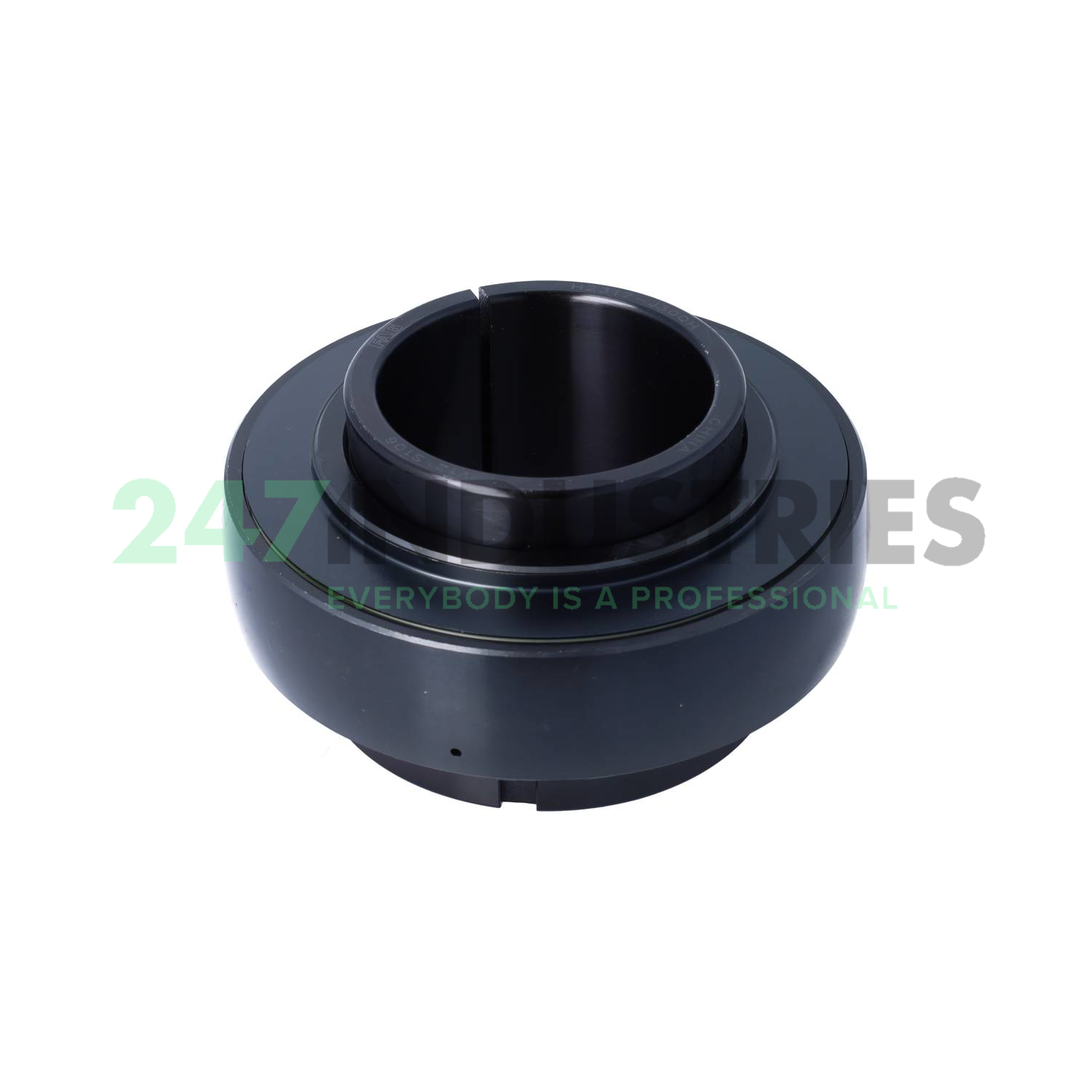

UK217 FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 150
3. Width (B) MM 82
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 5.9055
6. Width (B) Inch 3.2283
7. Outside diameter (D SP) mm 150
8. Width (b) mm 48
9. Locking collar total width (B 1) mm 82

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number UK217 FAG
4. Also known as 0774262580000
   YSA217-2FK

5. EAN 4054364077723
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 3.55

Product Properties

1. Seal 2FK - Standard Seal + Plain Flinger
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 64000
2. Radial Dynamic Load Rating Cr (N) 88000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
