UK212 FAG

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 110,00
3. Width (B) MM 62,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 4.3307
6. Width (B) Inch 2.4409
7. Outside diameter (D SP) mm 110,00
8. Width (b) mm 40,00
9. Locking collar total width (B 1) mm 62,00

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number UK212 FAG
4. Also known as 0705827420000
   YSA212-2FK

5. EAN 4012802655803
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 1.02

Product Properties

1. Seal 2FK - Standard Seal + Plain Flinger
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 36000
2. Radial Dynamic Load Rating Cr (N) 56000
3. Basic static load rating, radial (C 0r) "36000.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02

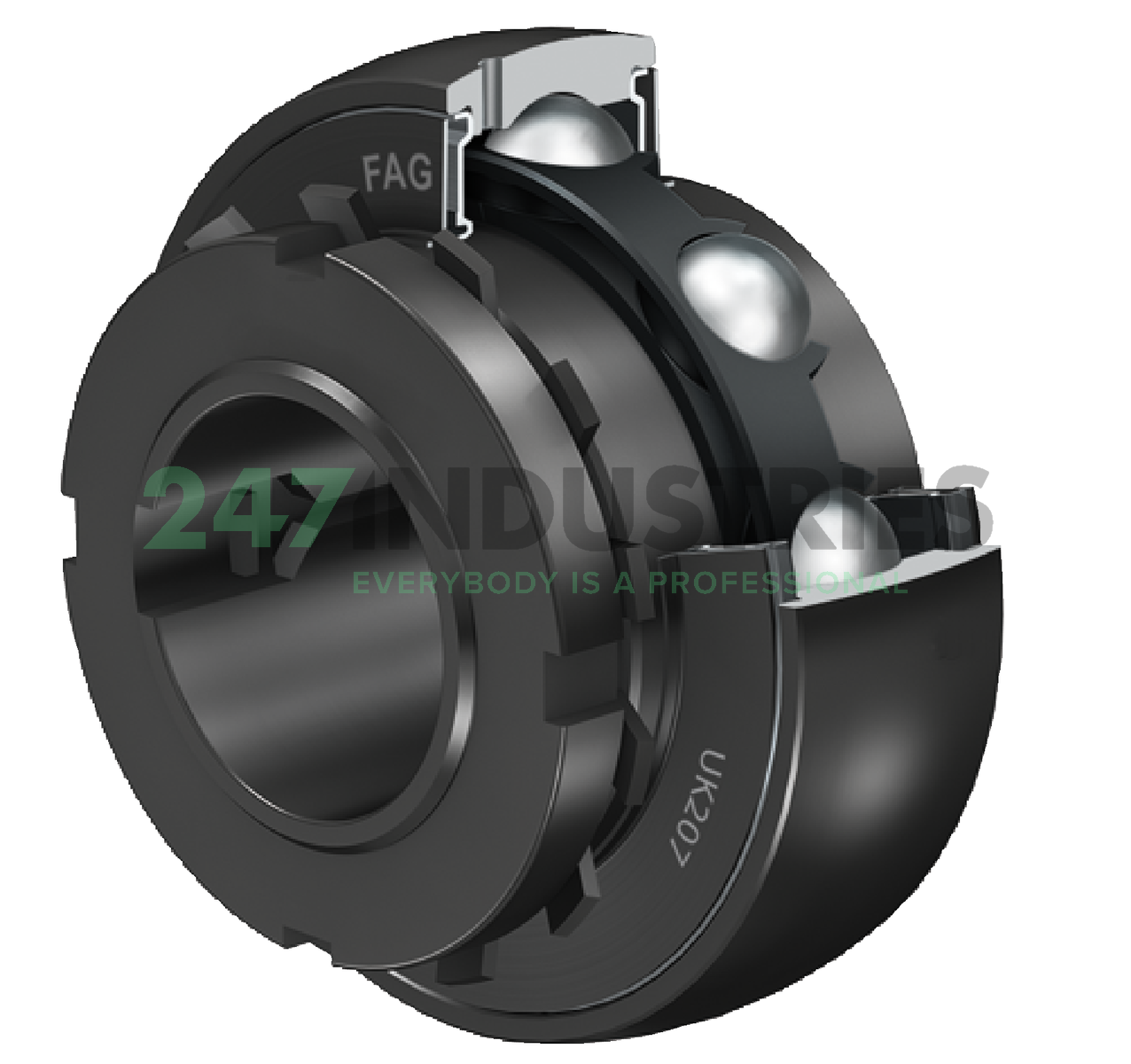

6. Medias description Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
