UK209 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 85
3. Width (B) MM 50
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.3465
6. Width (B) Inch 1.9685
7. Outside diameter (D SP) mm 85
8. Width (b) mm 32
9. Locking collar total width (B 1) mm 50

Technical details

1. Availability 27 pcs
2. Brand FAG
3. Item number UK209 FAG
4. Also known as 0705801700000

5. EAN 4012802660043
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.84

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 20400
2. Radial Dynamic Load Rating Cr (N) 34500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

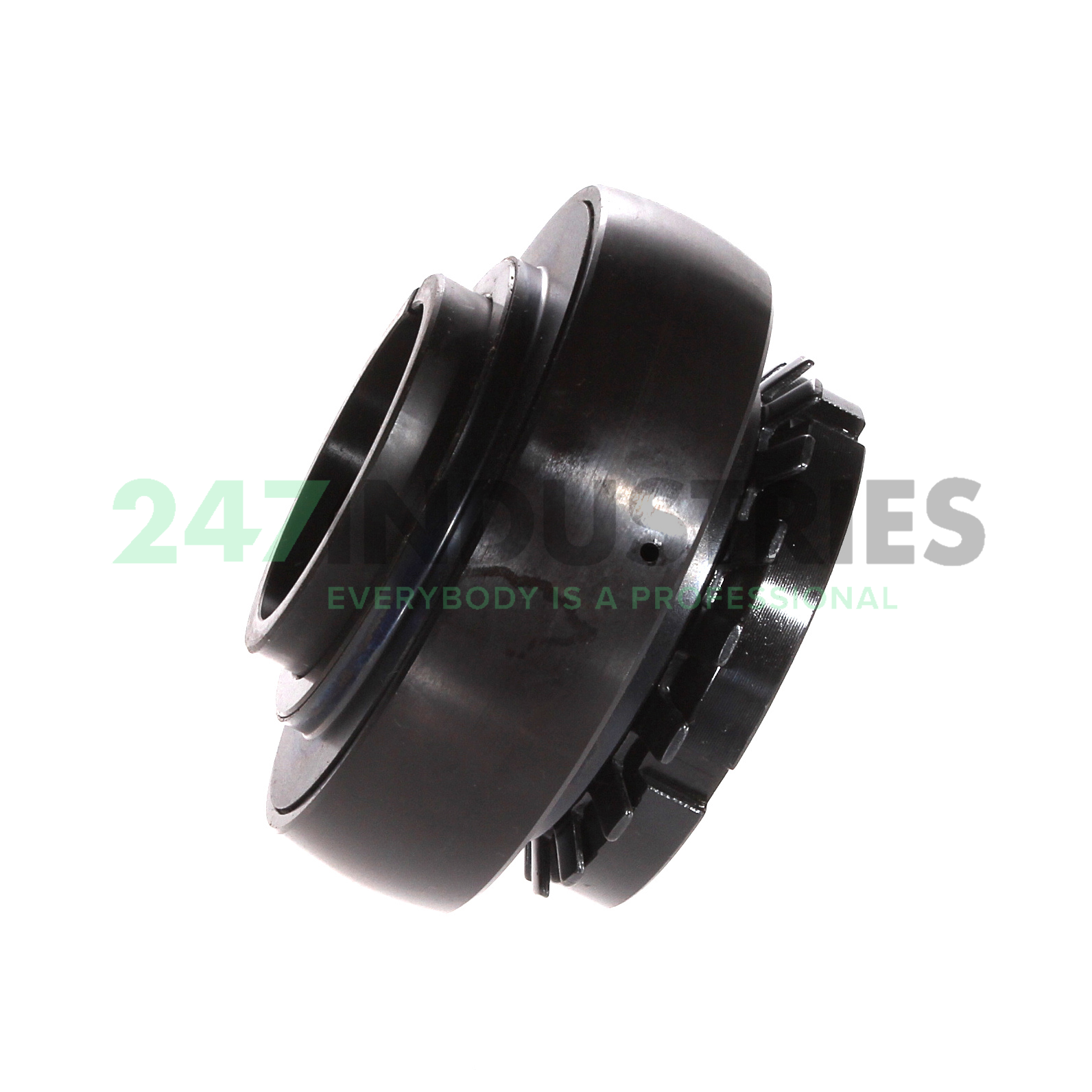

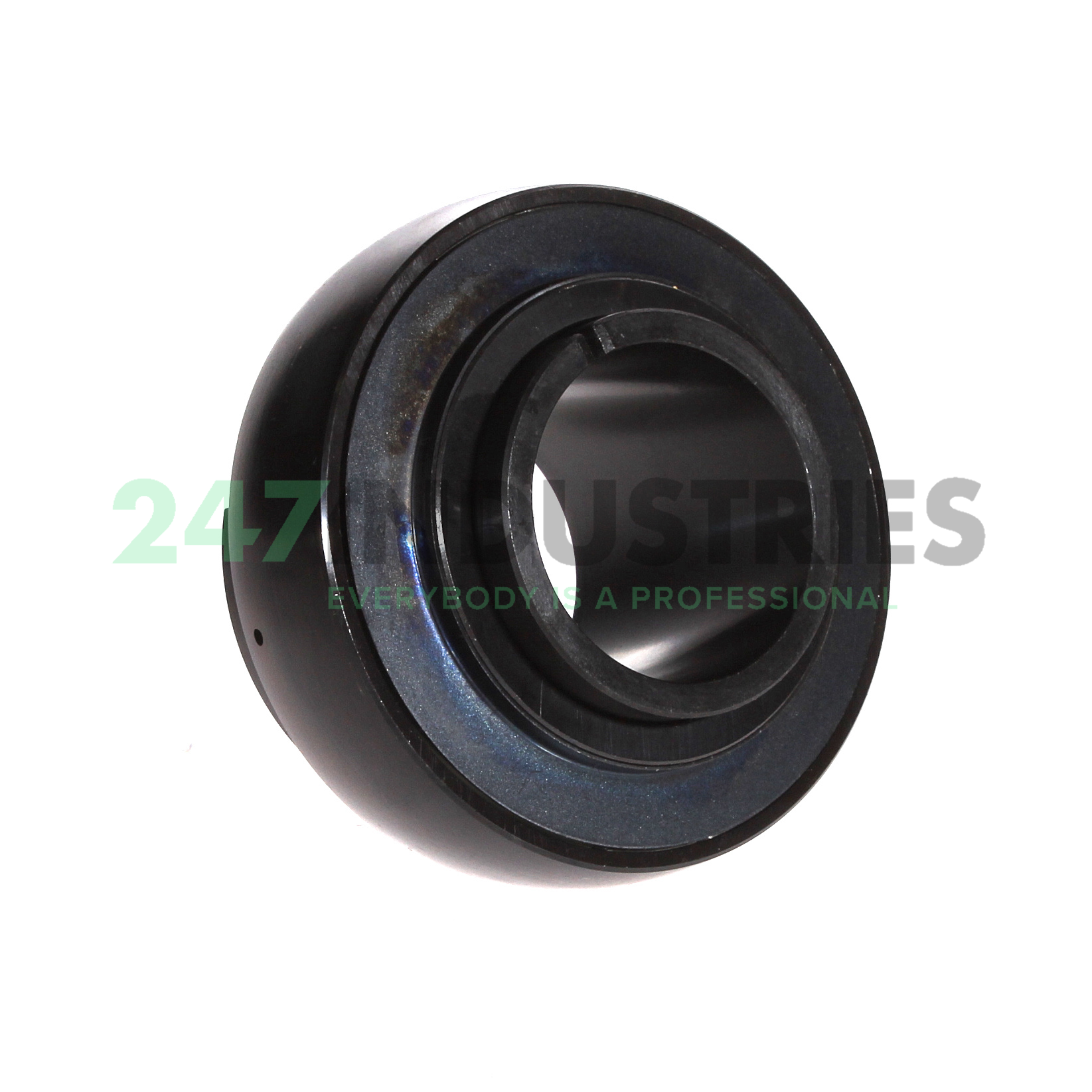

5. Medias description Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
