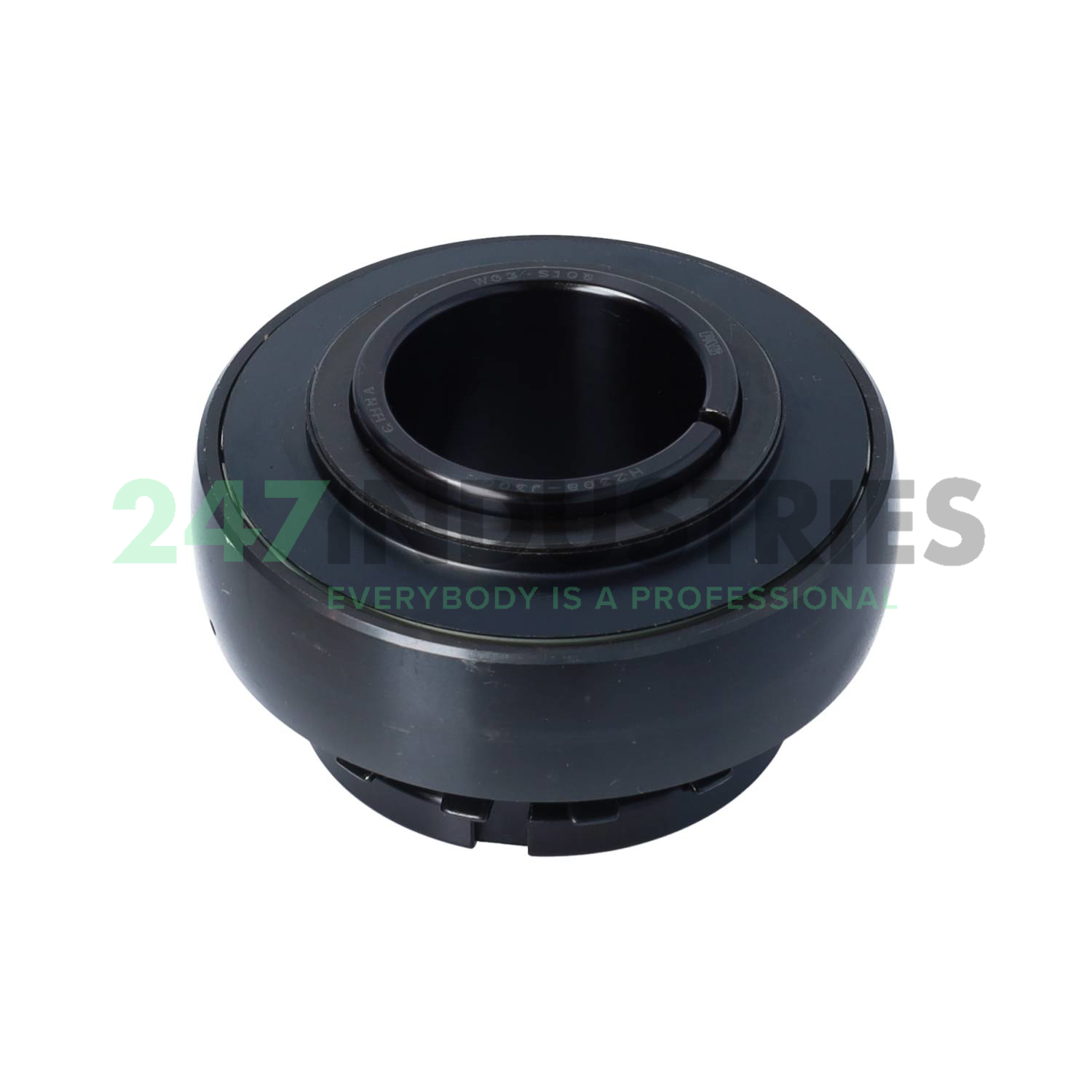

UK208 FAG

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 80
3. Width (B) MM 46
4. Inner (d) Inch 1.378
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.811
7. Outside diameter (D SP) mm 80
8. Width (b) mm 31
9. Locking collar total width (B 1) mm 46

Technical details

1. Availability 18 pcs
2. Brand FAG
3. Item number UK208 FAG
4. Also known as 0705800570000
   YSA208-2FK

5. EAN 4012802659085
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.71

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings UK, spherical outer ring, location by adapter sleeve, RSR seals on both sides
