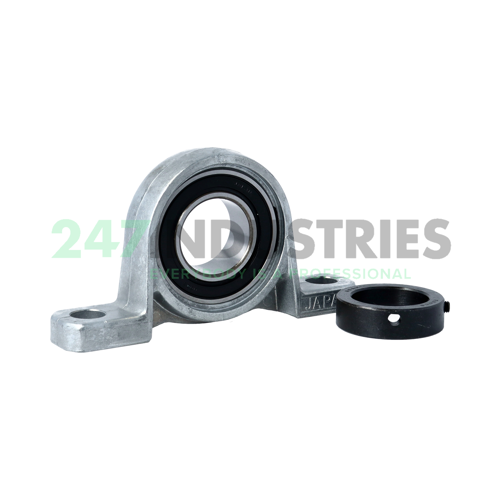

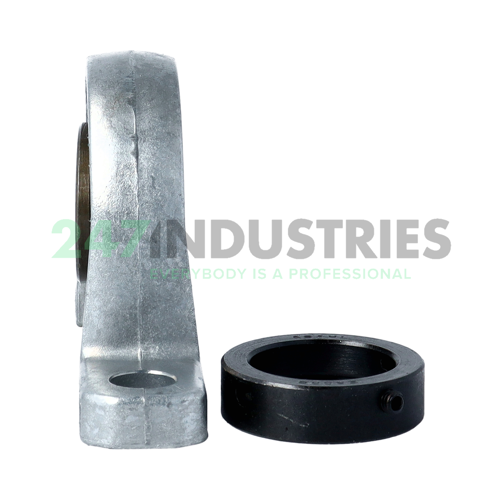

UDP006+ER Asahi

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 131,55
3. Width (B) MM 31
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 5.1791
6. Width (B) Inch 1.2205

Suffix description

1. ER Eccentric Ring

Technical details

1. Availability 0 pcs
2. Brand Asahi
3. Item number UDP006+ER Asahi
4. Also known as UD006+ER + P006

5. Category Housing and Bearing (assembly)

Weight and Dimensions

1. Weight (kg) 0.429

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment
