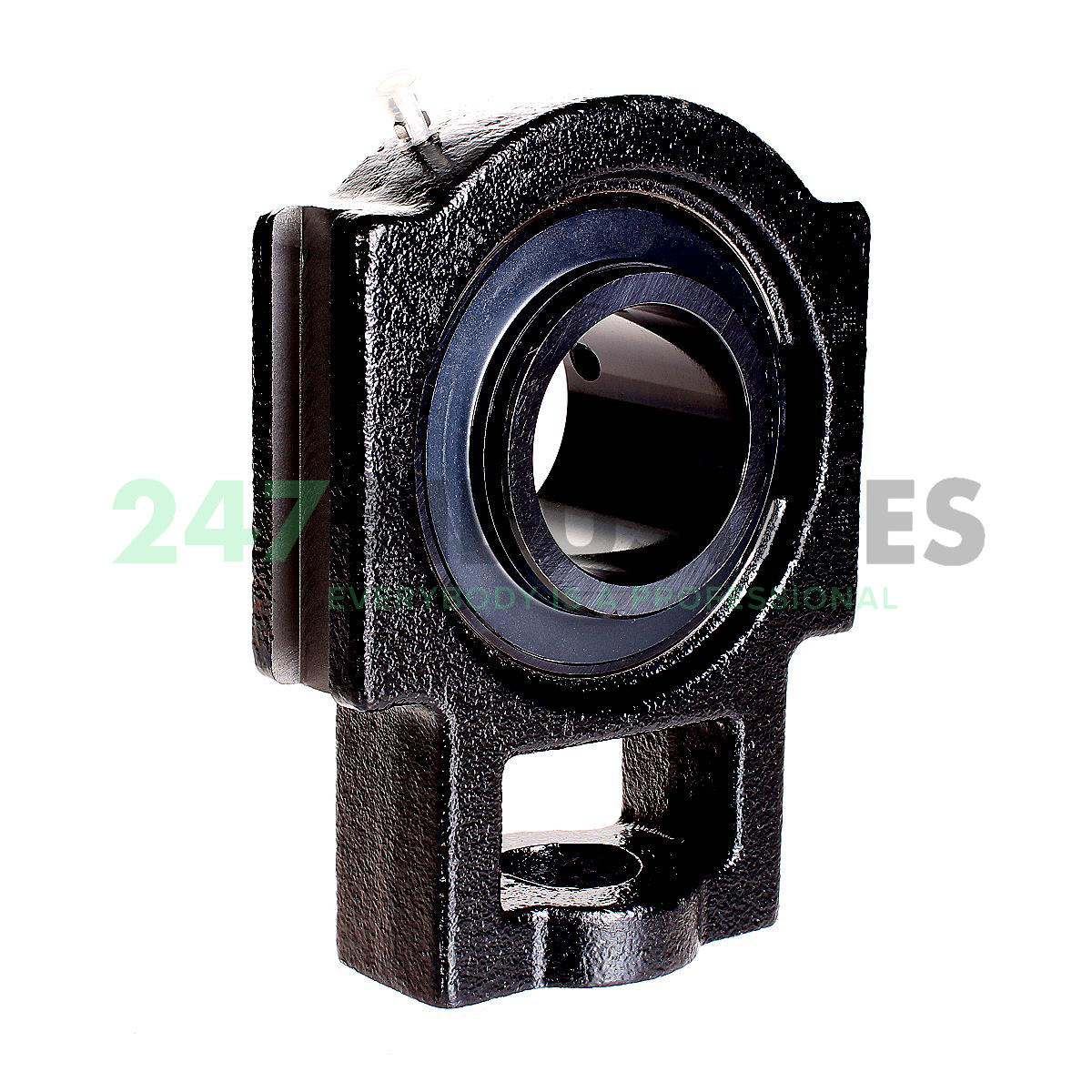

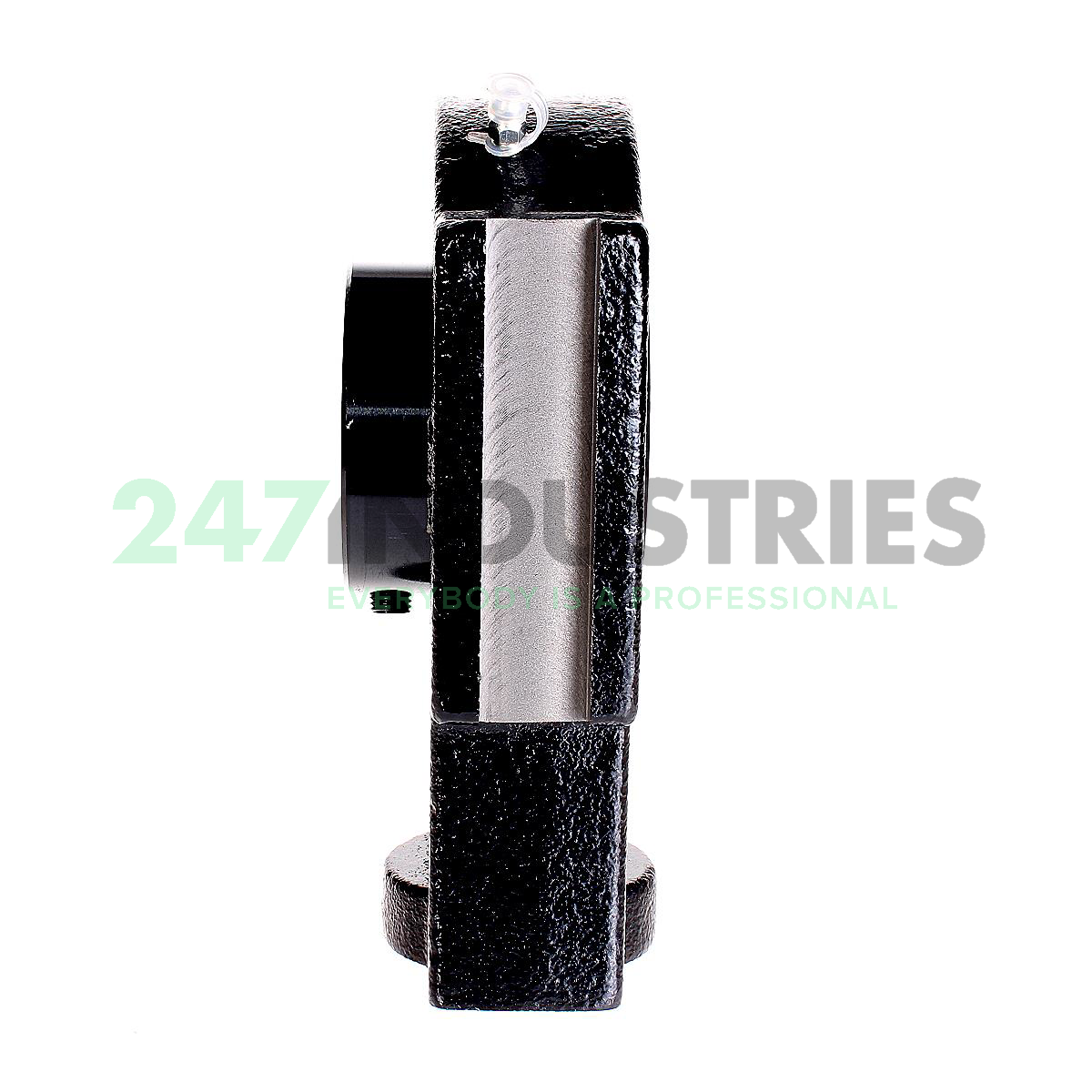

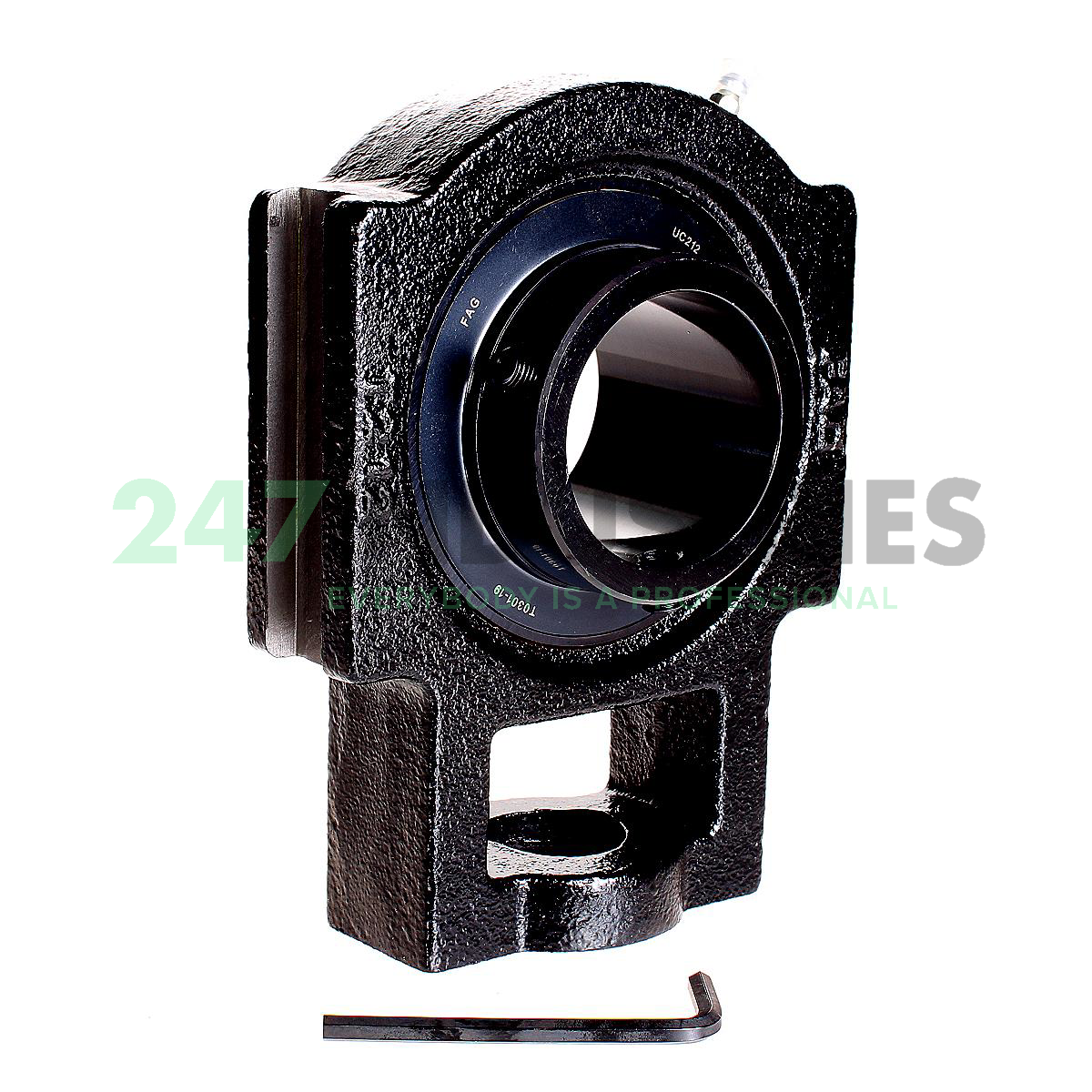

UCT212-J7 FAG

Name: UCT212-J7 FAG
Brand: FAG

€ 71,56 ex VAT

€ 86,59 in VAT

€ 71,56 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

UCT212-J7 FAG

Housing and Bearing (assembly)

Stock	14 pcs in stock and ready for shipment
Brand	FAG
Article number	UCT212-J7 FAG
Inside diameter	60mm
Outside diameter	194mm
Width	65,1mm

Product description

The UCT212-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: UCT212-J7 FAG

Loading similair products

Product specifications

Inside diameter 60mm
Outside diameter 194mm
Width 65,1mm

All dimensions

Inner (d) MM 60
Outer (D) MM 194
Width (B) MM 65,1
Inner (d) Inch 2.3622
Outer (D) Inch 7.6378
Width (B) Inch 2.563
Height (H) mm 146
Length total (L) mm 194

Suffix description

J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

Availability 14 pcs
Brand FAG
Item number UCT212-J7 FAG
Also known as 0822506500000
RTUEY60
TU60TF
UC212 + T212-J7
EAN 4054366900647
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 4.72

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion
