UCT207-23-J7 FAG

Housing and Bearing (assembly)

Stock
12 pcs in stock and ready for shipment
Brand FAG
Article number UCT207-23-J7 FAG
Inside diameter 36,51mm
Outside diameter 129mm
Width 42,9mm
Product description

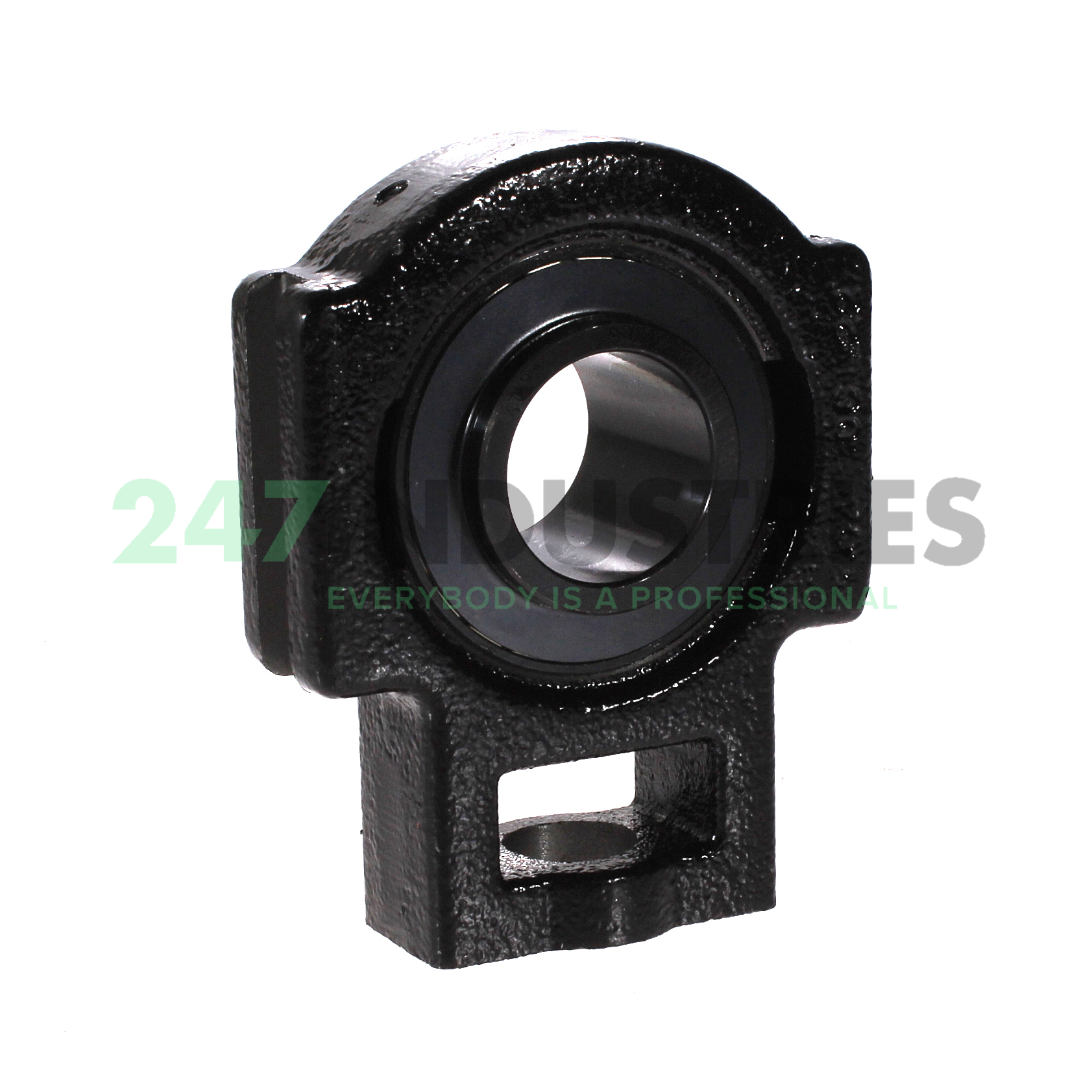

The UCT207-23-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: UCT207-23-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 36,51
  2. Outer (D) MM 129
  3. Width (B) MM 42,9
  4. Inner (d) Inch 1.4375
  5. Outer (D) Inch 5.0787
  6. Width (B) Inch 1.689
  7. Height (H) mm 102
  8. Length total (L) mm 129

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 12 pcs
  2. Brand FAG
  3. Item number UCT207-23-J7 FAG
  4. Also known as 0822261050000
    TU1.7/16TF
    UC207-23 + T207
    YAR207-107-2F + TU507U
  5. EAN 4054366899774
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.41

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-03
  2. ECLASS2 number 23-05-16-03
  3. Medias description Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion
