UCT204-12-J7 FAG

€ 22,94 ex VAT
€ 27,76 incl. VAT
€ 27,76 incl. VAT
€ 22,94 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

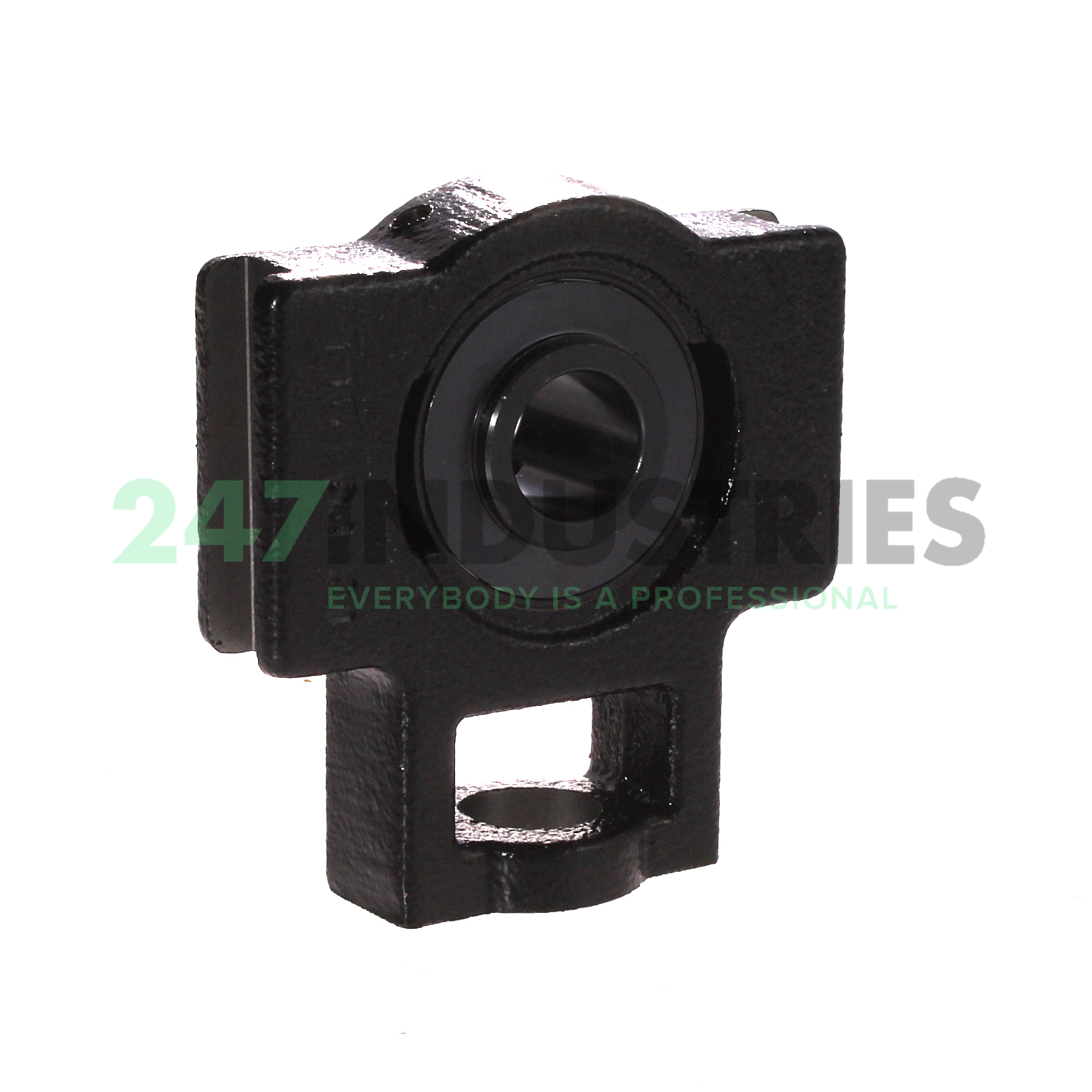

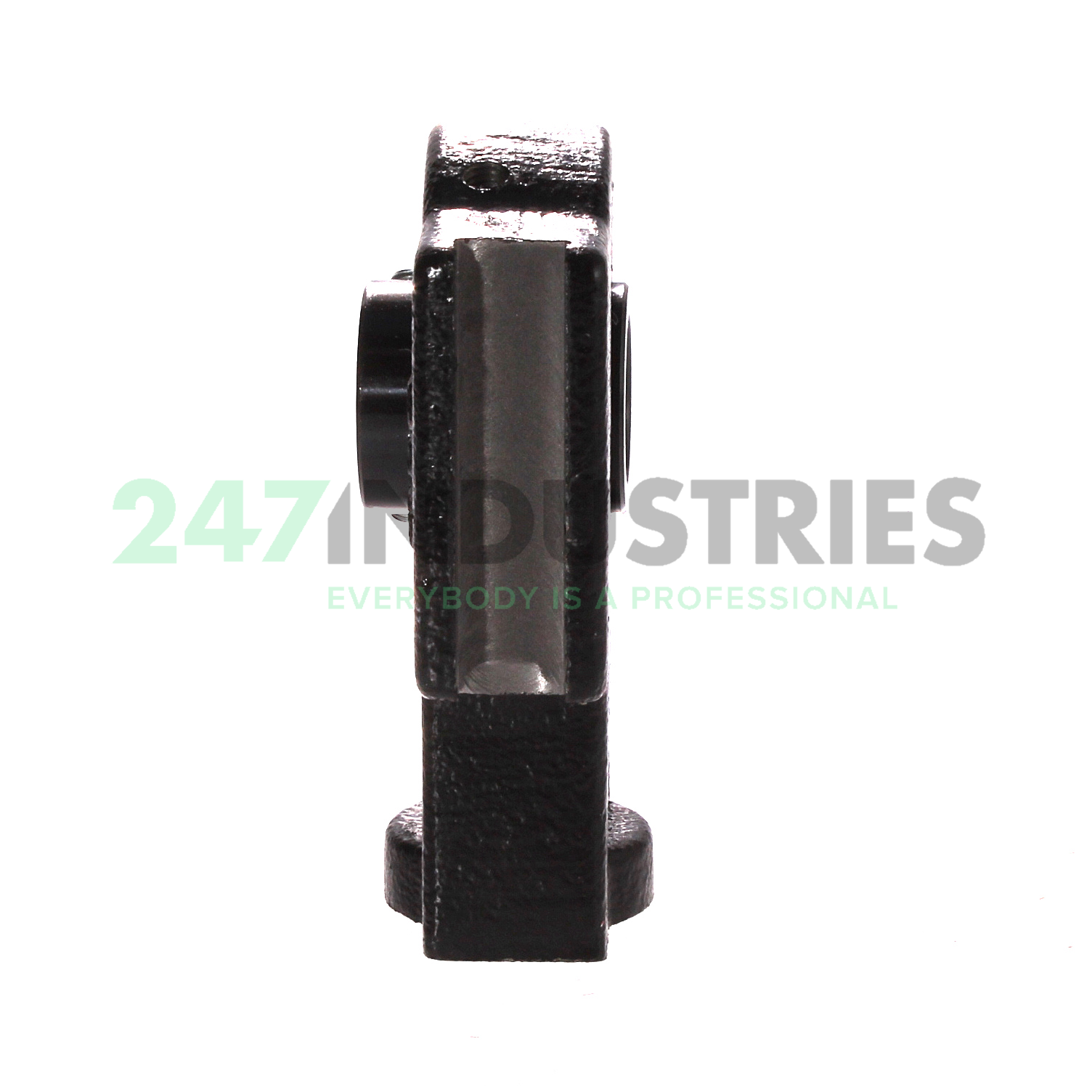

UCT204-12-J7 FAG

Housing unit

Stock
10 pcs in stock and ready for shipment
Brand FAG
Article number UCT204-12-J7 FAG
Inside diameter 19,05mm
Outside diameter 94,00mm
Width 31,00mm
Product description

The UCT204-12-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCT204-12-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 19,05
  2. Outer (D) MM 94,00
  3. Width (B) MM 31,00
  4. Inner (d) Inch 0.7500
  5. Outer (D) Inch 3.7008
  6. Width (B) Inch 1.2205
  7. Height (H) mm 89,00
  8. Length total (L) mm 94,00

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 10 pcs
  2. Brand FAG
  3. Item number UCT204-12-J7 FAG
  4. Also known as 0821605380000
    TU3/4TF
    UC204-12J + T204
    YAR204-012-2F + TU504M
  5. EAN 4047643337267
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.73

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-03
  2. ECLASS2 number 23-05-16-03
  3. Medias description Housing units UCT, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for linear motion

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
