UCPA205-15-J7 FAG

€ 20,56 ex VAT
€ 24,88 in VAT
€ 24,88 in VAT
€ 20,56 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

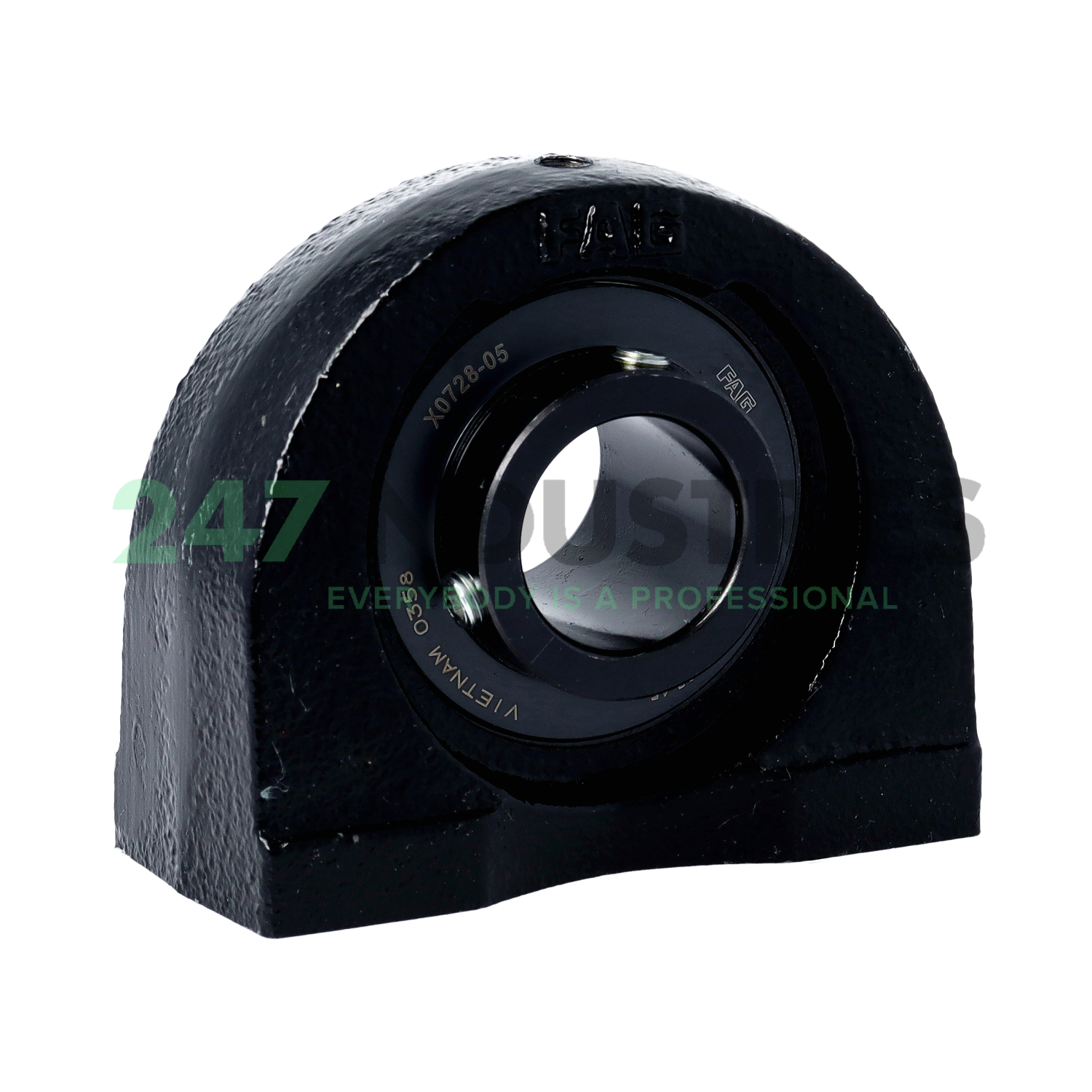

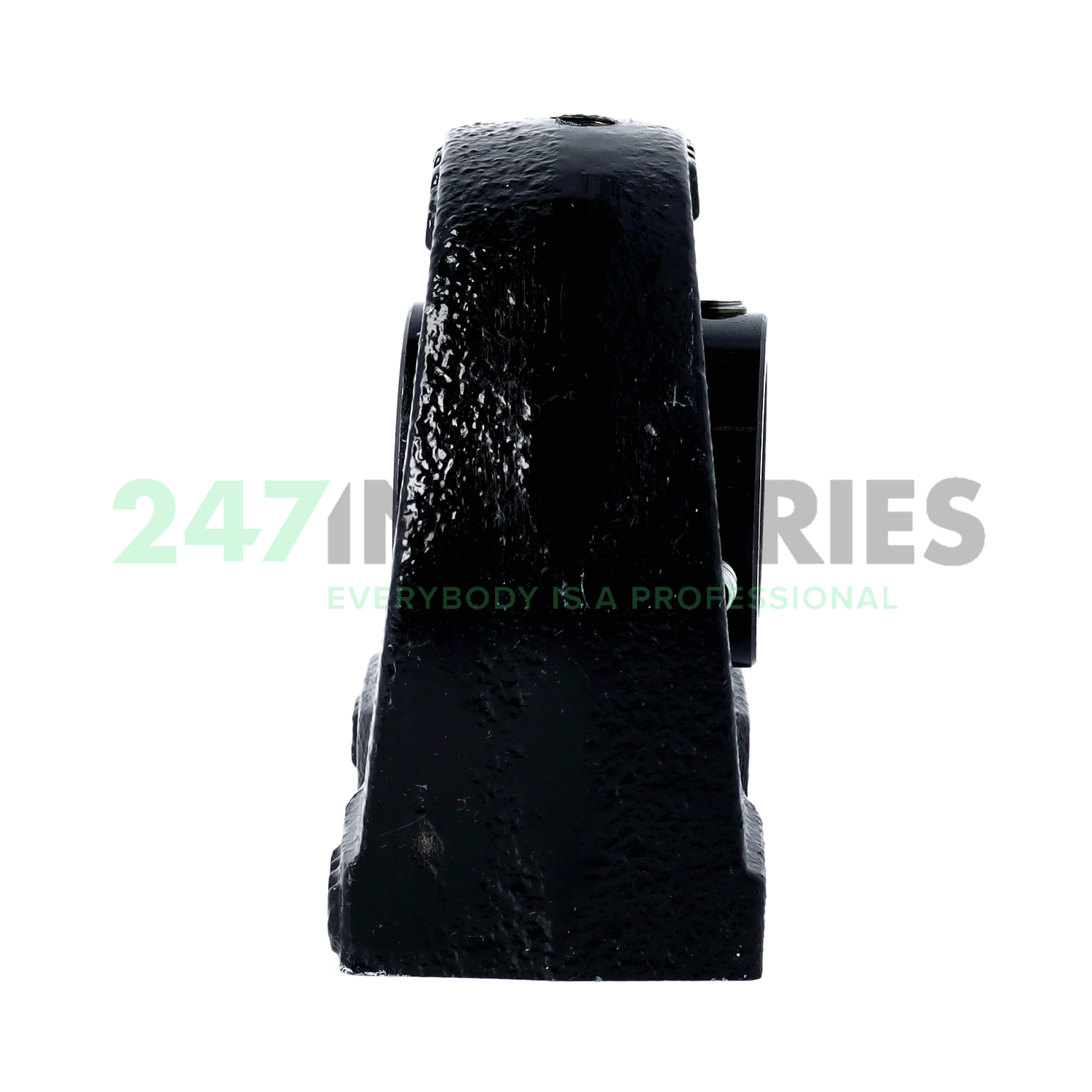

UCPA205-15-J7 FAG

Housing and Bearing (assembly)

Stock
10 pcs in stock and ready for shipment
Brand FAG
Article number UCPA205-15-J7 FAG
Inside diameter 23,81mm
Outside diameter 84mm
Width 38mm
Product description

The UCPA205-15-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCPA205-15-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 23,81
  2. Outer (D) MM 84
  3. Width (B) MM 38
  4. Inner (d) Inch 0.9375
  5. Outer (D) Inch 3.3071
  6. Width (B) Inch 1.4961
  7. Length total (L) mm 84
  8. Height (H 2) mm 72

Suffix description

  1. 15 15/16" Bore
  2. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 10 pcs
  2. Brand FAG
  3. Item number UCPA205-15-J7 FAG
  4. Also known as 0821730010000
    UC205-15 + PA205-J7
  5. EAN 4054366899064
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.83

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UCPA, cast iron housing, with short base, radial insert ball bearing with grub screws in inner ring, RSR seals

Downloads and links

  1. Link to manufacturer Link to manufacturer
