UCP207-20-J7 FAG

Housing and Bearing (assembly)

Stock
22 pcs in stock and ready for shipment
Brand FAG
Article number UCP207-20-J7 FAG
Inside diameter 31,75mm
Outside diameter 166,69mm
Width 47,63mm
Product description

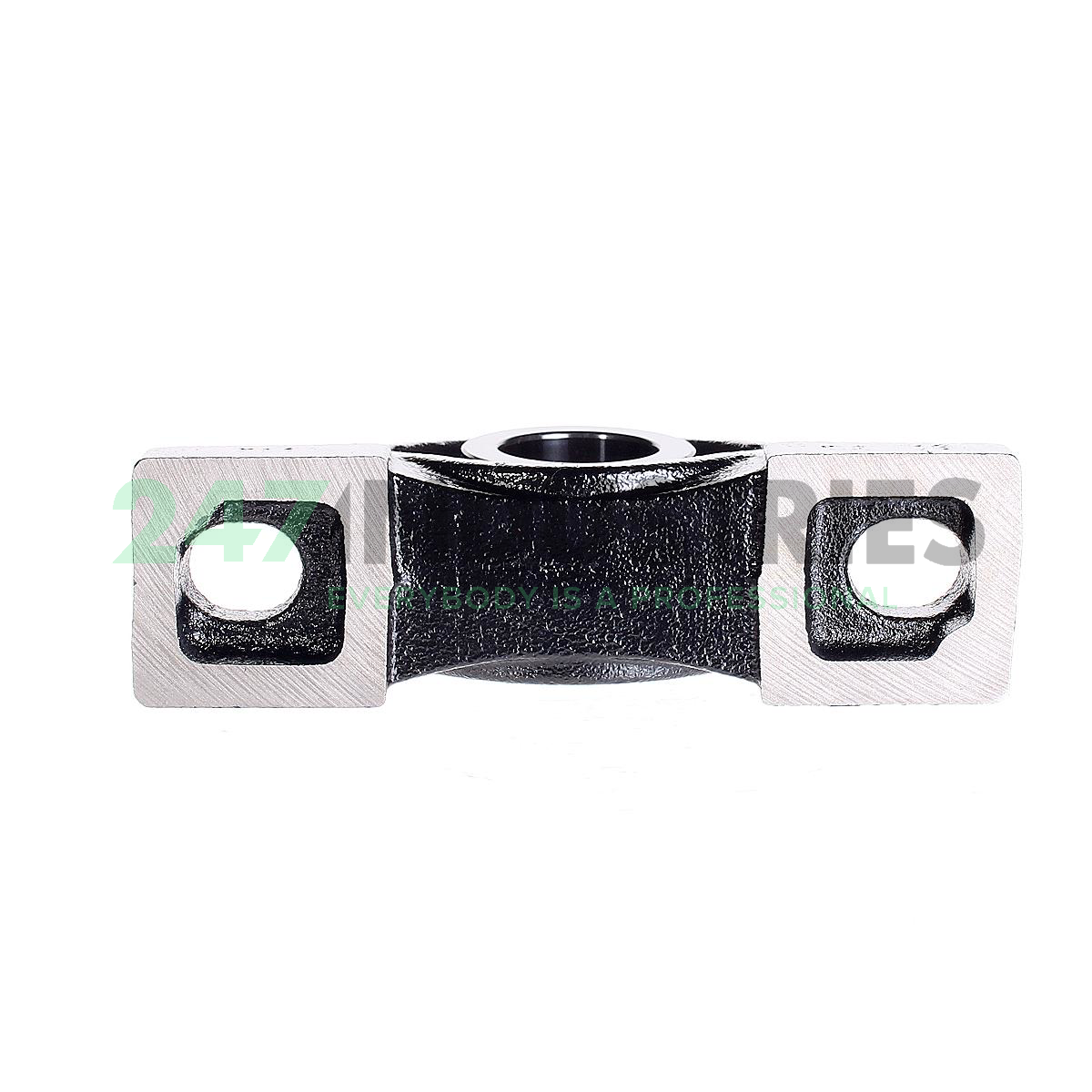

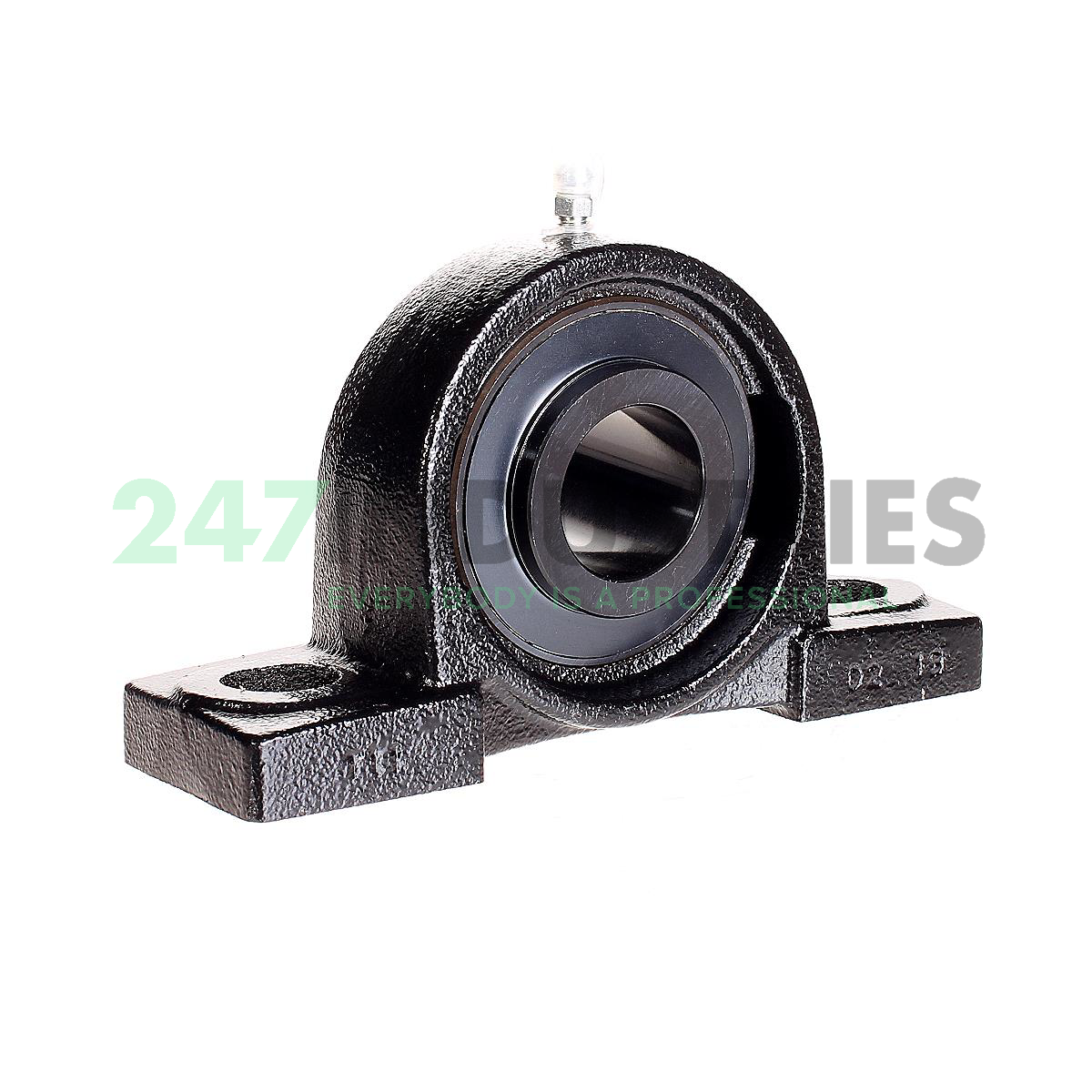

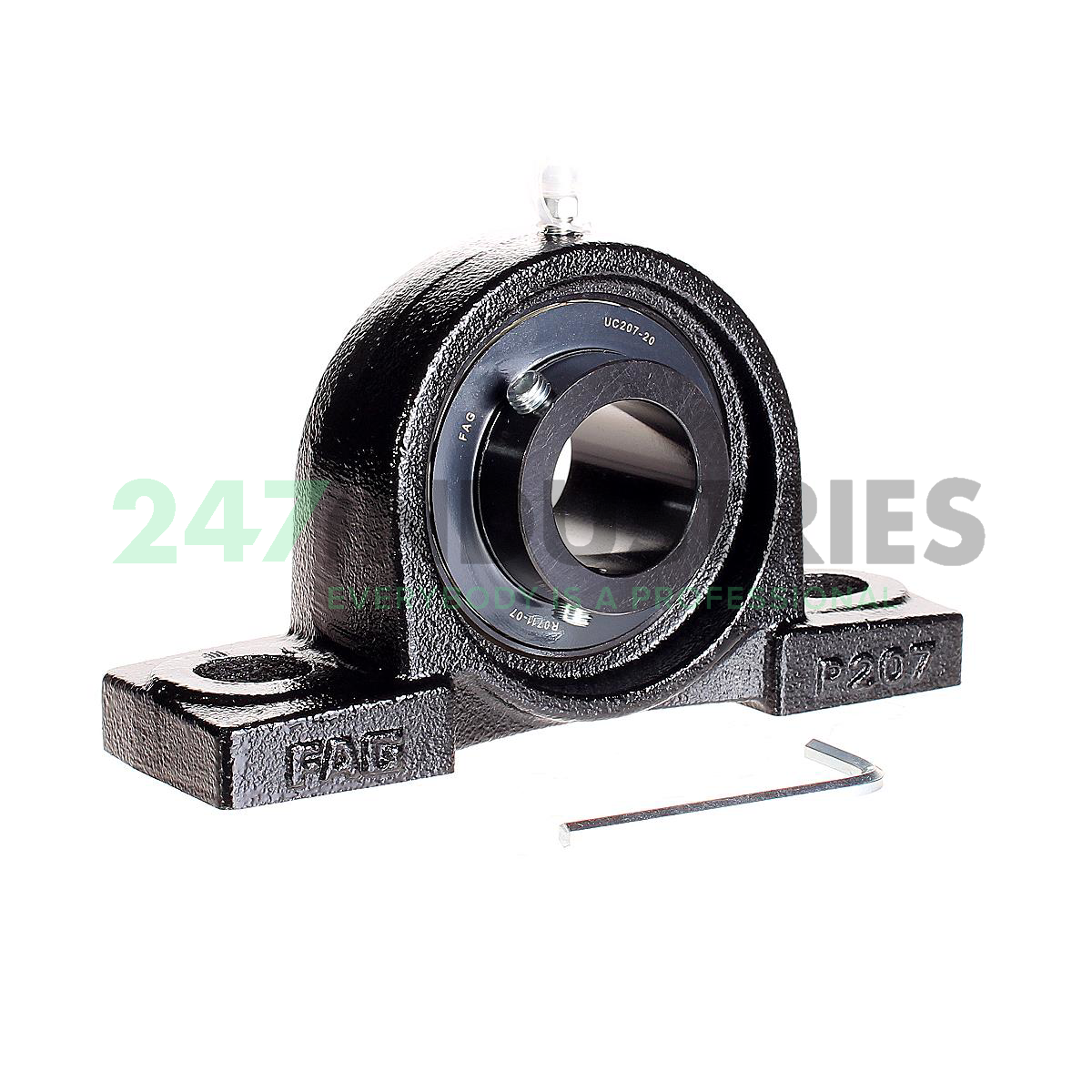

The UCP207-20-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: UCP207-20-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 31,75
  2. Outer (D) MM 166,69
  3. Width (B) MM 47,63
  4. Inner (d) Inch 1.25
  5. Outer (D) Inch 6.5625
  6. Width (B) Inch 1.875
  7. Length total (L) mm 167
  8. Height (H 2) mm 93

Suffix description

  1. 20 1.1/4" Bore
  2. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 22 pcs
  2. Brand FAG
  3. Item number UCP207-20-J7 FAG
  4. Also known as 0812152070000
    SYJ1.1/4TF
    UC207-20 + P207-J7
    YAR207-104-2F + SYJ507
  5. EAN 4047643262118
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.64

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units UCP, cast iron housing, with long base, radial insert ball bearing with grub screws in inner ring, RSR seals
