UCFL202-J7 FAG

Housing and Bearing (assembly)

Stock
38 pcs in stock and ready for shipment
Brand FAG
Article number UCFL202-J7 FAG
Inside diameter 15mm
Outside diameter 113mm
Width 33,3mm
Product description

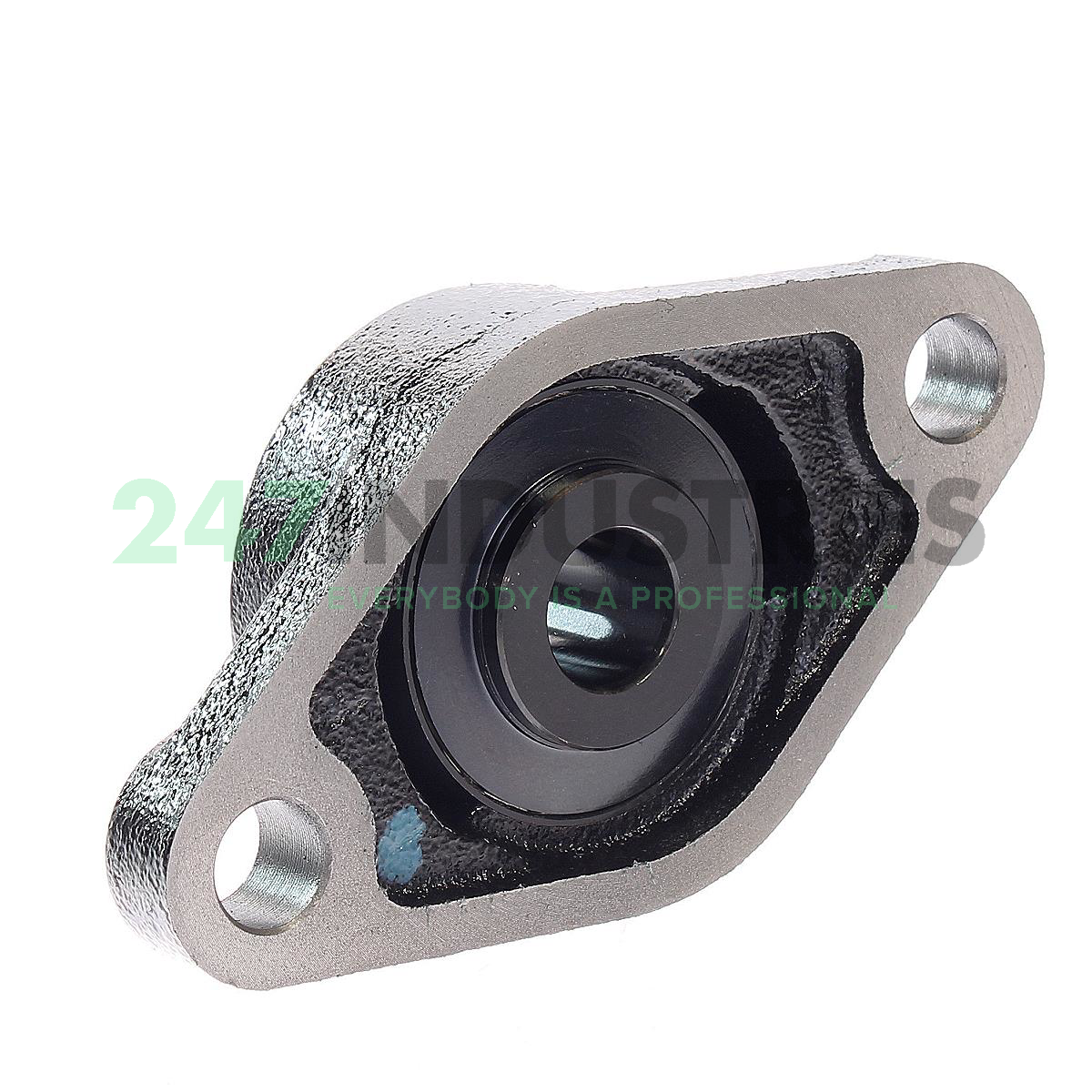

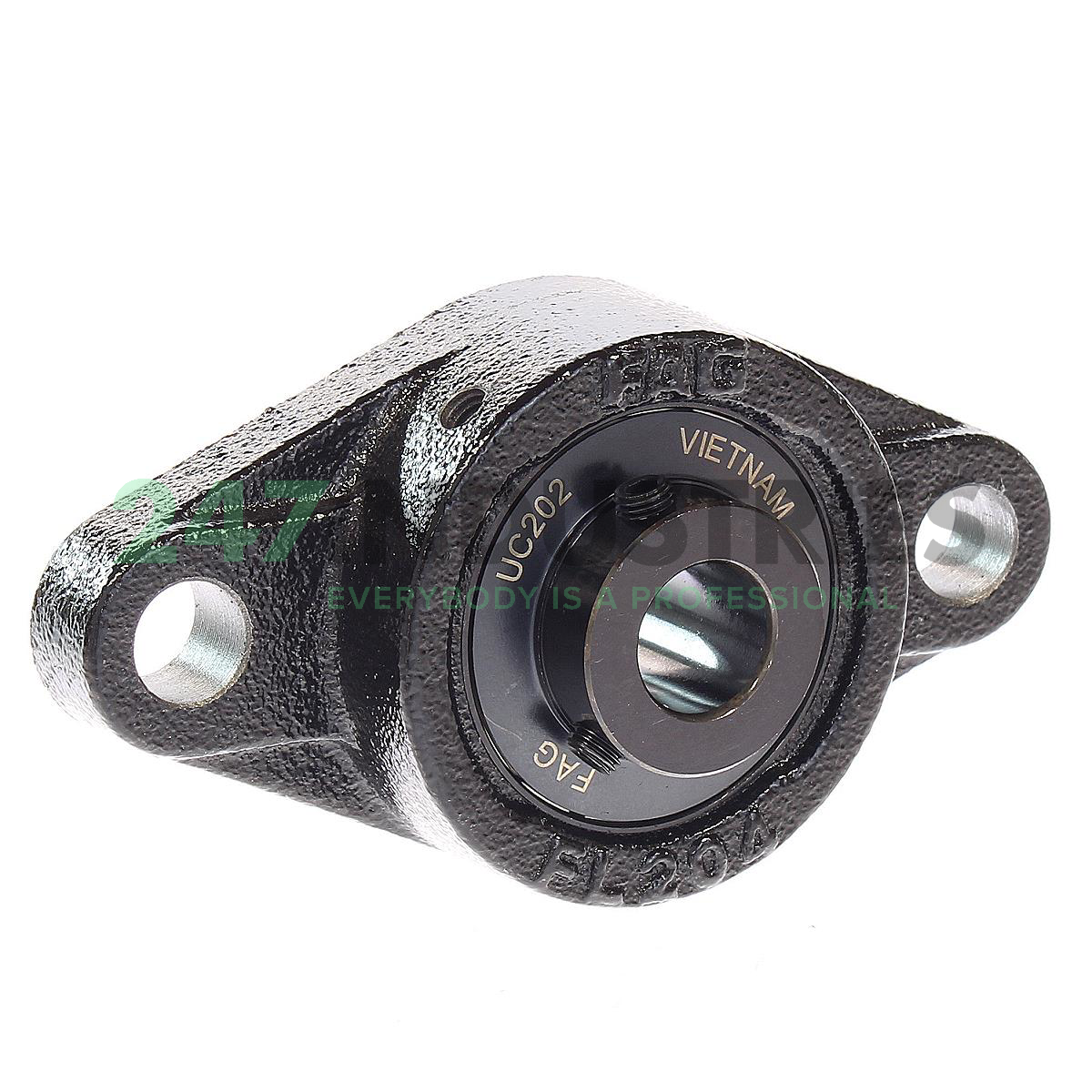

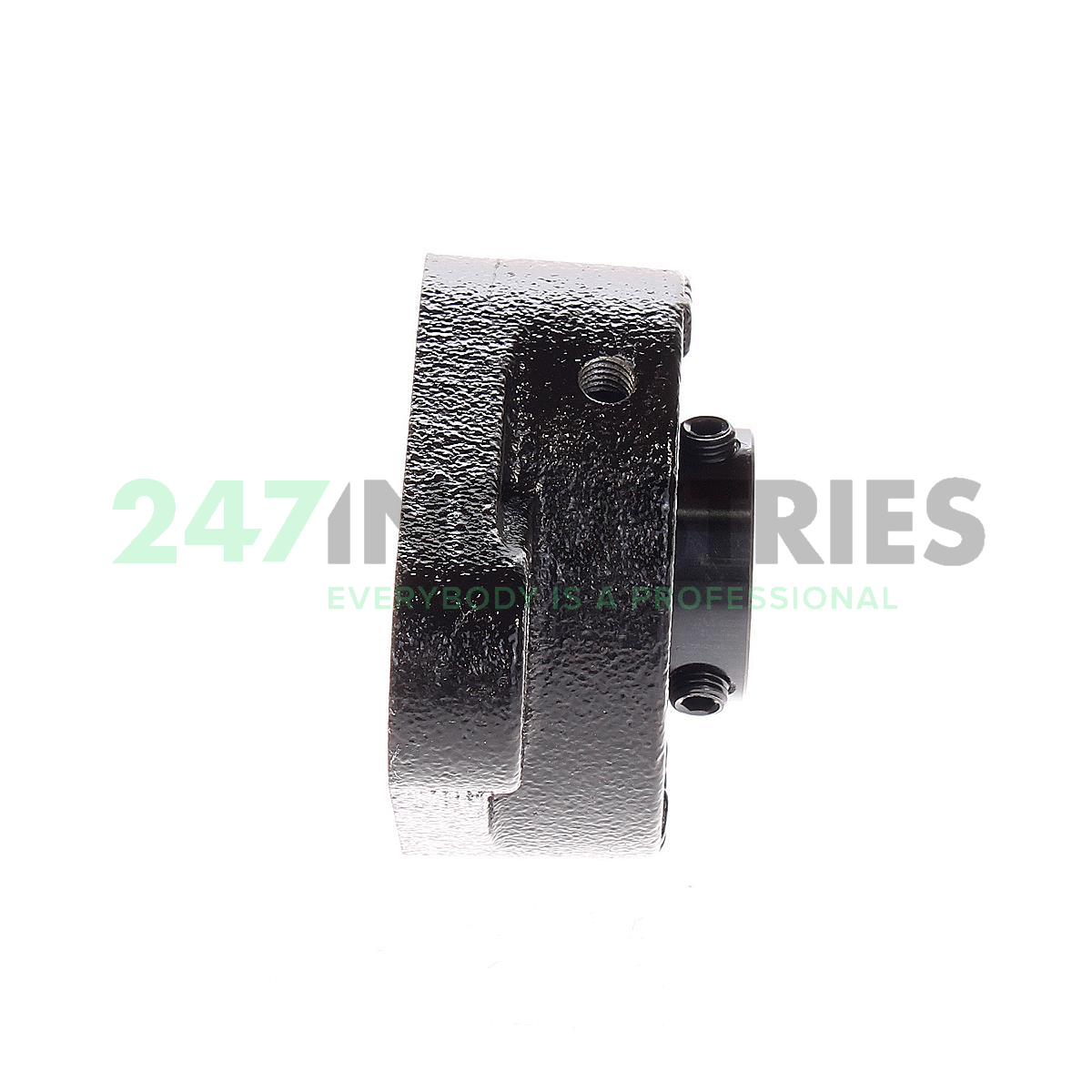

The UCFL202-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCFL202-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 15
  2. Outer (D) MM 113
  3. Width (B) MM 33,3
  4. Inner (d) Inch 0.5906
  5. Outer (D) Inch 4.4488
  6. Width (B) Inch 1.311
  7. Flange width (L) mm 60
  8. Height flange (H) mm 113
  9. Total height unit (U) mm 33,3

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 38 pcs
  2. Brand FAG
  3. Item number UCFL202-J7 FAG
  4. Also known as 0821594910000
    FYTBJ15TF
    UC202 + FL204-J7
  5. EAN 4047643337137
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.46

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Flanged housing unit UCFL
