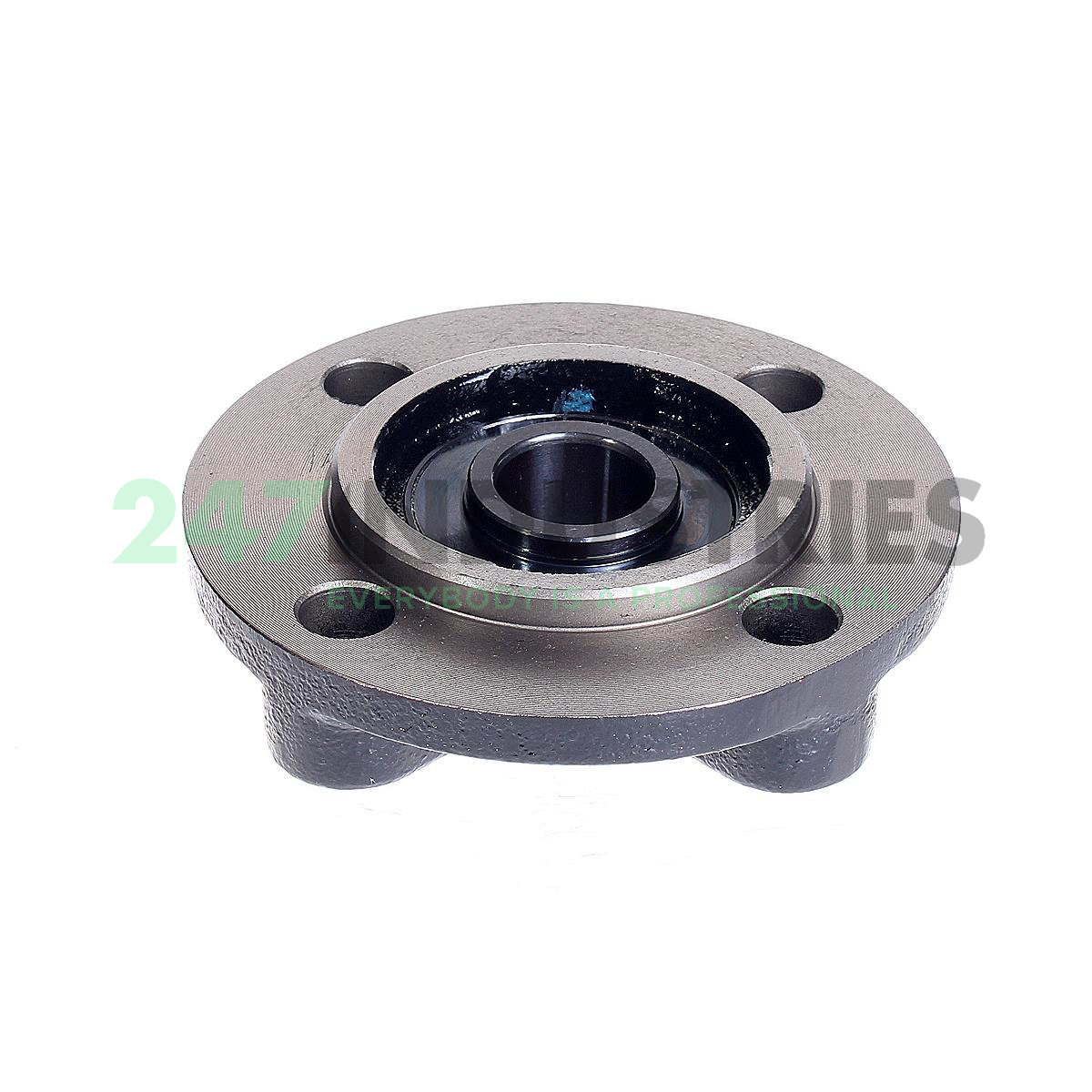

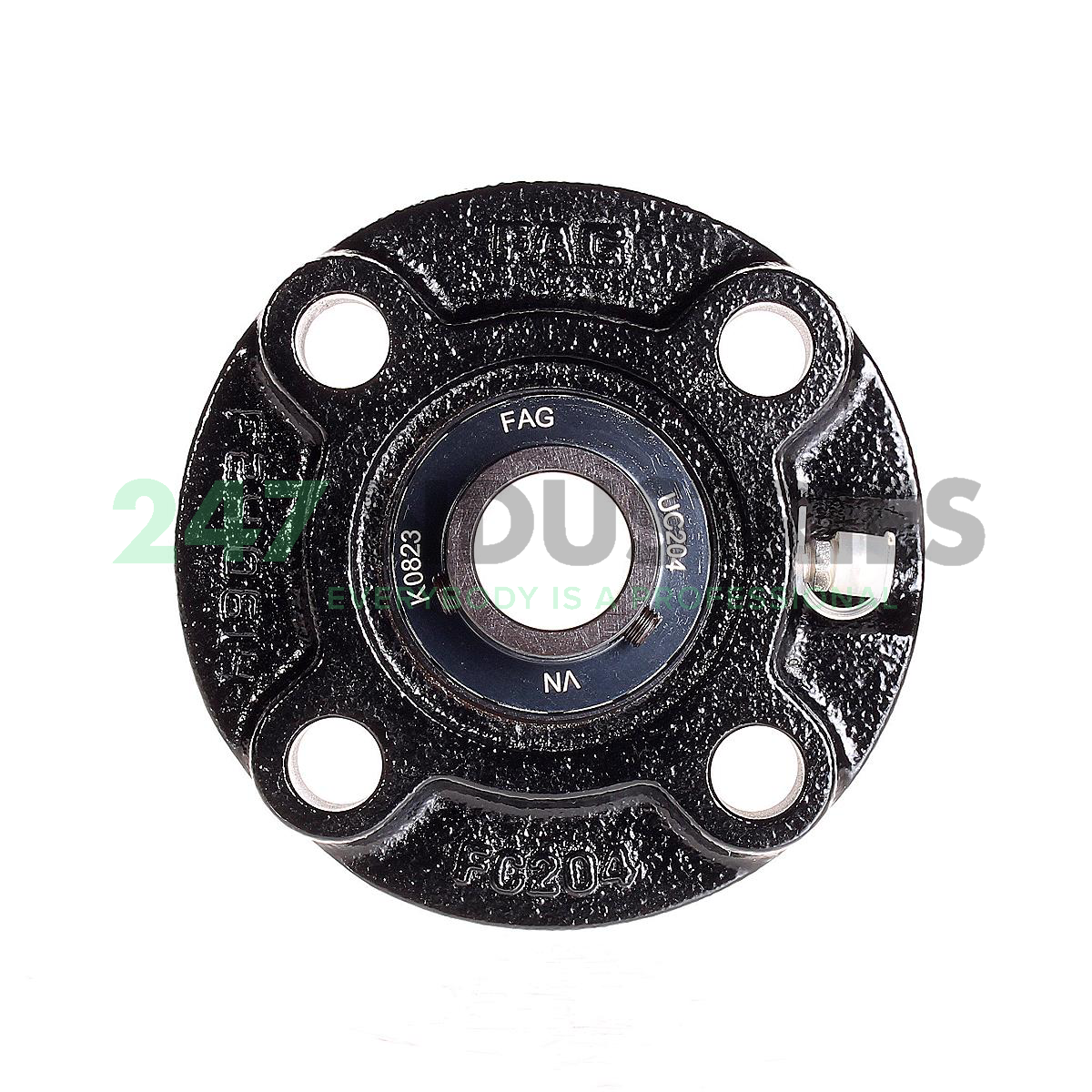

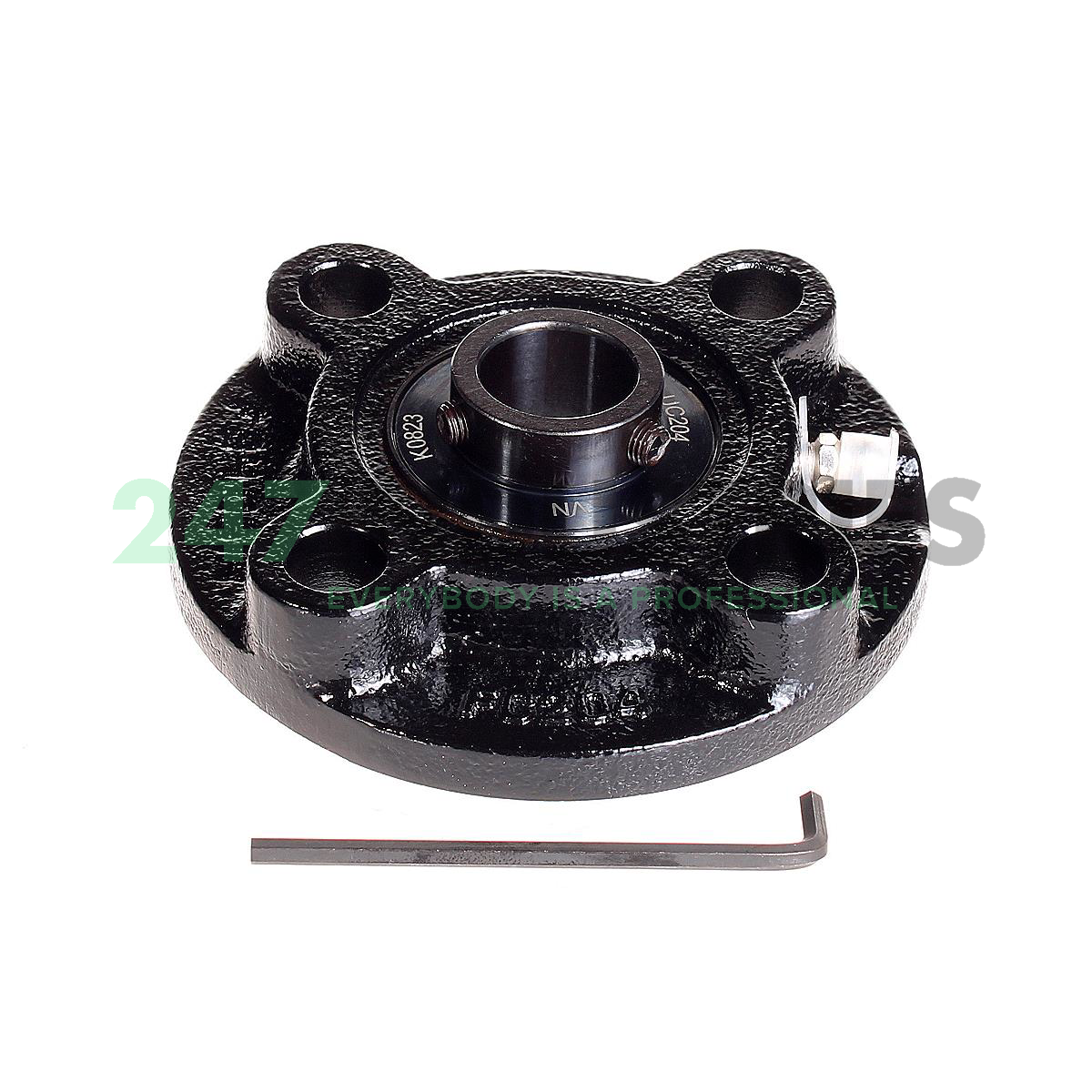

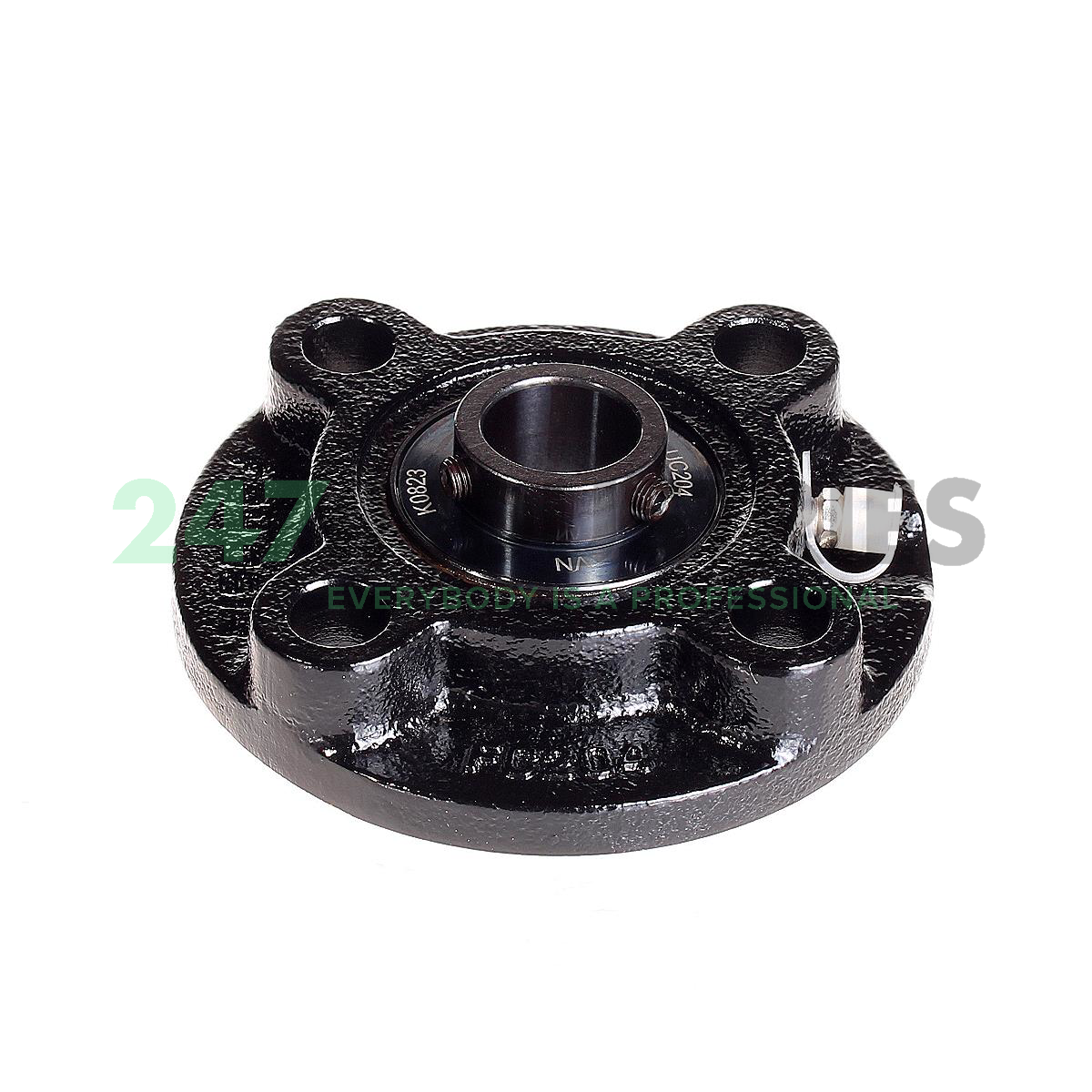

UCFC204-J7 FAG

Housing unit

Stock
224 pcs in stock and ready for shipment
Brand FAG
Article number UCFC204-J7 FAG
Inside diameter 20,00mm
Outside diameter 100,00mm
Width 31,00mm
Product description

The UCFC204-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCFC204-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20,00
  2. Outer (D) MM 100,00
  3. Width (B) MM 31,00
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.9370
  6. Width (B) Inch 1.2205
  7. Height flange (H) mm 100,00
  8. Total height unit (U) mm 28,30

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 224 pcs
  2. Brand FAG
  3. Item number UCFC204-J7 FAG
  4. Also known as 0821636690000
    56204 + FC204
    FC56204
    FYC20TF
    GYE20-KRR-B + GG.ME04-N
    UC204 + FC204-J7
    YAR204-2F + FYC504
  5. EAN 4047643337496
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.735

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. Basic static load rating, radial (C 0r) "6600.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCFC
