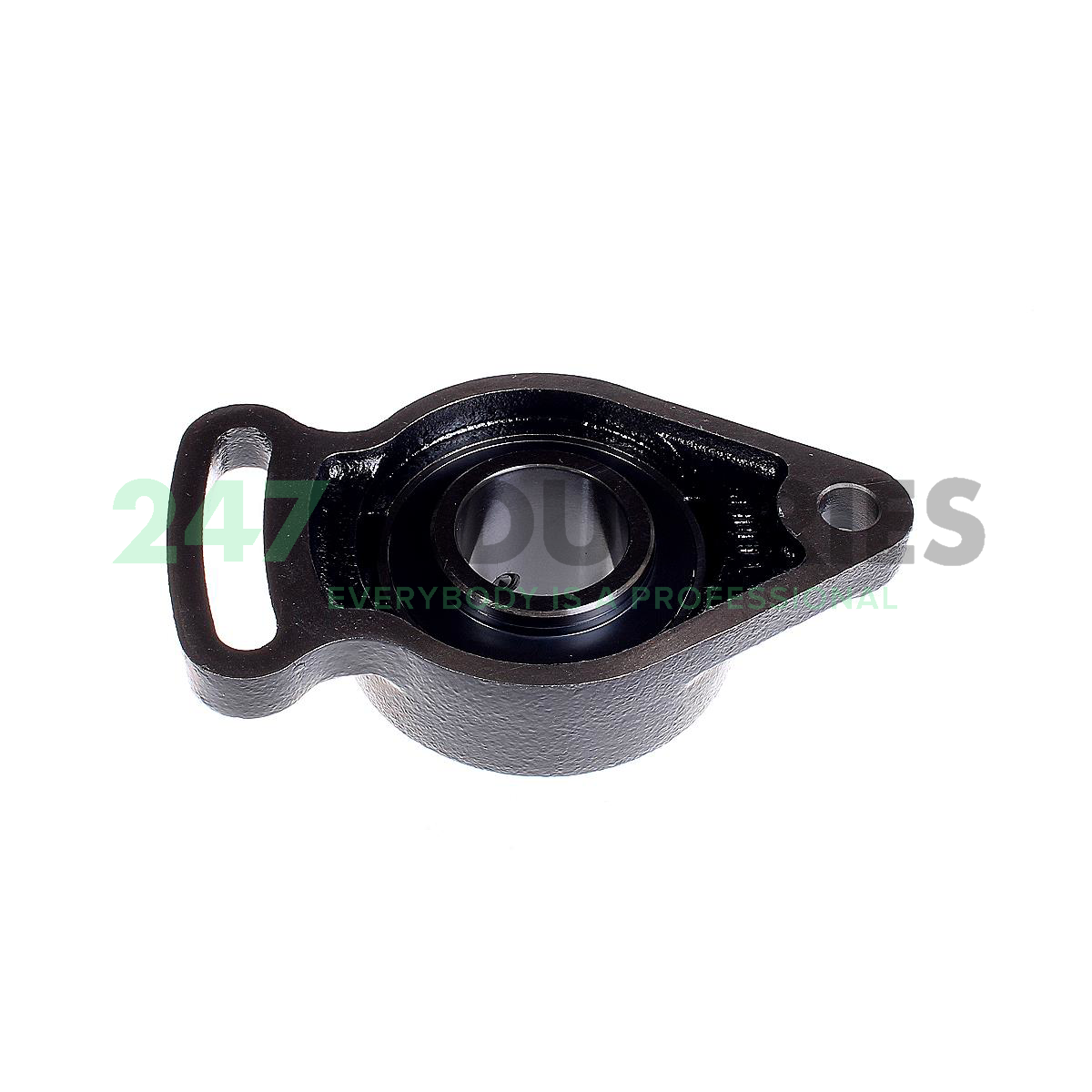

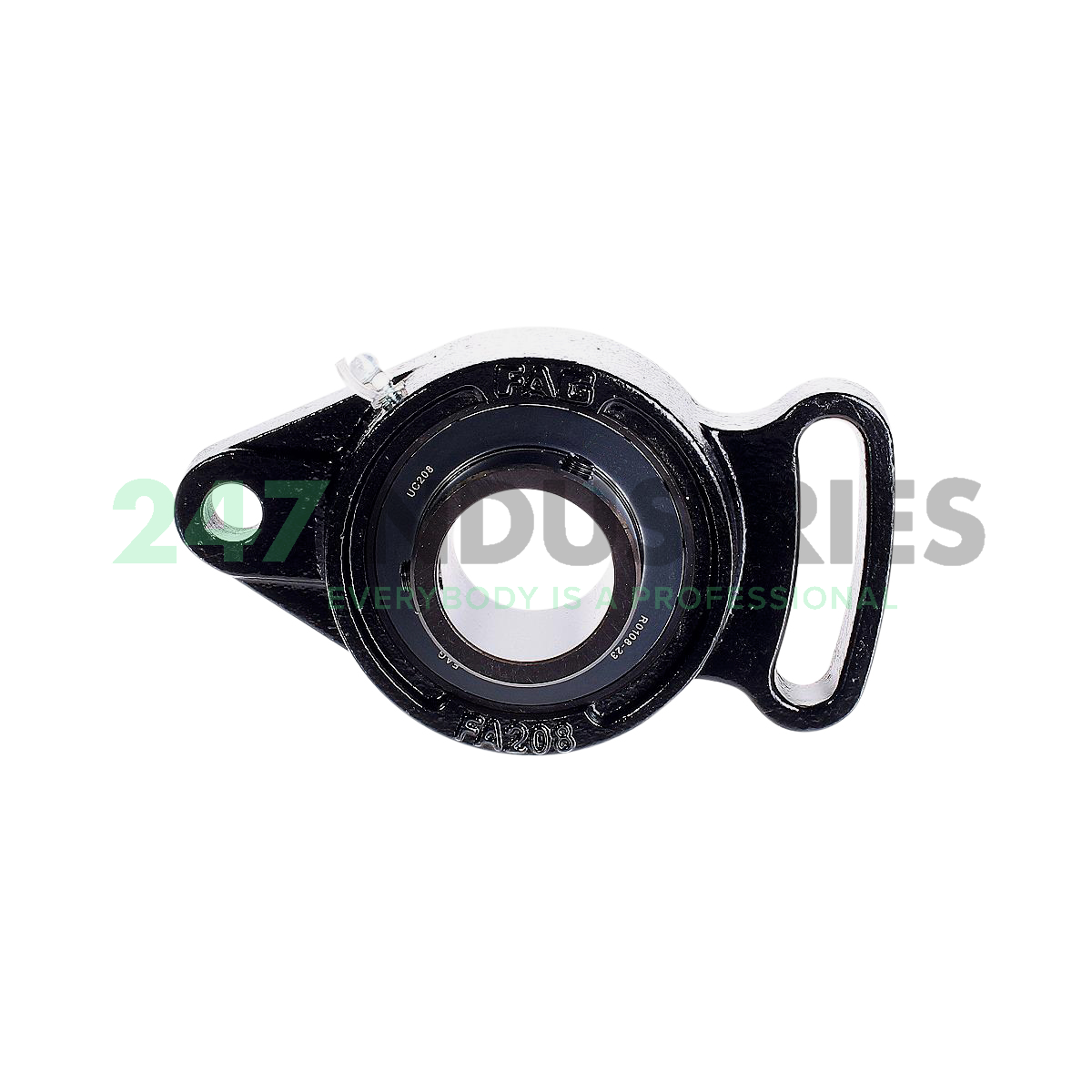

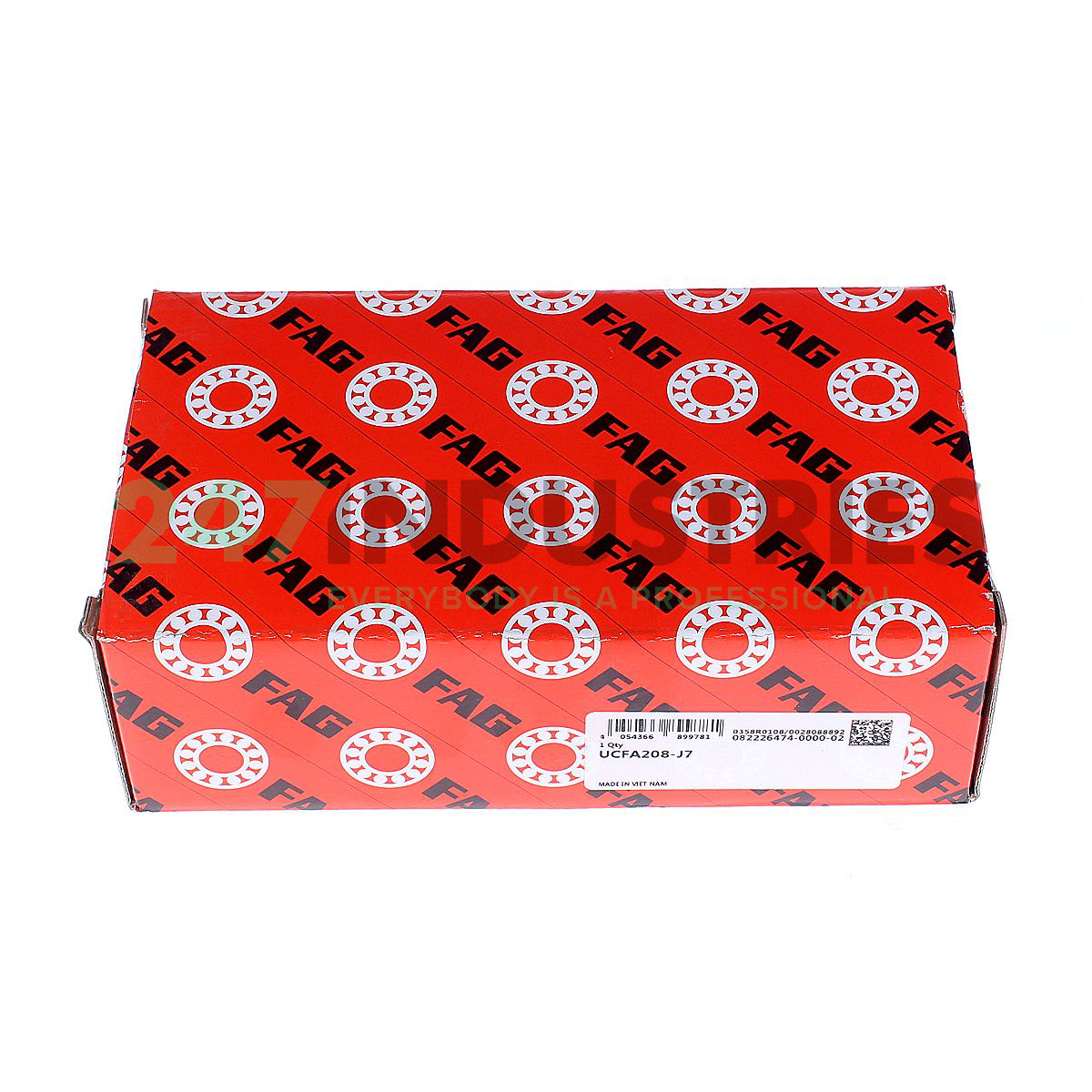

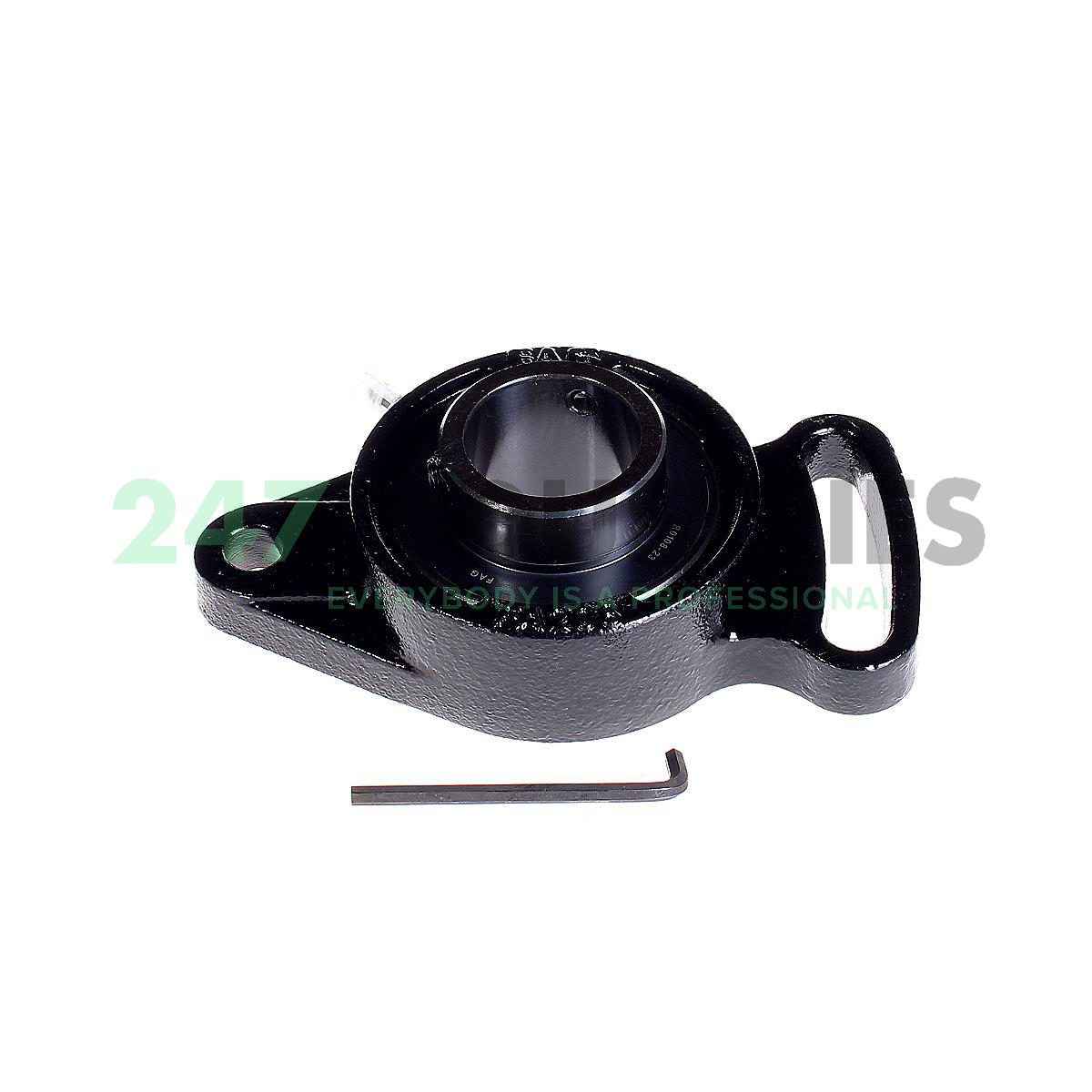

UCFA208-J7 FAG

Name: UCFA208-J7 FAG
Brand: FAG

€ 29,07 ex VAT

€ 35,17 in VAT

€ 29,07 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

UCFA208-J7 FAG

Housing and Bearing (assembly)

Stock	3 pcs in stock and ready for shipment
Brand	FAG
Article number	UCFA208-J7 FAG
Inside diameter	40mm
Outside diameter	171mm
Width	51,2mm

Product description

The UCFA208-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Downloads and links

Link to manufacturer

Similar to: UCFA208-J7 FAG

Loading similair products

Product specifications

Inside diameter 40mm
Outside diameter 171mm
Width 51,2mm

All dimensions

Inner (d) MM 40
Outer (D) MM 171
Width (B) MM 51,2
Inner (d) Inch 1.5748
Outer (D) Inch 6.7323
Width (B) Inch 2.0157
Length total (L) mm 175
Total height unit (U) mm 51,2

Suffix description

J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

Availability 3 pcs
Brand FAG
Item number UCFA208-J7 FAG
Also known as 0822264740000
EAN 4054366899781
Category Housing and Bearing (assembly)

Weight and Dimensions

Weight (kg) 1.82

Product Properties

Seal 2F - Standard Seal for Y-bearings
Lubrication Standard Lubrication
Special Treatment No Special Treatment

Data from Schaeffler (medias)

ECLASS number 23-05-16-03
ECLASS2 number 23-05-16-03
Medias description Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion
