UCFA205-15-J7 FAG

Housing unit

Stock
6 pcs in stock and ready for shipment
Brand FAG
Article number UCFA205-15-J7 FAG
Inside diameter 23,81mm
Outside diameter 125,00mm
Width 35,80mm
Product description

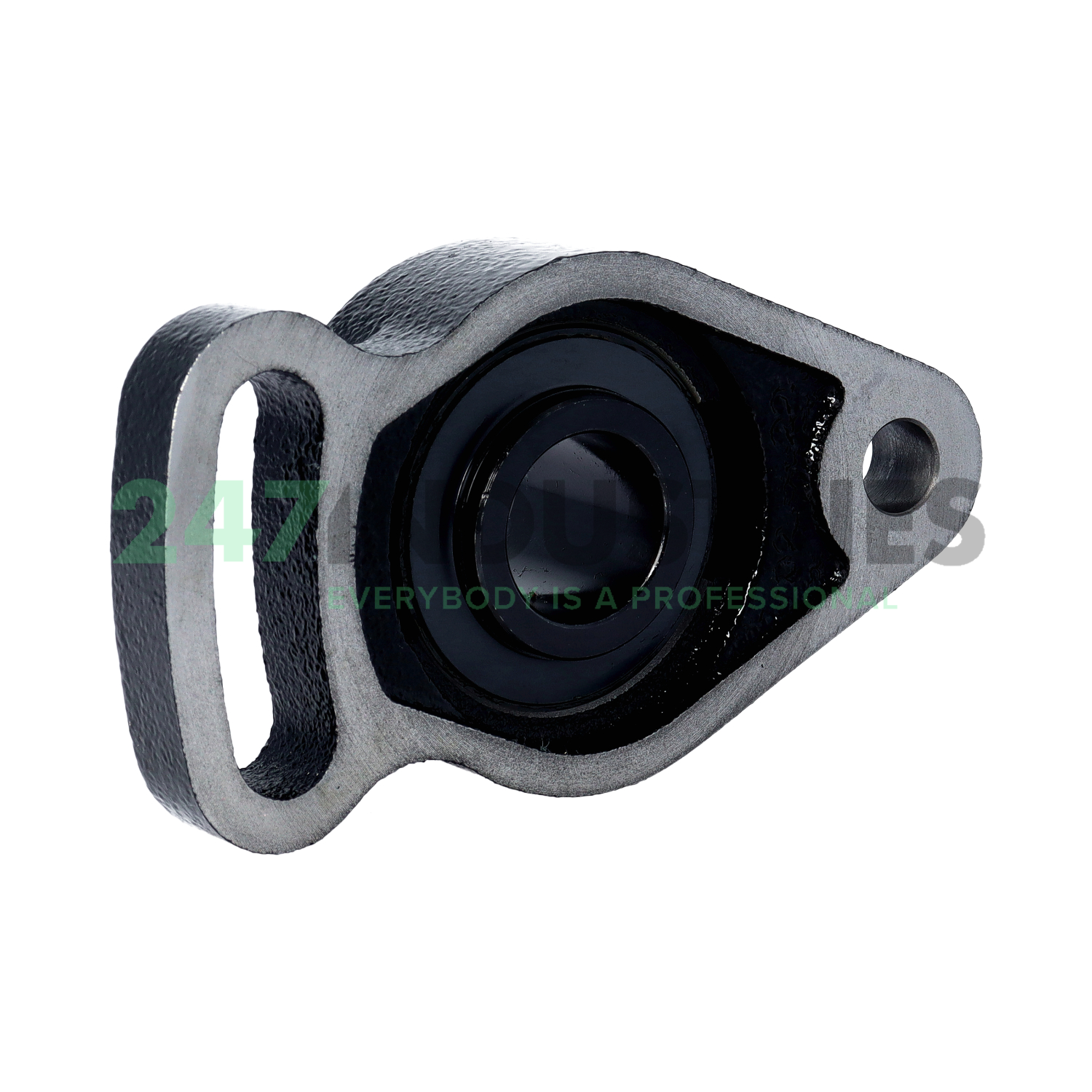

The UCFA205-15-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCFA205-15-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 23,81
  2. Outer (D) MM 125,00
  3. Width (B) MM 35,80
  4. Inner (d) Inch 0.9375
  5. Outer (D) Inch 4.9213
  6. Width (B) Inch 1.4094
  7. Length total (L) mm 125,00
  8. Total height unit (U) mm 35,80

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 6 pcs
  2. Brand FAG
  3. Item number UCFA205-15-J7 FAG
  4. Also known as 0821705410000
    UC205-15 + FA205
    UC205-15 + FA205-J7
    UCFA205-15
  5. EAN 4054366898913
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.63

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-03
  2. ECLASS2 number 23-05-16-03
  3. Medias description Housing units UCFA, cast iron housing, radial insert ball bearing with grub screws in inner ring, RSR seals, for swivel motion
