UCF209-J7 FAG

€ 31,11 ex VAT
€ 37,64 in VAT
€ 37,64 in VAT
€ 31,11 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

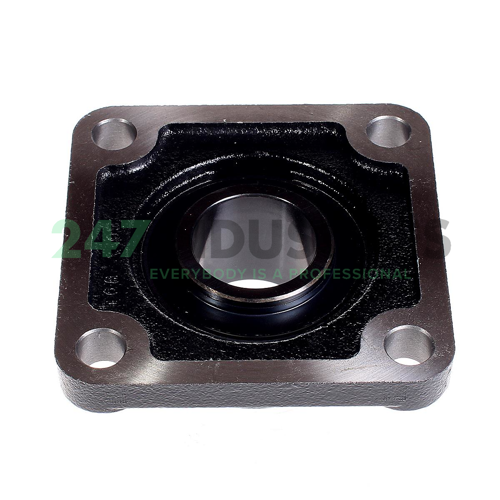

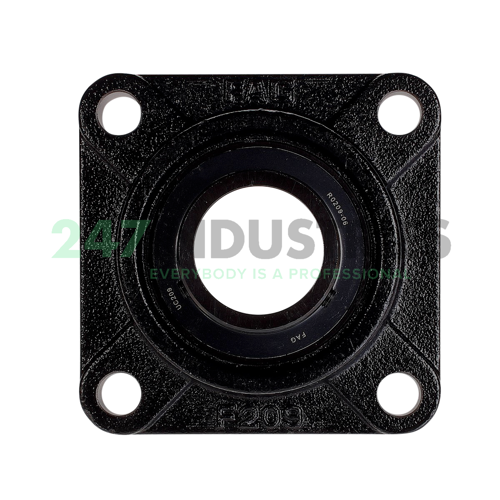

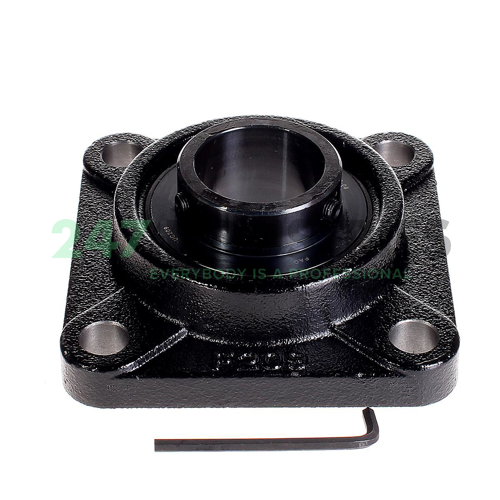

UCF209-J7 FAG

Housing unit

Stock
146 pcs in stock and ready for shipment
Brand FAG
Article number UCF209-J7 FAG
Inside diameter 45mm
Outside diameter 137mm
Width 52,2mm
Product description

The UCF209-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Downloads and links

Similar to: UCF209-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 45
  2. Outer (D) MM 137
  3. Width (B) MM 52,2
  4. Inner (d) Inch 1.7717
  5. Outer (D) Inch 5.3937
  6. Width (B) Inch 2.0551
  7. Flange width (L) mm 137
  8. Total height unit (U) mm 52,2

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 146 pcs
  2. Brand FAG
  3. Item number UCF209-J7 FAG
  4. Also known as 0808221260000
    56209 + FG209S
    FG56209
    FYJ45TF
    GYE45KRRB + CJ09
    RCJY45
    UC209 + F209-J7
    YAR209-2F + FYJ509
  5. EAN 4047643247603
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.1

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 20400
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. Basic static load rating, radial (C 0r) "20400.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCF
