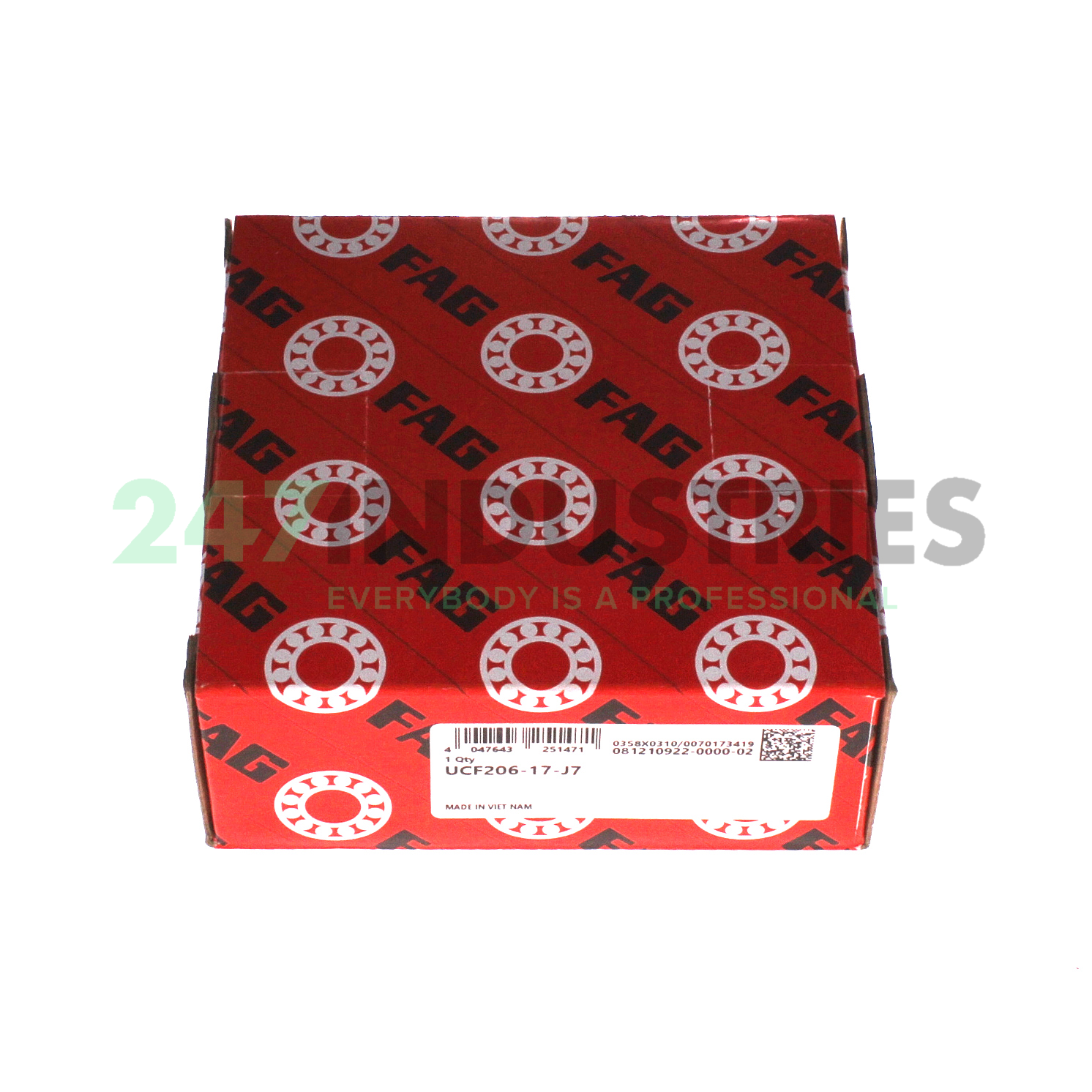

UCF206-17-J7 FAG

Housing unit

Stock
20 pcs in stock and ready for shipment
Brand FAG
Article number UCF206-17-J7 FAG
Inside diameter 26,99mm
Outside diameter 108,00mm
Width 40,20mm
Product description

The UCF206-17-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCF206-17-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 26,99
  2. Outer (D) MM 108,00
  3. Width (B) MM 40,20
  4. Inner (d) Inch 1.0625
  5. Outer (D) Inch 4.2520
  6. Width (B) Inch 1.5827
  7. Flange width (L) mm 108,00
  8. Total height unit (U) mm 40,20

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 20 pcs
  2. Brand FAG
  3. Item number UCF206-17-J7 FAG
  4. Also known as 0812109220000
    FYJ1.1/16TF
    UC206-17 + F206
  5. EAN 4047643251471
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.15

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 11300
  2. Radial Dynamic Load Rating Cr (N) 20700
  3. Basic static load rating, radial (C 0r) "11300.0000"
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Flanged housing unit UCF

Downloads and links

  1. Link to manufacturer Link to manufacturer
Show all details Show less
