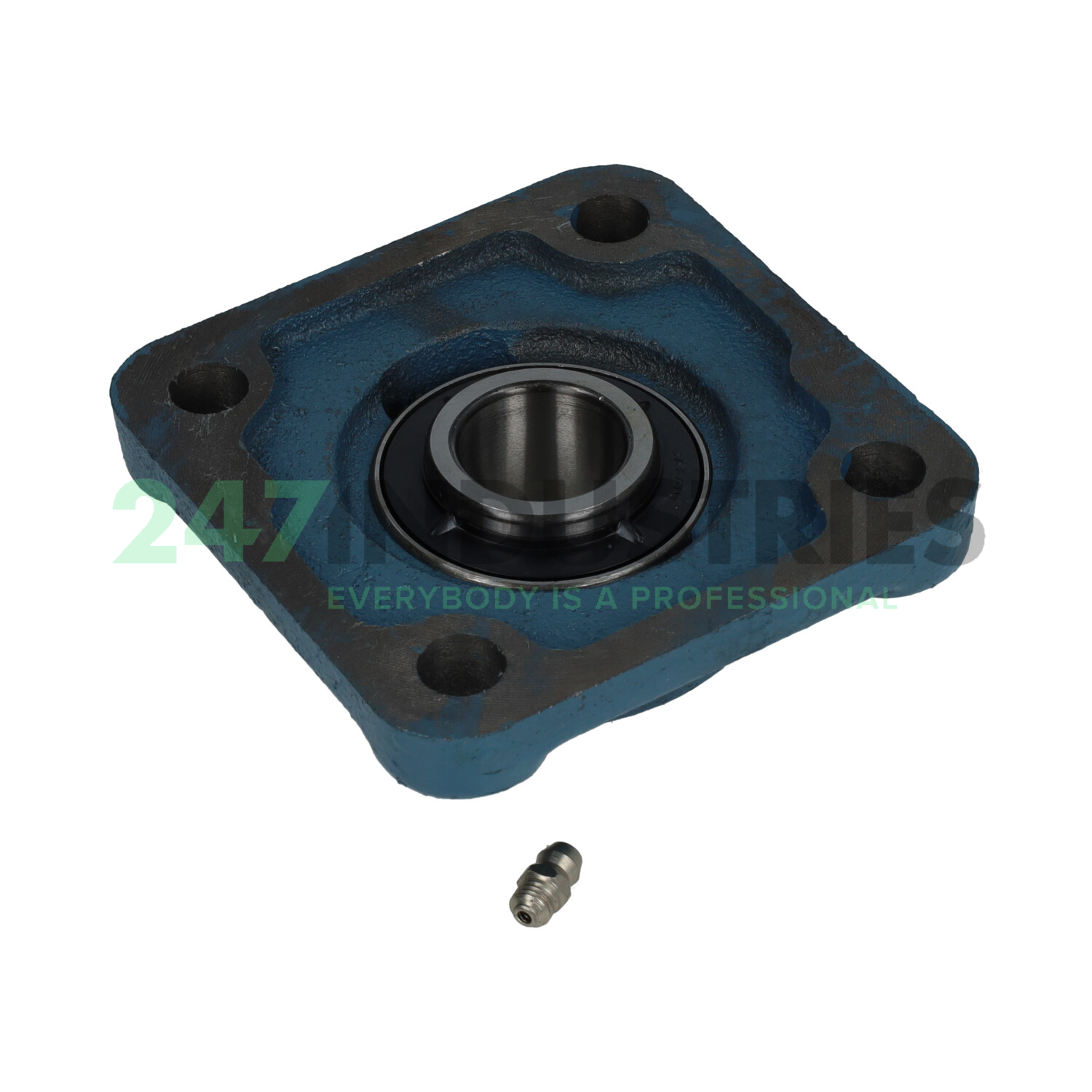

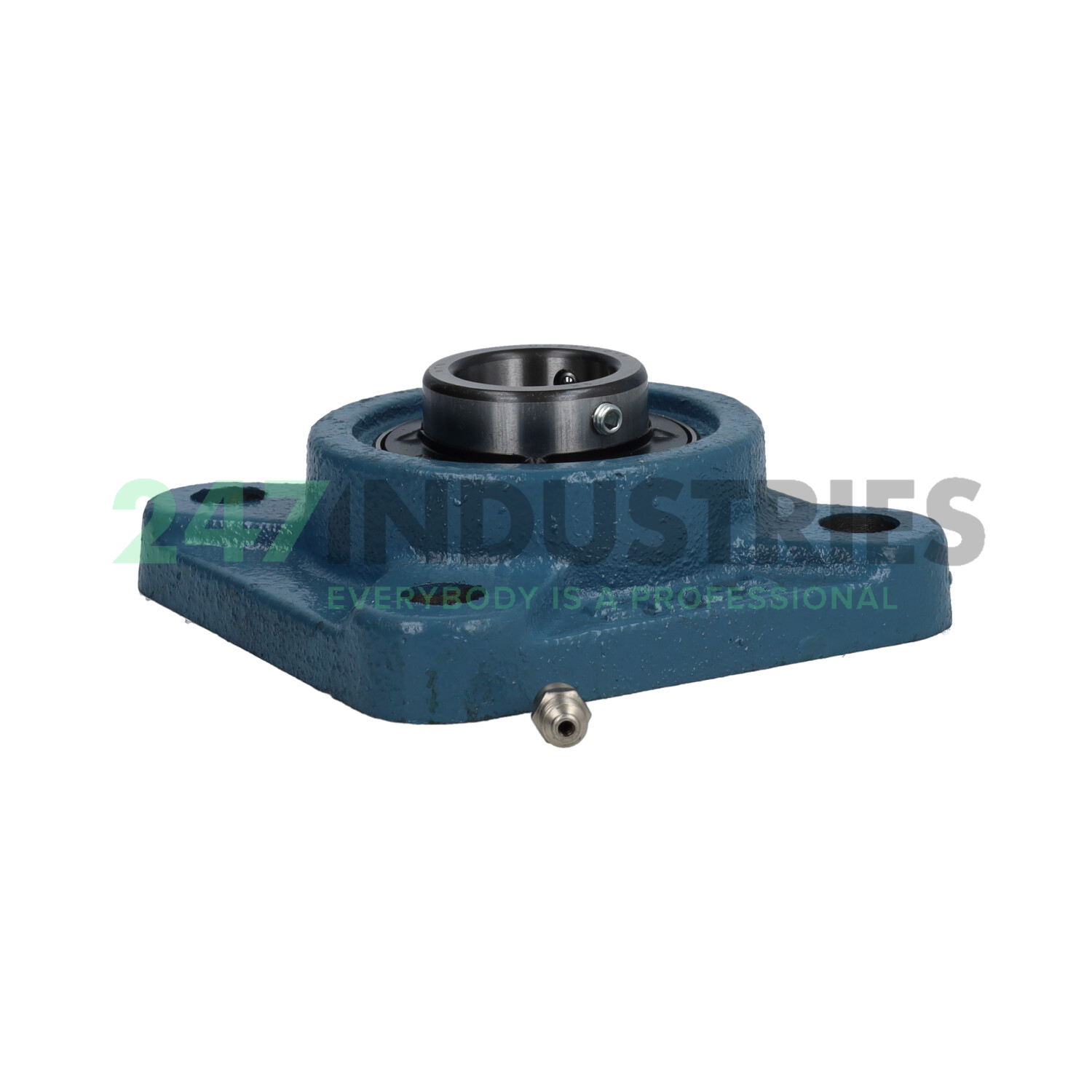

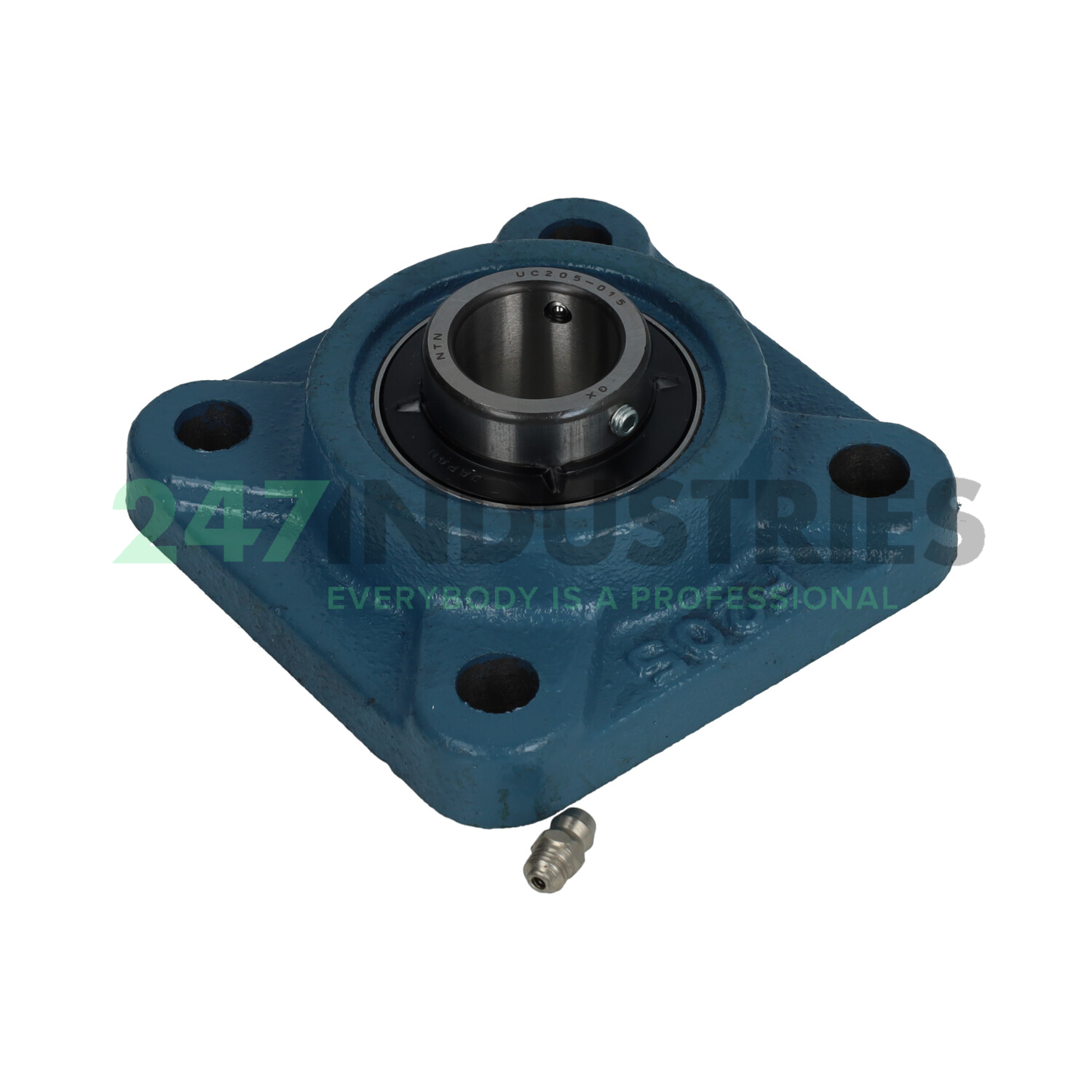

UCF205-015D1JC NTN

Housing unit

Stock
12 pcs in stock and ready for shipment
Brand NTN
Article number UCF205-015D1JC NTN
Inside diameter 23,81mm
Outside diameter 95mm
Width 35,8mm
Product description

The UCF205-015D1JC NTN is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Help with this product

Similar to: UCF205-015D1JC NTN

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 23,81
  2. Outer (D) MM 95
  3. Width (B) MM 35,8
  4. Inner (d) Inch 0.9375
  5. Outer (D) Inch 3.7402
  6. Width (B) Inch 1.4094

Suffix description

  1. D1 Maintenance Free Type
  2. J Bearing Unit Housing, With Spherical Bore Tolerance J, Applicable To Housing Bore Up To 100 MM
  3. C Open Sheet Cover Or Cast Iron Cover

Technical details

  1. Availability 12 pcs
  2. Brand NTN
  3. Item number UCF205-015D1JC NTN
  4. Also known as FYJ15/16TF
    UC205-15 + F205
  5. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.81

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment
