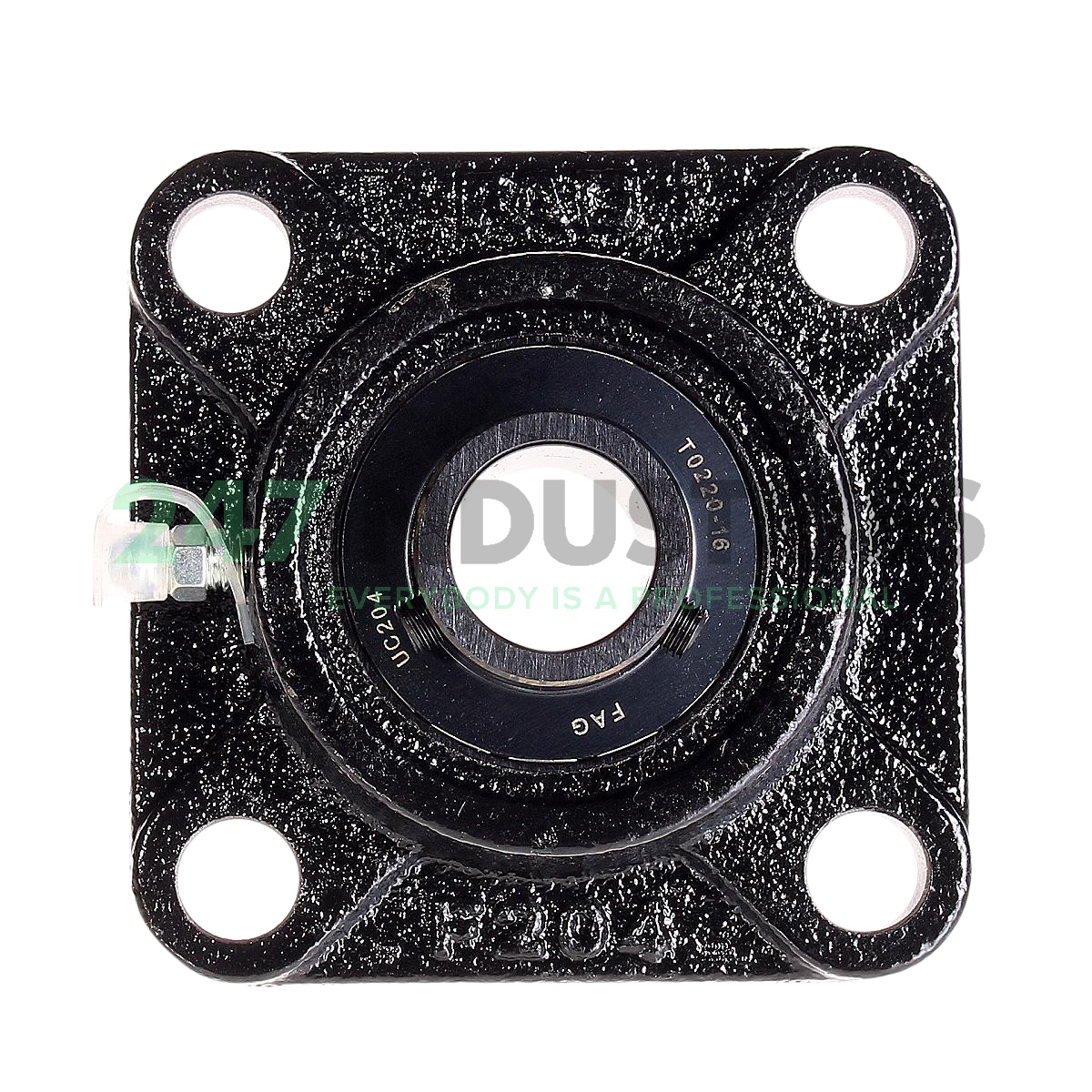

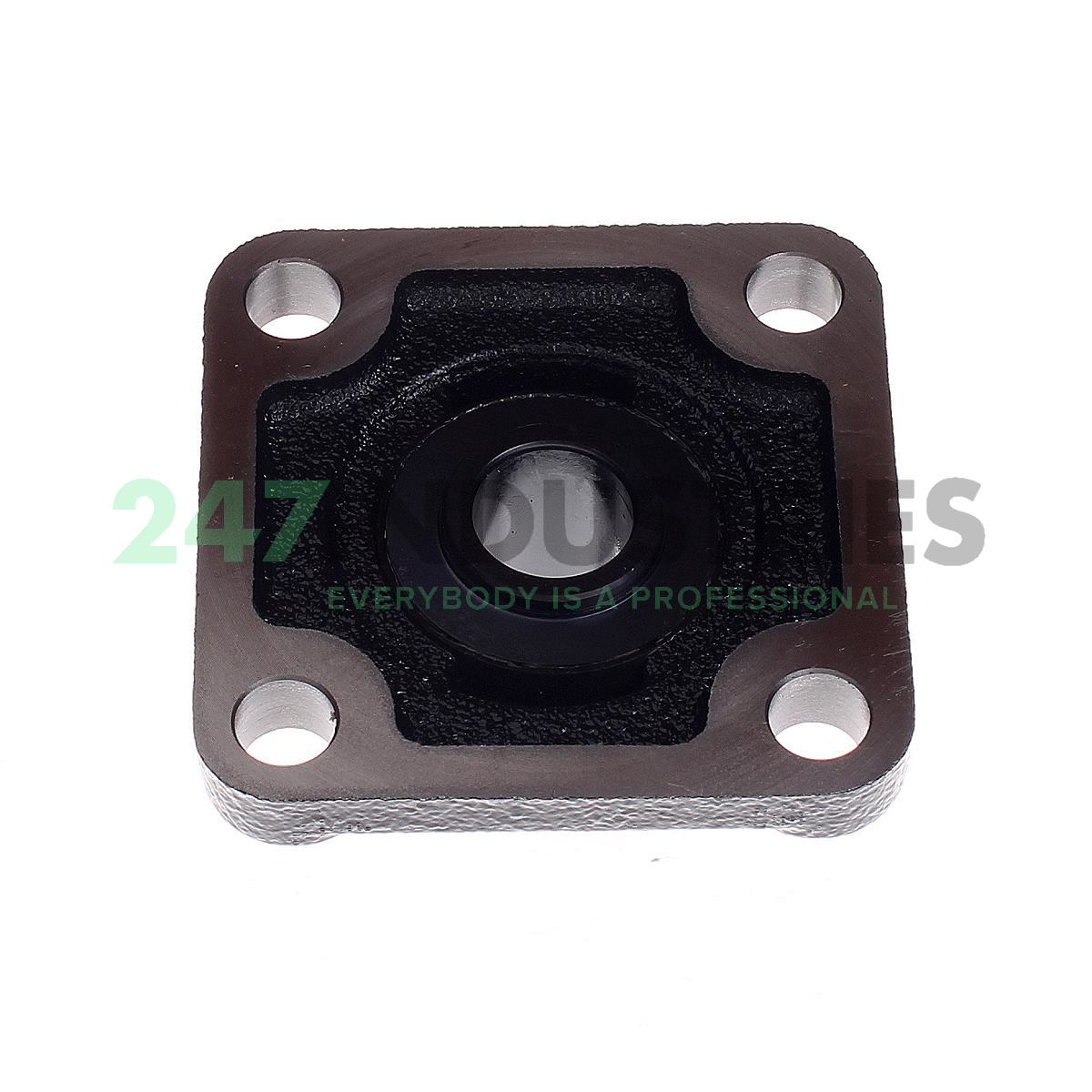

UCF204-J7 FAG

Housing and Bearing (assembly)

Stock
198 pcs in stock and ready for shipment
Brand FAG
Article number UCF204-J7 FAG
Inside diameter 20mm
Outside diameter 86mm
Width 33,3mm
Product description

The UCF204-J7 FAG is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: UCF204-J7 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 86
  3. Width (B) MM 33,3
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.3858
  6. Width (B) Inch 1.311
  7. Flange width (L) mm 86

Suffix description

  1. J7 This Suffix Is The Standard With A Better Fitting In The Housing

Technical details

  1. Availability 198 pcs
  2. Brand FAG
  3. Item number UCF204-J7 FAG
  4. Also known as 0800466810000
    56204 + FG204S
    FG56204
    FYJ20TF
    GYE20KRRB + CJ04
    RCJY20
    UC204 + F204-J7
    YAR204-2F + FYJ504
  5. EAN 4047643301916
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.559

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Flanged housing unit UCF

Downloads and links

  1. Link to manufacturer Link to manufacturer
