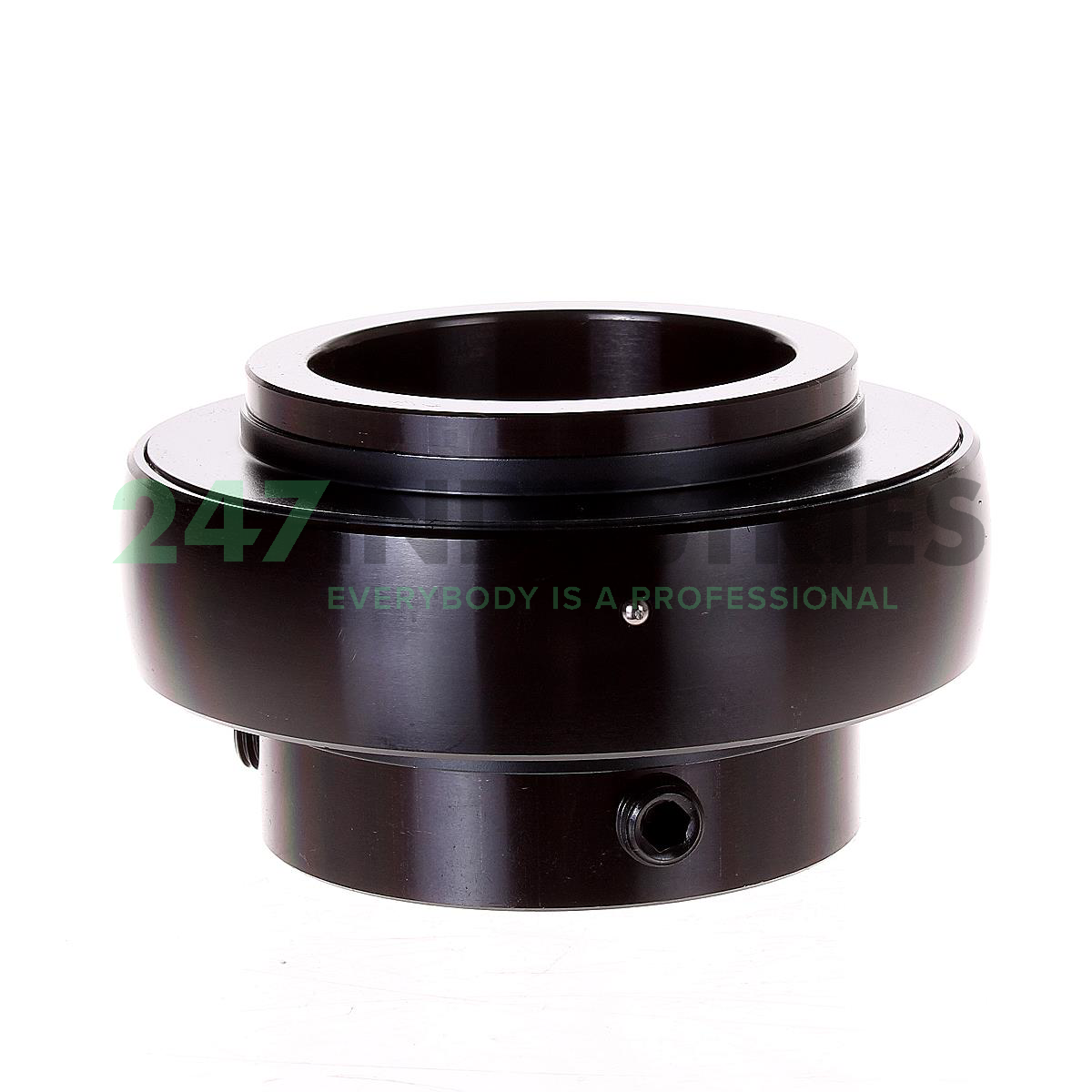

UC211 FAG

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 55,6
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 2.189
7. Outside diameter (D SP) mm 100
8. Width (b) mm 55,6

Technical details

1. Availability 146 pcs
2. Brand FAG
3. Item number UC211 FAG
4. Also known as 0693768160000
   56211
   GYE55KRRB
   YAR211-2F

5. EAN 4012802630954
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 1.15

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 46000
3. Basic static load rating, radial (C 0r) "29000.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
