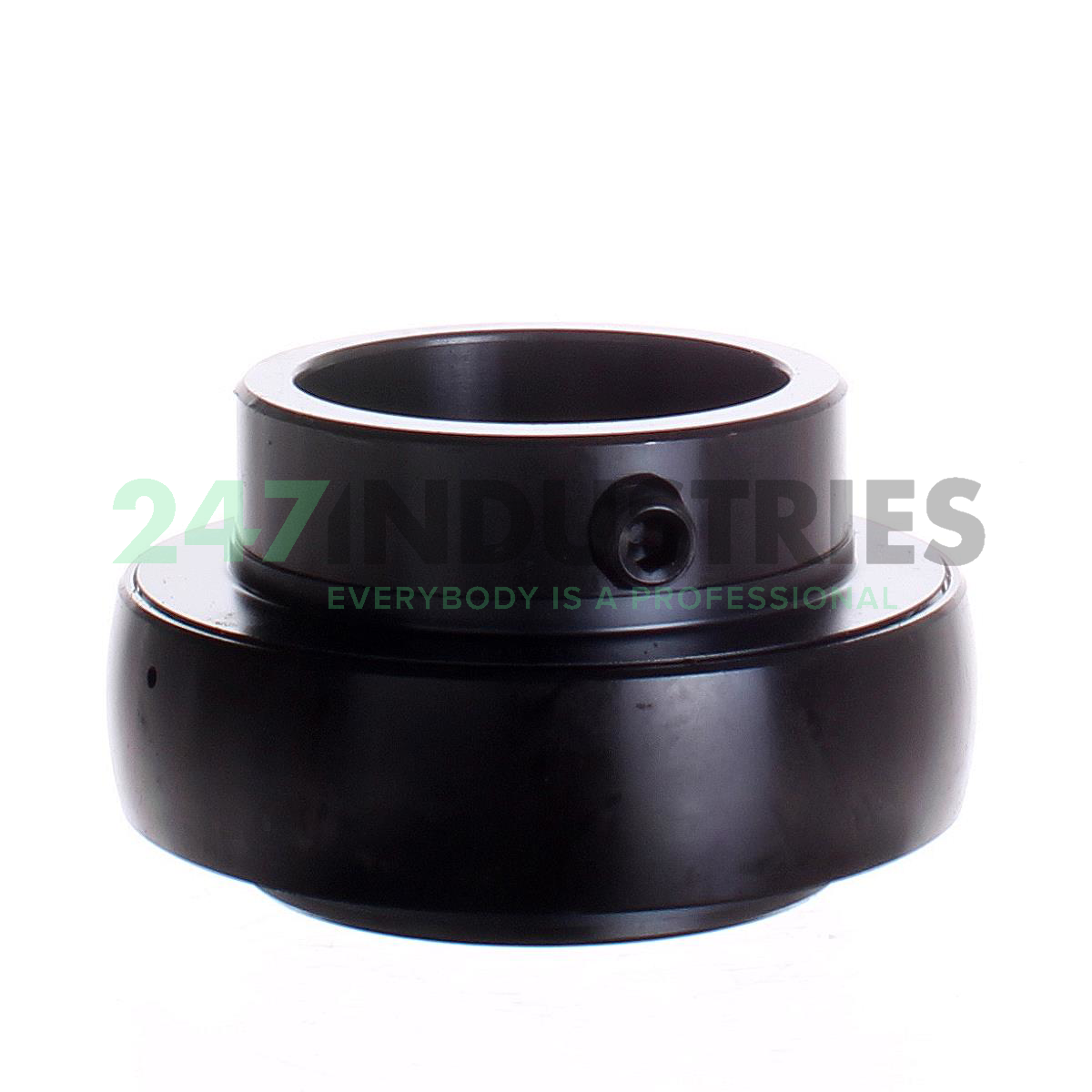

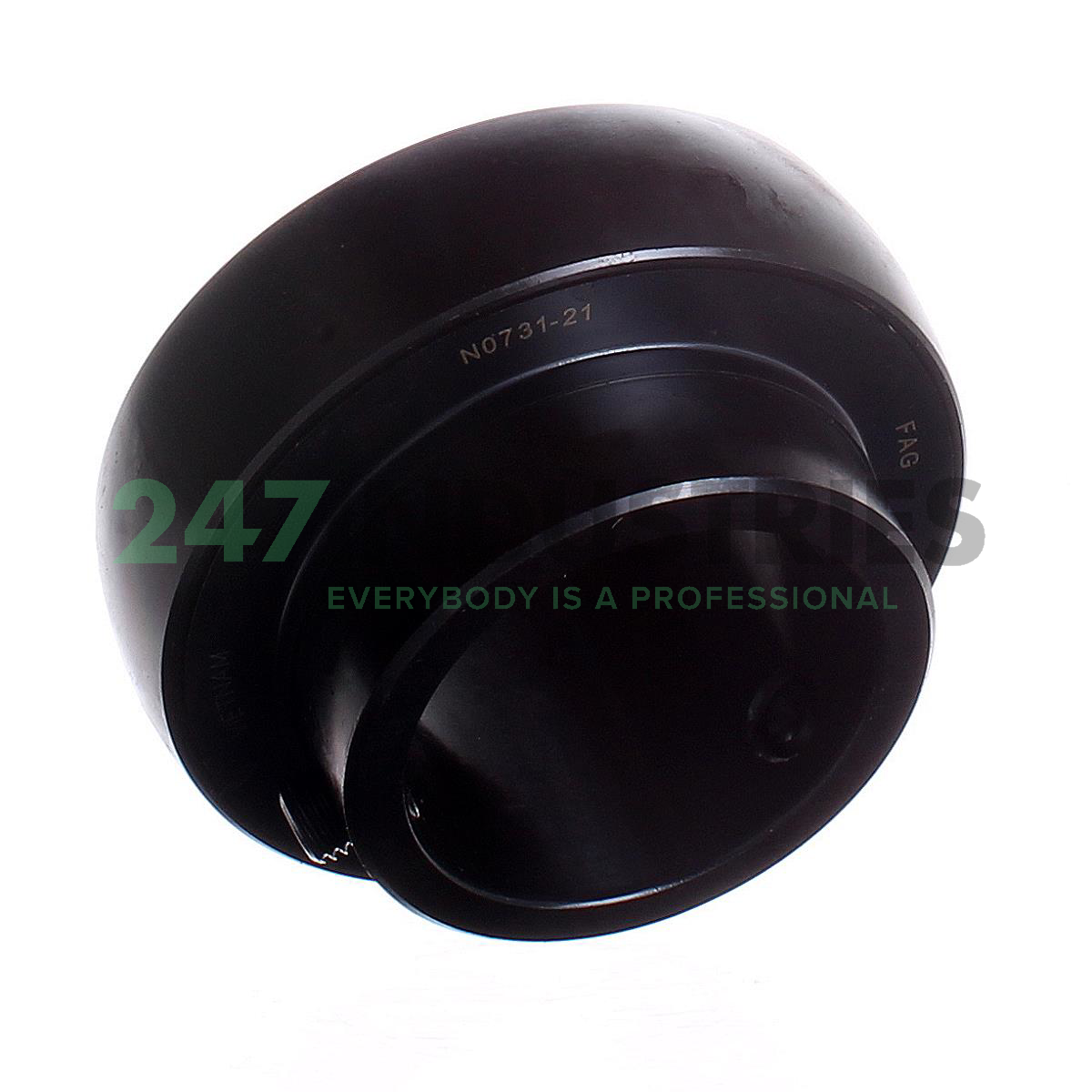

UC210 FAG

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 51,6
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 2.0315
7. Outside diameter (D SP) mm 90
8. Width (b) mm 51,6

Technical details

1. Availability 210 pcs
2. Brand FAG
3. Item number UC210 FAG
4. Also known as 0693735400000
   56210
   GYE50KRRB
   YAR210-2F

5. EAN 4012802631012
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.746

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
