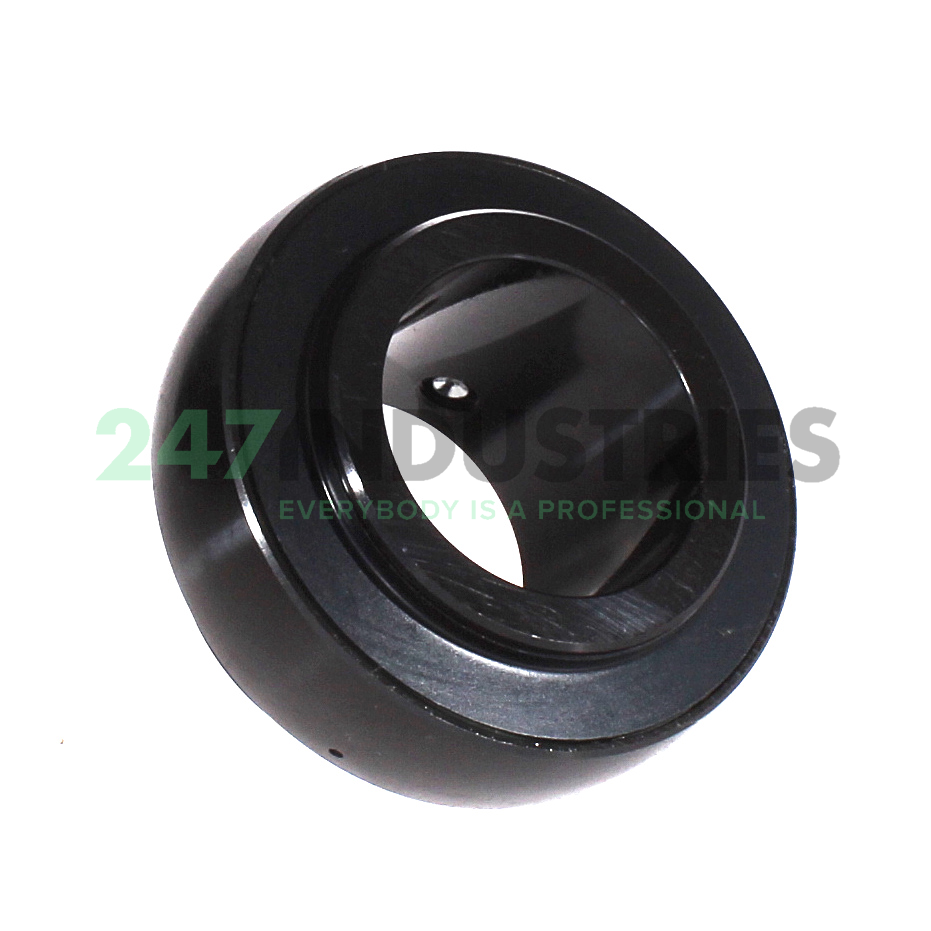

UC210-30 FAG

All dimensions

1. Inner (d) MM 47,63
2. Outer (D) MM 90
3. Width (B) MM 51,6
4. Inner (d) Inch 1.875
5. Outer (D) Inch 3.5433
6. Width (B) Inch 2.0315
7. Outside diameter (D SP) mm 90
8. Width (b) mm 51,6

Suffix description

1. 30 1.7/8" Bore

Technical details

1. Availability 63 pcs
2. Brand FAG
3. Item number UC210-30 FAG
4. Also known as 0693736630000
   1050-1.7/8
   YAR210-114-2F

5. EAN 4012802627329
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.837

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
