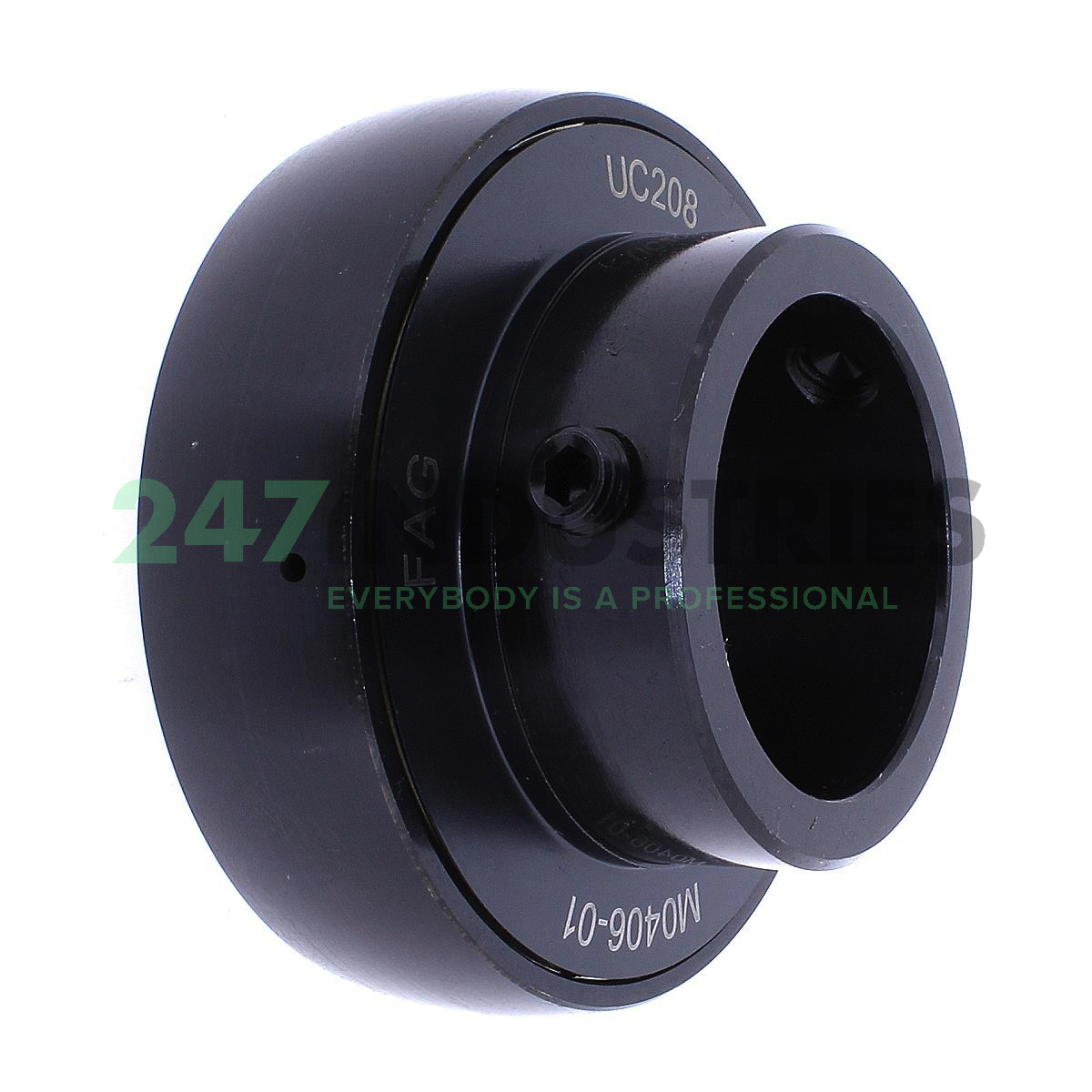

UC208 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 49,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.937
7. Outside diameter (D SP) mm 80
8. Width (b) mm 49,2

Technical details

1. Availability 77 pcs
2. Brand FAG
3. Item number UC208 FAG
4. Also known as 0693658060000
   56208
   GYE40KRRB
   YAR208-2F

5. EAN 4012802627466
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.65

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. Basic static load rating, radial (C 0r) "19800.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02
6. Medias description Radial insert ball bearings UC, spherical outer ring, location by grub screws, RSR seals on both sides
