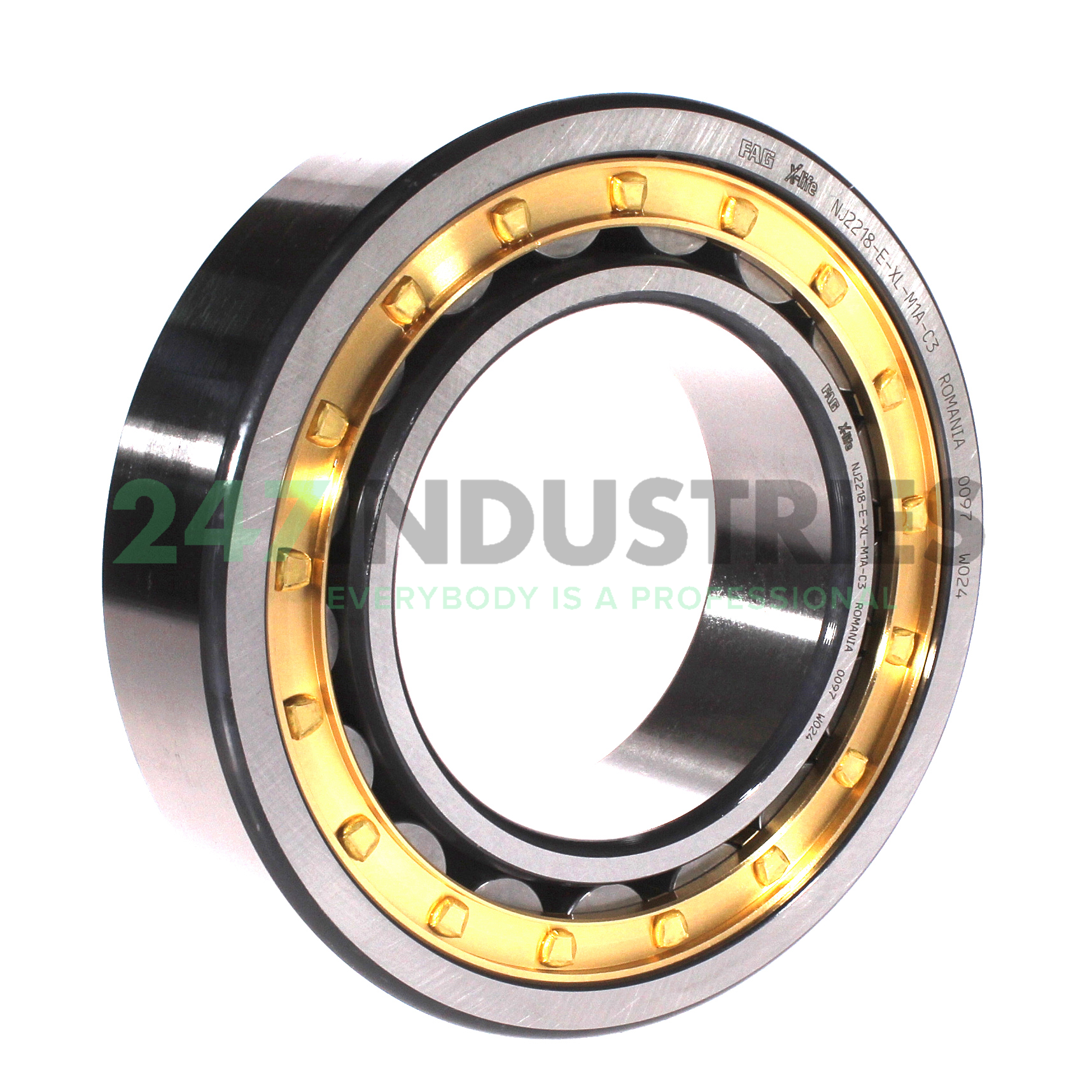

U20.221 Plasser & Theurer

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 140,00
3. Width (B) MM 33,00
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2992

Technical details

1. Availability 0 pcs
2. Brand Plasser & Theurer
3. Item number U20.221 Plasser & Theurer
4. Also known as NJ2216-E-M1A-C3
   NJ2216-E-MP1A-C3
   NJ2216-E-XL-MPAX-C3

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.268

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
