TSHE35-XL-N INA

Housing and Bearing (assembly)

Stock
25 pcs in stock and ready for shipment
Brand INA
Article number TSHE35-XL-N INA
Inside diameter 35mm
Outside diameter 103mm
Width 45mm
Product description

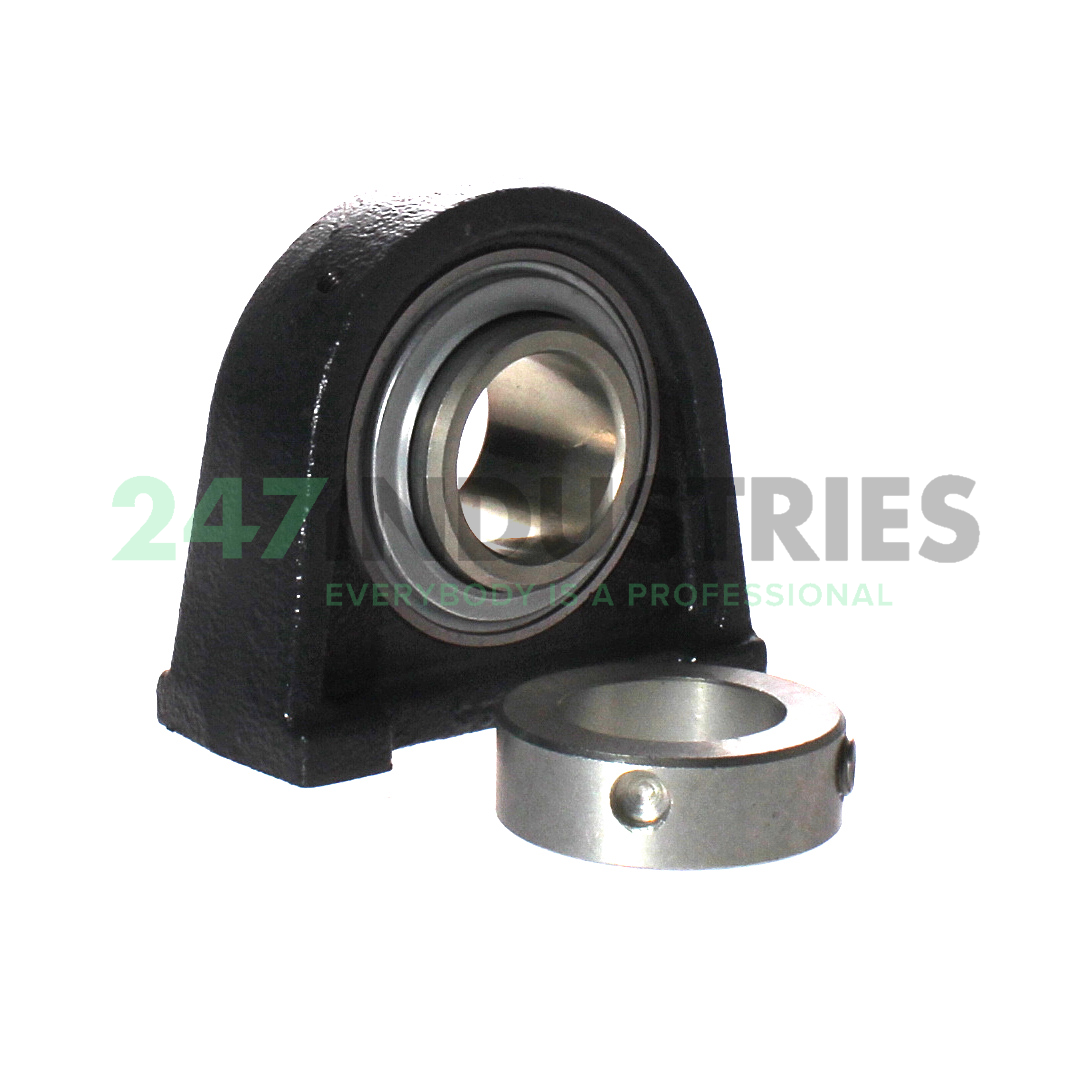

The TSHE35-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TSHE35-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35
  2. Outer (D) MM 103
  3. Width (B) MM 45
  4. Inner (d) Inch 1.378
  5. Outer (D) Inch 4.0551
  6. Width (B) Inch 1.7717
  7. Length total (L) mm 103
  8. Height (H 2) mm 93

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 25 pcs
  2. Brand INA
  3. Item number TSHE35-XL-N INA
  4. Also known as 0947165440000
    GE35KPPB3 + SHE07
    NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    TSHE35-N
  5. EAN 4054372555169
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.52

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
