TME60-XL-N INA

Housing and Bearing (assembly)

Stock
5 pcs in stock and ready for shipment
Brand INA
Article number TME60-XL-N INA
Product description

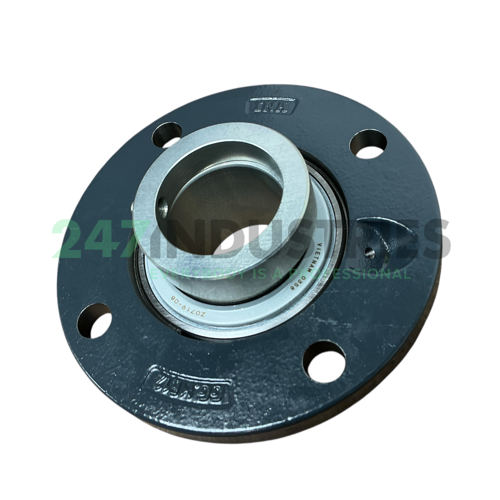

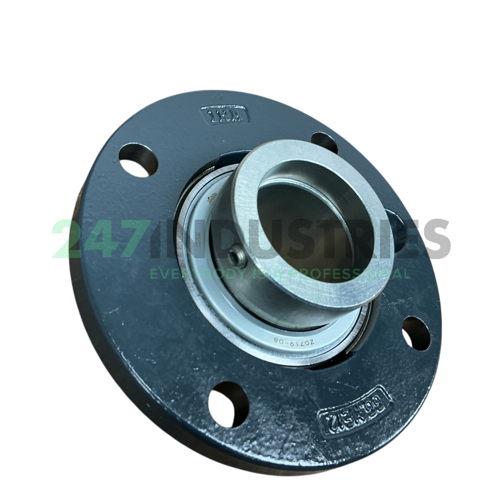

The TME60-XL-N INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TME60-XL-N INA

Loading similair products

Product specifications

All dimensions

  1. Height flange (H) mm 195
  2. Locking collar total width (B 1) mm 77,9
  3. Total height unit (U) mm 45,9

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps

Technical details

  1. Availability 5 pcs
  2. Brand INA
  3. Item number TME60-XL-N INA
  4. Also known as 0009820910000
    TME60-N
  5. EAN 4012802817904
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 4.1

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 36000
  2. Radial Dynamic Load Rating Cr (N) 56000
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Flanged housing unit TME..-XL-N
