TFE25-XL INA

€ 38,92 ex VAT
€ 47,10 in VAT
€ 47,10 in VAT
€ 38,92 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

TFE25-XL INA

Housing and Bearing (assembly)

Stock
1 pc in stock and ready for shipment
Brand INA
Article number TFE25-XL INA
Inside diameter 25mm
Outside diameter 115mm
Width 44,5mm
Product description

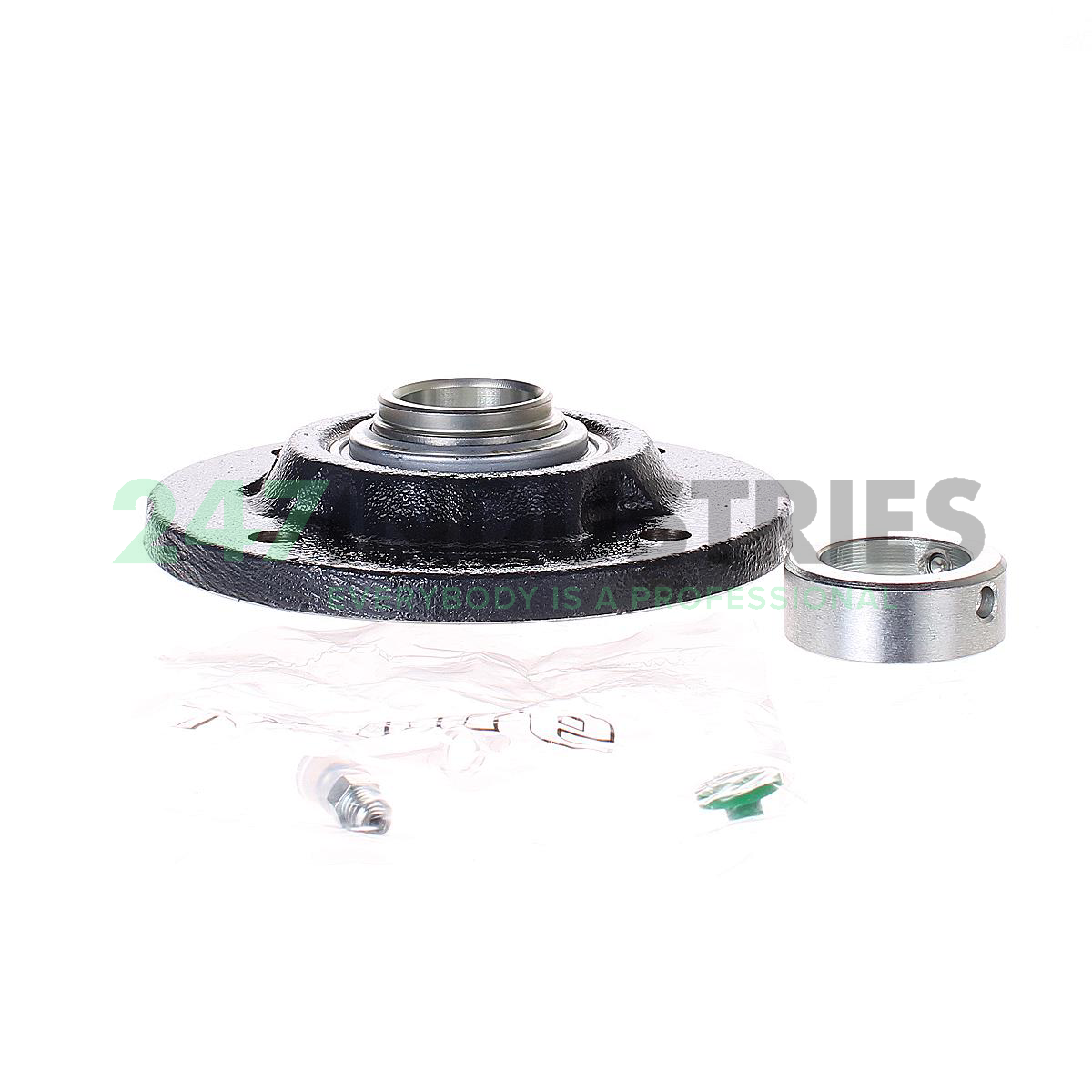

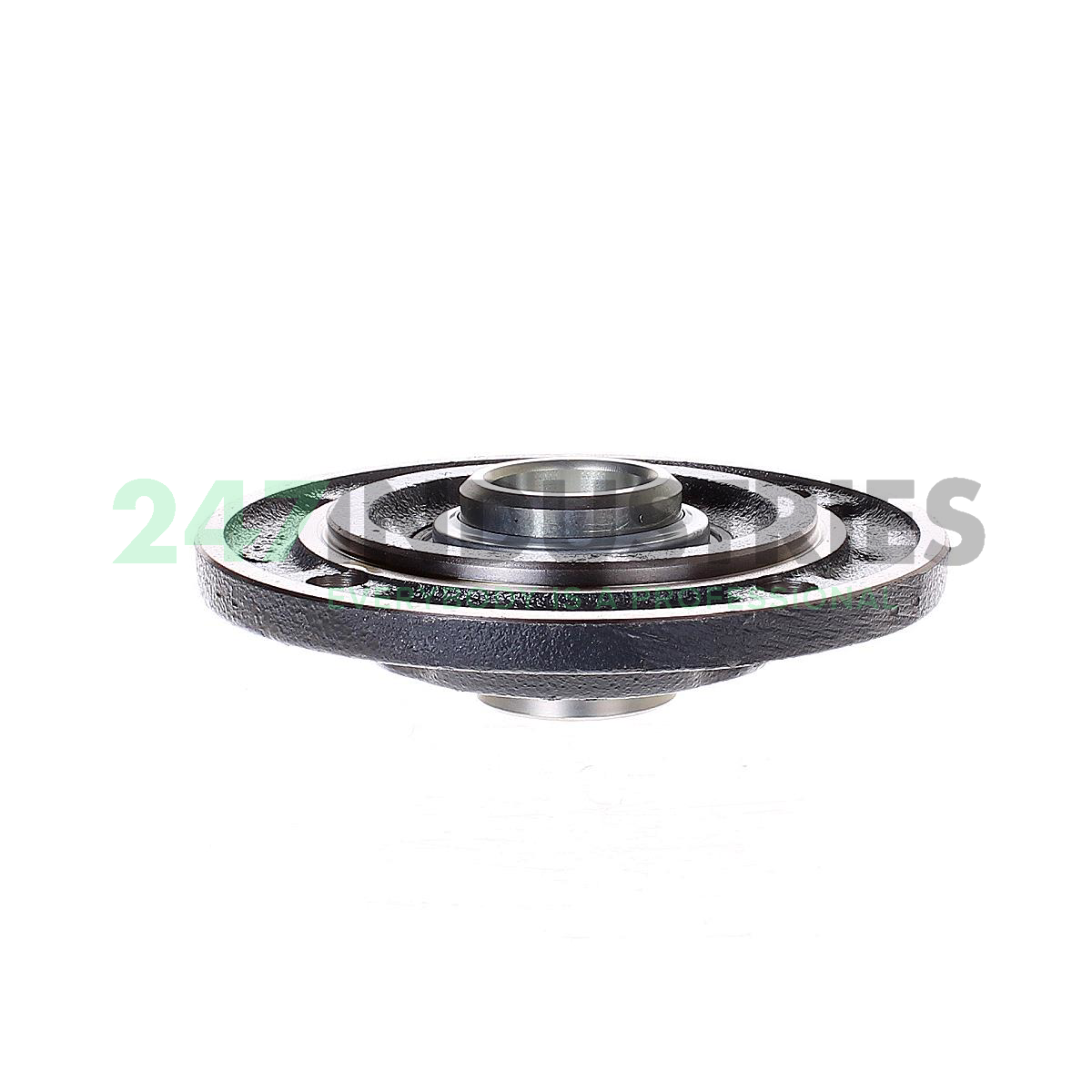

The TFE25-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TFE25-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 25
  2. Outer (D) MM 115
  3. Width (B) MM 44,5
  4. Inner (d) Inch 0.9843
  5. Outer (D) Inch 4.5276
  6. Width (B) Inch 1.752
  7. Height flange (H) mm 115
  8. Total height unit (U) mm 36,4

Suffix description

  1. XL X-Life

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number TFE25-XL INA
  4. Also known as 0008571220000
    TFE25
  5. EAN 4012802798814
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.808

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 7800
  2. Radial Dynamic Load Rating Cr (N) 14900
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units TFE, four-bolt flanged housing units, cast iron, centring spigot, eccentric locking collar, T seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
