TASE50-XL-N-I INA

Housing unit

Stock
1 pc in stock and ready for shipment
Brand INA
Article number TASE50-XL-N-I INA
Inside diameter 50mm
Outside diameter 200mm
Width 62,8mm
Product description

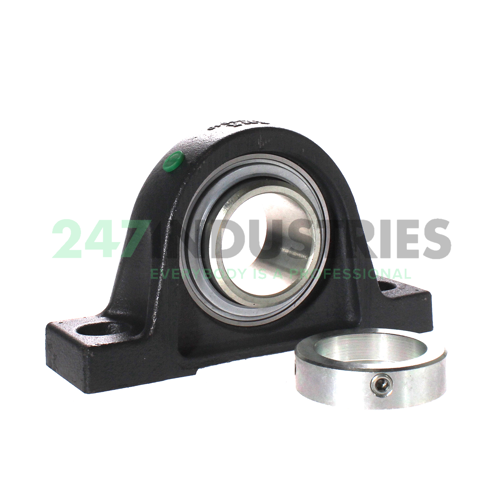

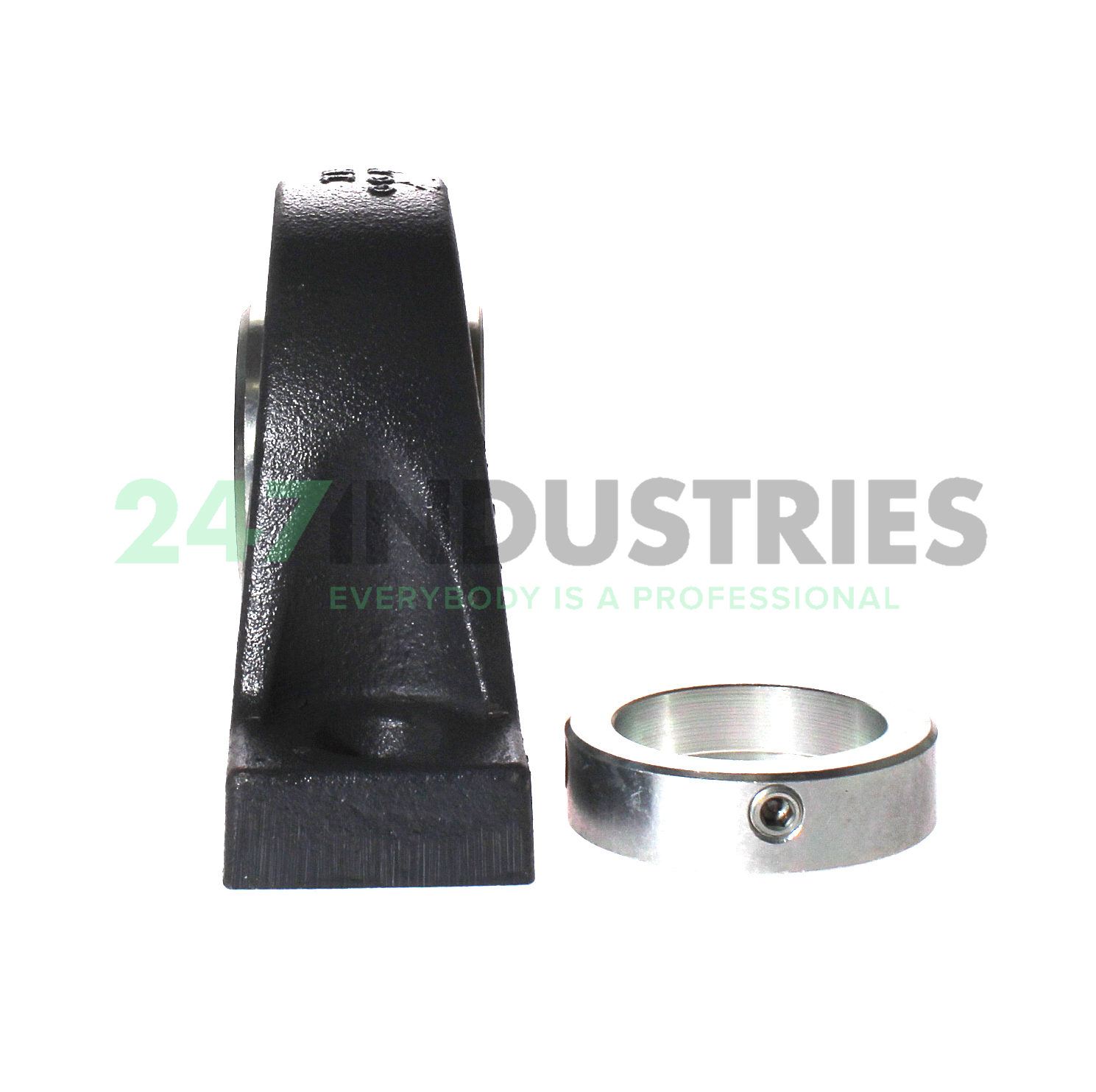

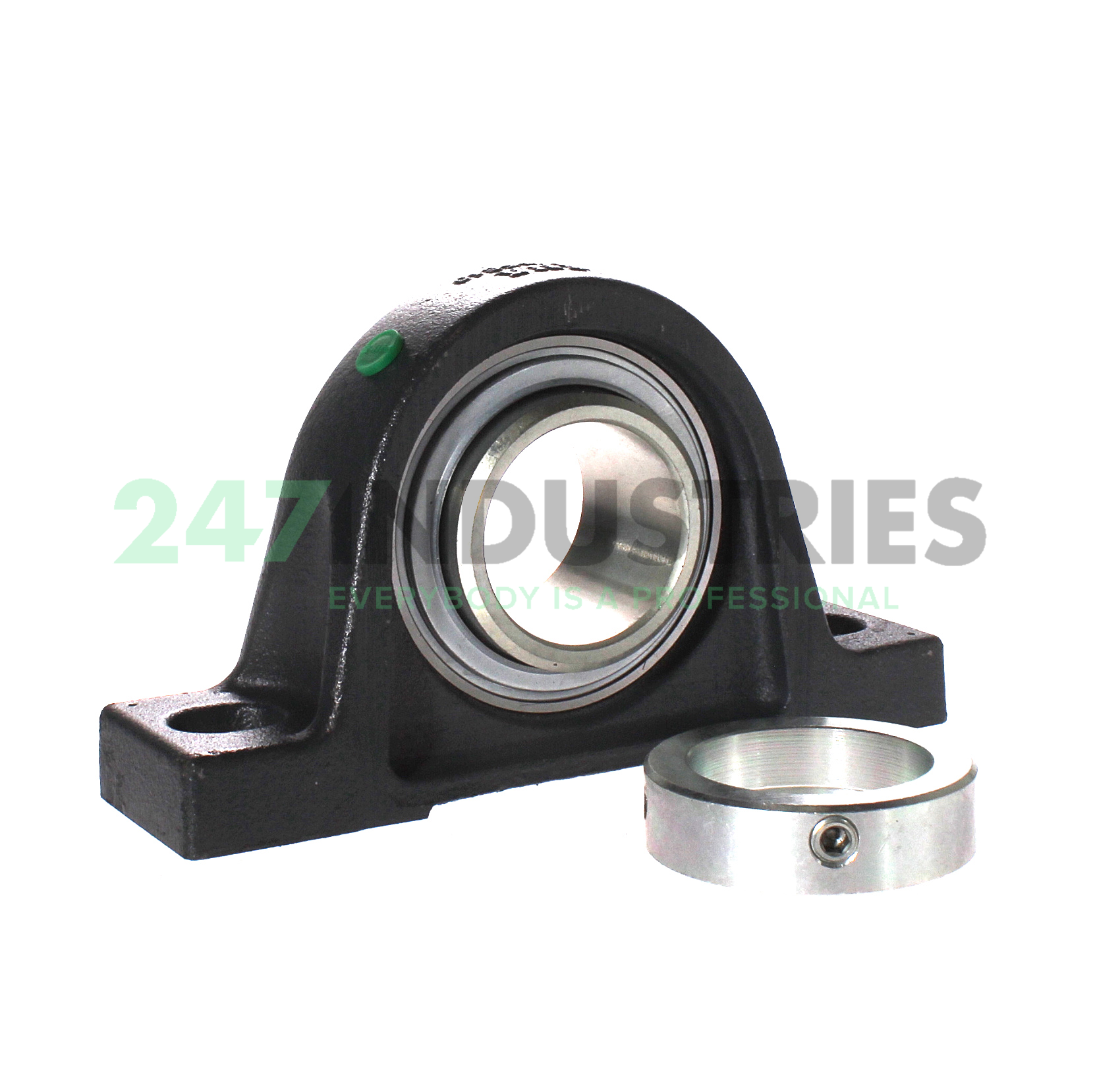

The TASE50-XL-N-I INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: TASE50-XL-N-I INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 200
  3. Width (B) MM 62,8
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 7.874
  6. Width (B) Inch 2.4724

Suffix description

  1. XL X-Life
  2. N Cast Iron Housing With Undercut Slot For End Caps
  3. I Inch Size Grease Nipple R 1/8”

Technical details

  1. Availability 1 pc
  2. Brand INA
  3. Item number TASE50-XL-N-I INA
  4. Also known as NIP DIN71412-A R 1/8
    NIP DIN71412-B R 1/8
    NIP DIN71412-C R 1/8
    TASE50-N-I
  5. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 2.8

Product Properties

  1. Seal 2T - Two T-seals
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. ECLASS number 23-05-16-01
  2. ECLASS2 number 23-05-16-01
  3. Medias description Plummer block housing units TASE, cast iron housing, radial insert ball bearing with eccentric locking collar, T seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
