SX011824-A INA

€ 1.022,85 ex VAT
€ 1.237,64 incl. VAT
€ 1.237,64 incl. VAT
€ 1.022,85 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

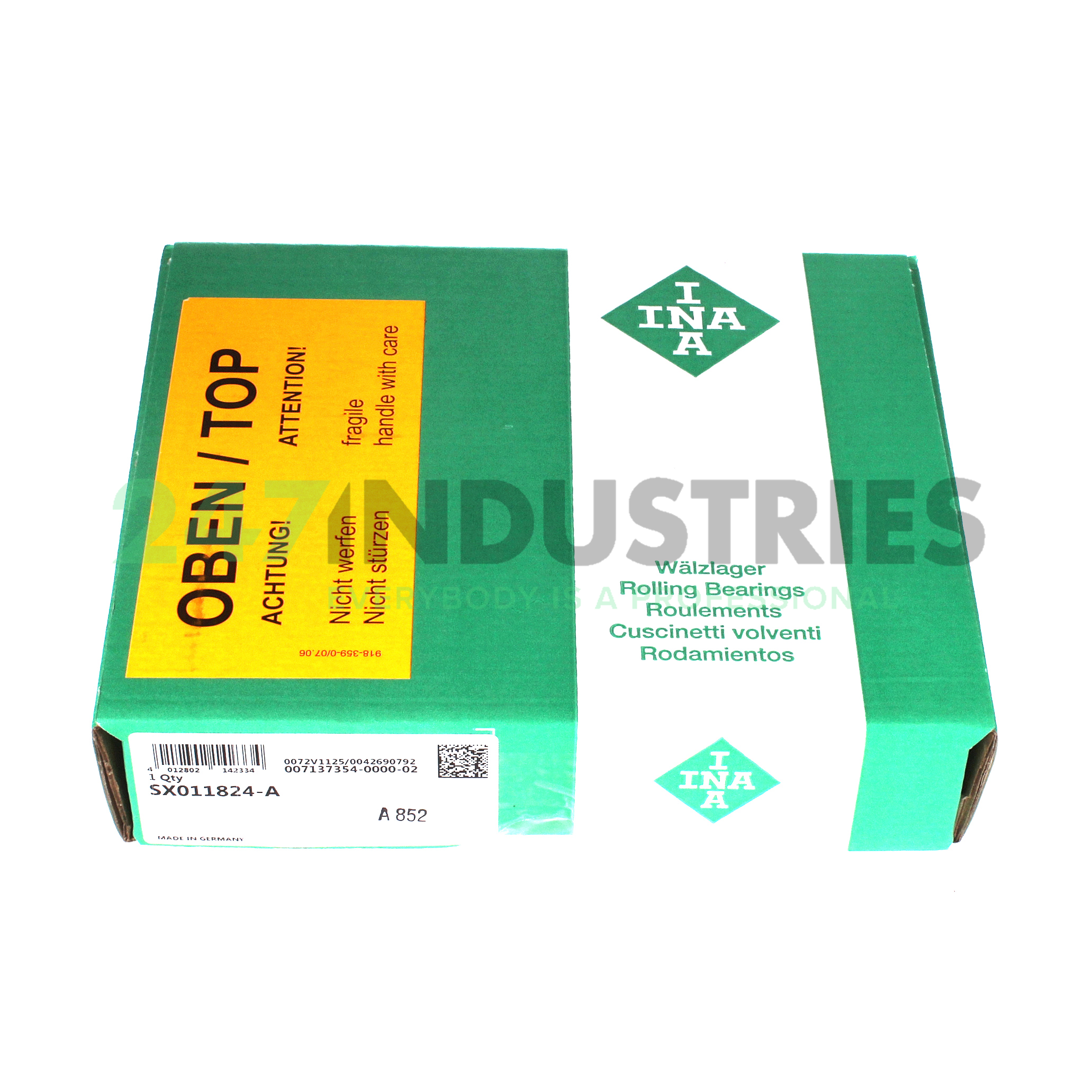

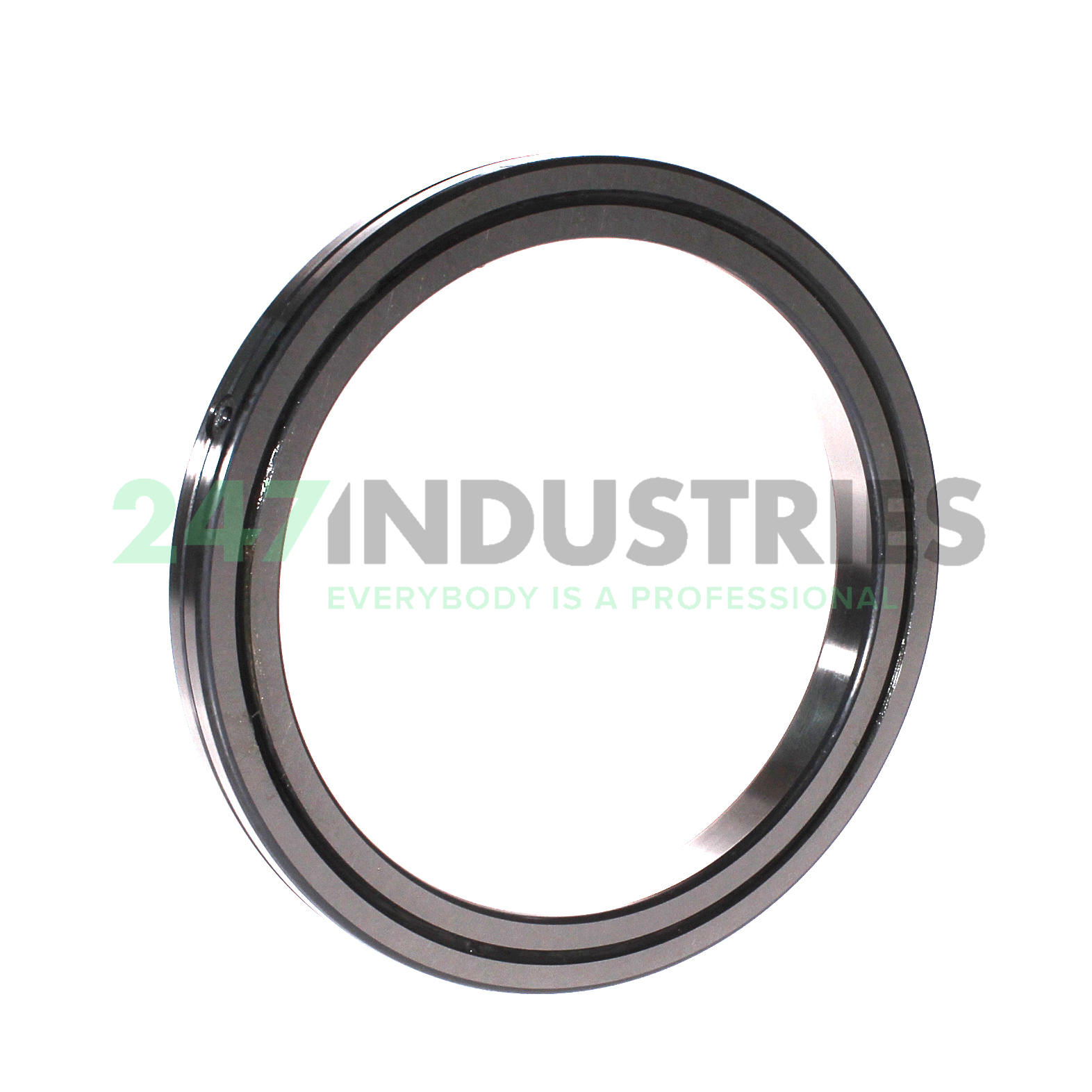

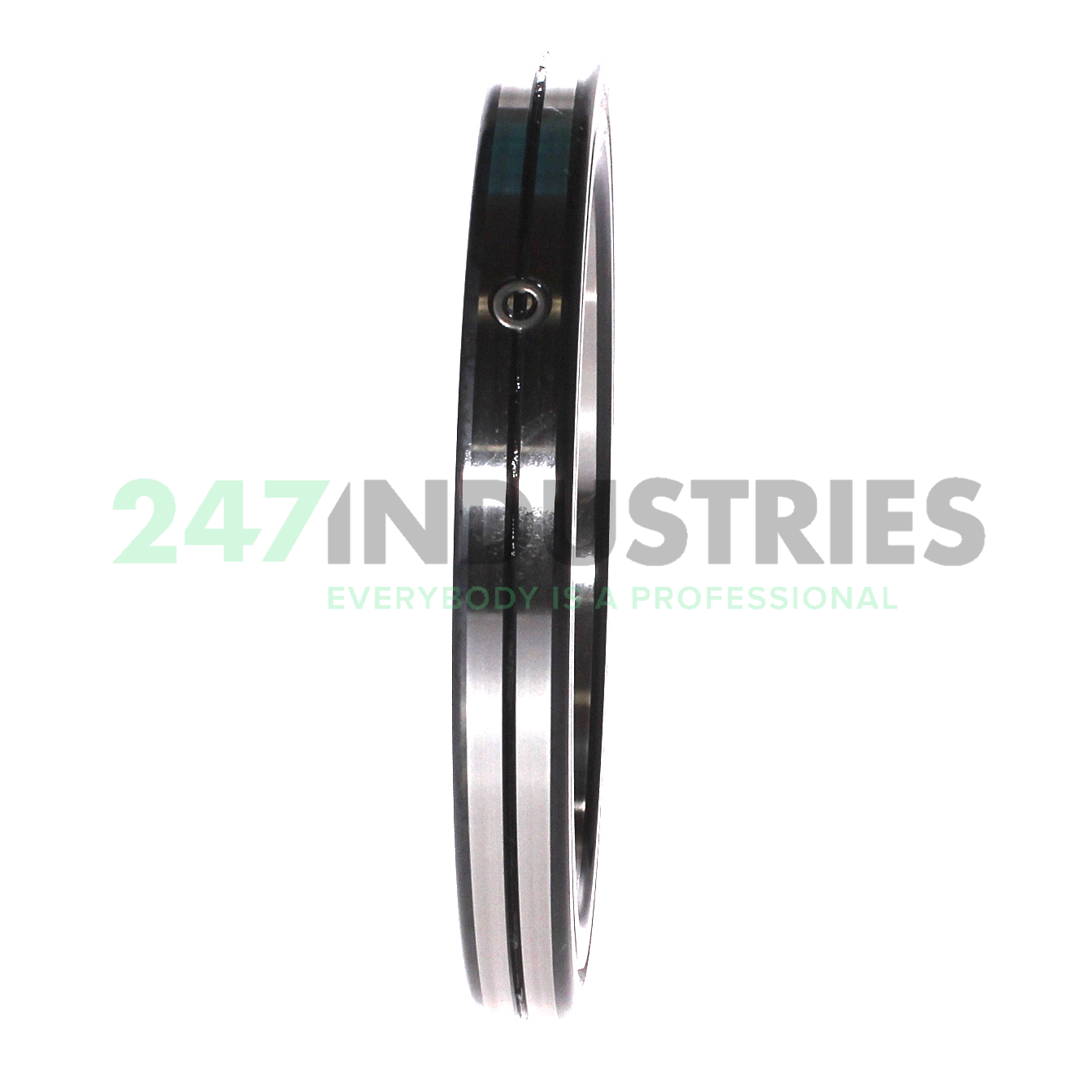

SX011824-A INA

Crossed roller bearing, dimension series 18 to DIN 616

Stock
5 pcs in stock and ready for shipment
Brand INA
Article number SX011824-A INA
Inside diameter 120,00mm
Outside diameter 150,00mm
Width 16,00mm
Product description
Read more Show less
Help with this product

Downloads and links

Similar to: SX011824-A INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 120,00
  2. Outer (D) MM 150,00
  3. Width (B) MM 16,00
  4. Inner (d) Inch 4.7244
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 0.6299
  7. Outside Diameter (D a) mm 150,00
  8. Height of the assembled bearing (H) mm 16,00

Suffix description

  1. A

Technical details

  1. Availability 5 pcs
  2. Brand INA
  3. Item number SX011824-A INA
  4. Also known as 0071373540000
  5. EAN 4012802142334
  6. Category Specials

Weight and Dimensions

  1. Weight (kg) 0.8

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 69000
  2. Radial Dynamic Load Rating Cr (N) 28000
  3. Axial Static Load Rating C0a (N) 140000
  4. Axial Dynamic Load Rating Ca (N) 39500
  5. ECLASS number 23-05-12-05
  6. ECLASS2 number 23-05-12-05
  7. Medias description Crossed roller bearingsdimension series 18 to DIN 616
