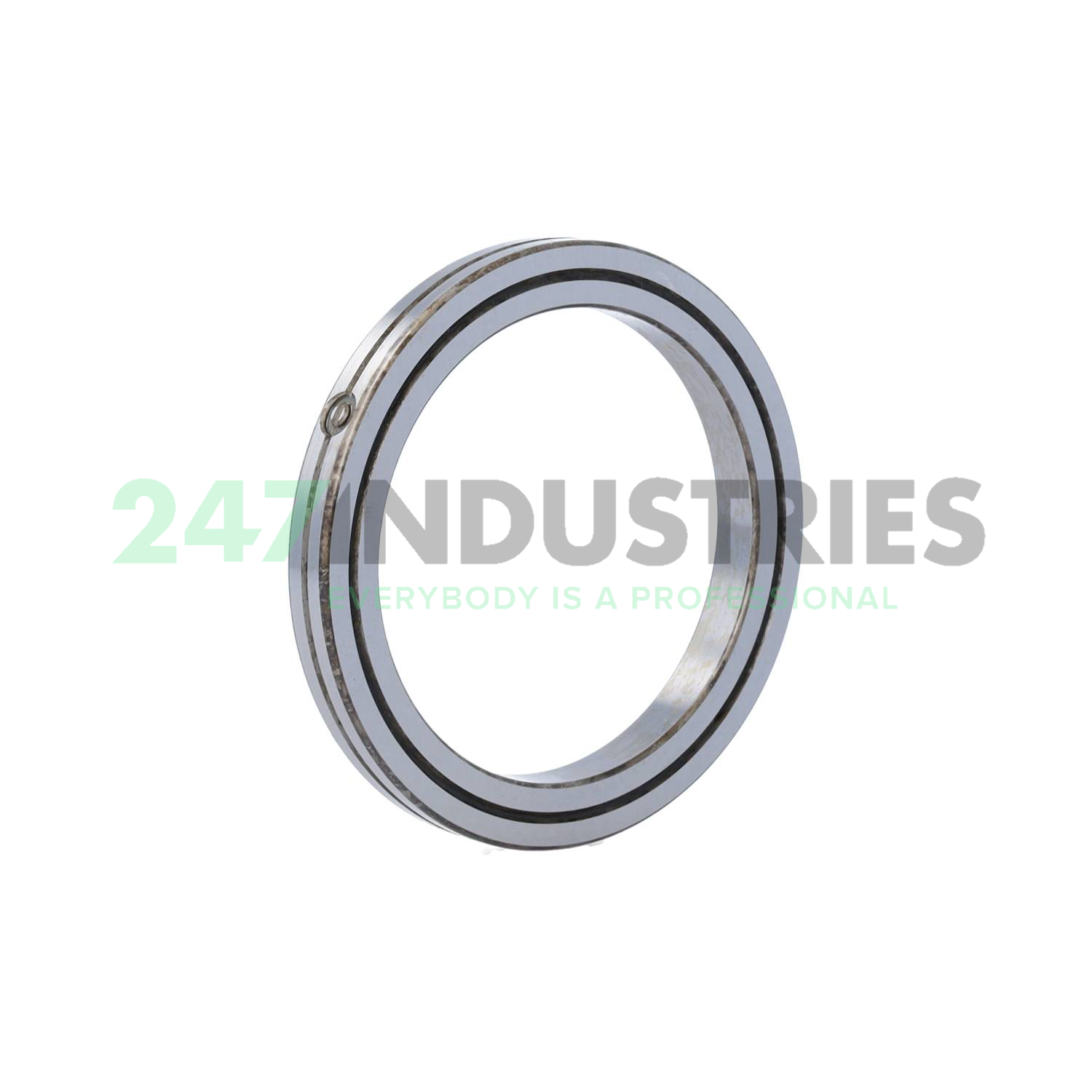

SX011814-A-VSP INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 90
3. Width (B) MM 10
4. Outside Diameter (D a) mm 90
5. Height of the assembled bearing (H) mm 10

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. VSP For Mounting With An Axially Supported L-Section Ring In Series YRT. In Fitting Of The Series Yrt With An L-Section Ring Supported Axially Over Its Whole Surface, There Is An Increase In The Axial Rigidity In The Direction Of The Support Ring As A Function Of The Support Ring Rigidity And In The Tilting Rigidity Of Up To 20%. In This Case, Delivery With A Different Preload Match Is Necessary

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number SX011814-A-VSP INA
4. Also known as 0071373200079

5. EAN 4047643190534
6. Category Specials

Weight and Dimensions

1. Weight (kg) 0.3

Data from Schaeffler (medias)

1. ECLASS number 23-05-12-05
2. ECLASS2 number 23-05-12-05

Downloads and links

1. Link to manufacturer Link to manufacturer
