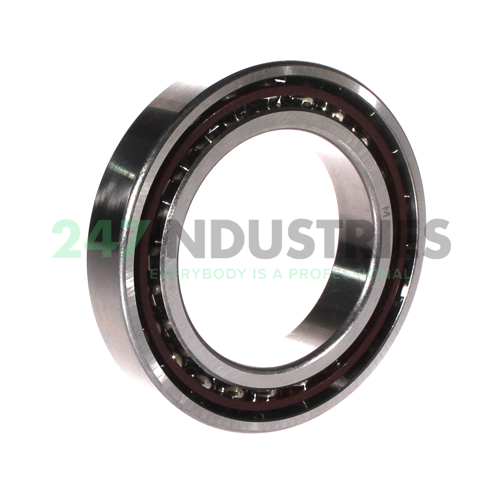

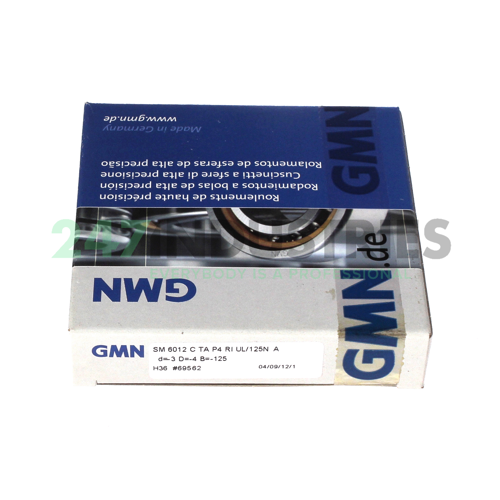

SM6012C TA P4 RI UL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 18
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.7087

Suffix description

1. C 15° Contact Angle
2. TA Laminated Phenolic Resin Cage Or Polyamide Cage Guided On Outer Ring
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-Abec.7
4. RI Indication Of The Point Of Radial Runout (Maximum Wall Thickness) On Inner
5. UL Universal Matching - Light Preload

Technical details

1. Availability 5 pcs
2. Brand GMN Paul Müller Industrie
3. Item number SM6012C TA P4 RI UL GMN Paul Müller Industrie
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.406

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
