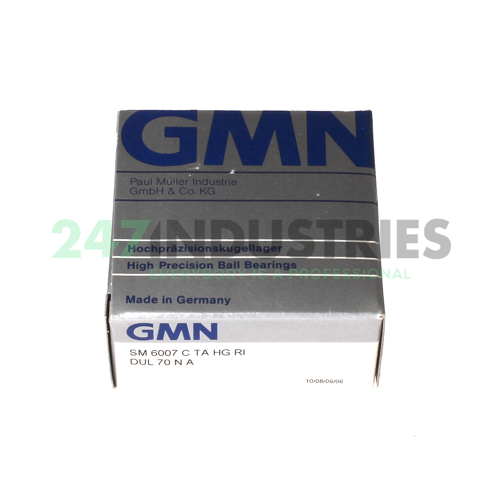

SM6007C TA HG RI DUL GMN Paul Müller Industrie

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 28
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.1024

Suffix description

1. C 15° Contact Angle
2. TA Laminated Phenolic Resin Cage Or Polyamide Cage Guided On Outer Ring
3. HG Gmn High Precision According To Gmn Specification
4. RI Indication Of The Point Of Radial Runout (Maximum Wall Thickness On Inner Ring
5. DUL 2 Bearings, Universal Matching - Light Preload

Technical details

1. Availability 6 pcs
2. Brand GMN Paul Müller Industrie
3. Item number SM6007C TA HG RI DUL GMN Paul Müller Industrie
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.26

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision HG - GMN High Precision
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
