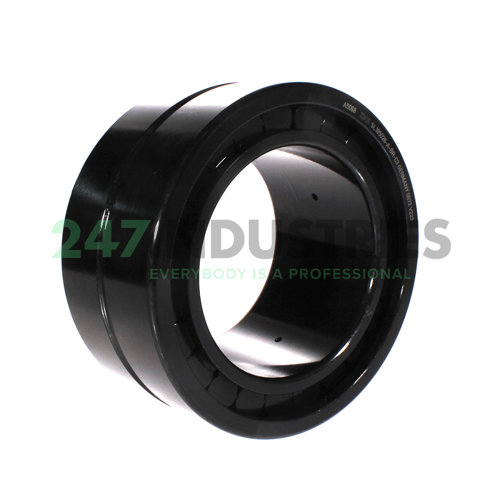

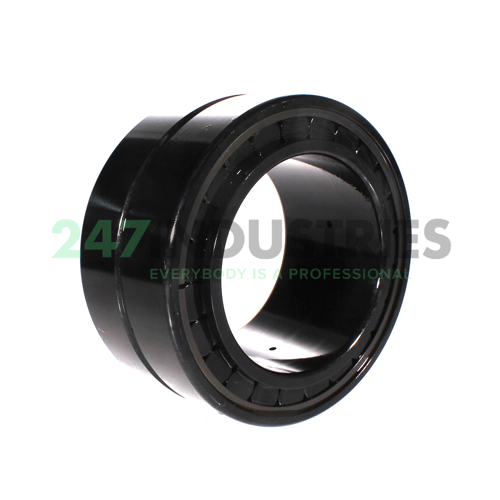

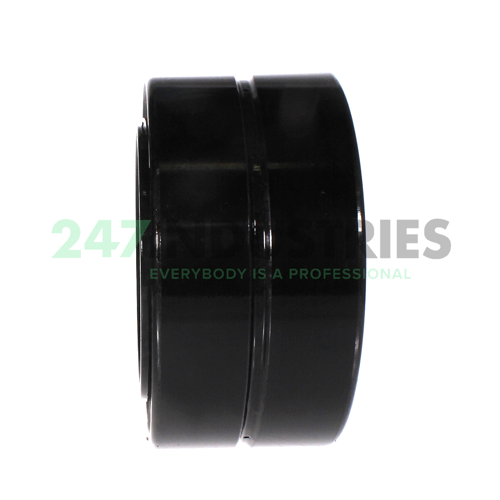

SL185026-A-BR-C3 INA

All dimensions

1. Width (b) mm 95,00

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. BR Black Finished, Factory-Applied Durotect® B Black-Oxide Coating. Durotect B Improves Run-In Behavior And Energy Efficiency While Reducing Surface-Induced Damage To The Bearing, Burnished Race
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number SL185026-A-BR-C3 INA
4. Also known as 0829767910030

5. EAN 4054364382438
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 10.2

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision BR - Black Finishing
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "1210000.0000"
2. Limiting speed (n G) "1990.0000"
3. Reference speed (n ϑr) "1340.0000"
4. ECLASS number 23-05-09-01
5. ECLASS2 number 23-05-09-01
