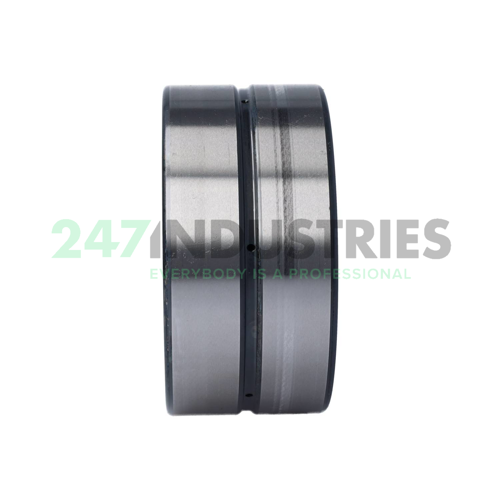

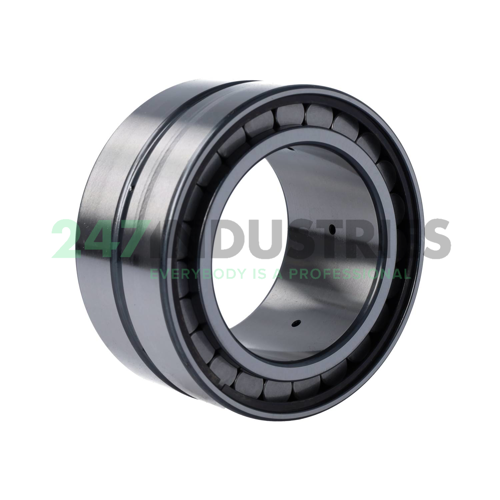

SL185016-A-XL-C3 INA

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 125,00
3. Width (B) MM 60,00
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.3622
7. Width (b) mm 60,00

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number SL185016-A-XL-C3 INA
4. Also known as 0849630000030
   SL185016-A-C3

5. EAN 4054364550165
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 2.59

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type FC - Full Complement, No Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 440000
2. Radial Dynamic Load Rating Cr (N) 330000
3. Basic static load rating, radial (C 0r) "440000.0000"
4. Limiting speed (n G) "3200.0000"
5. Reference speed (n ϑr) "2320.0000"
6. ECLASS number 23-05-09-01
7. ECLASS2 number 23-05-09-01
8. Medias description Cylindrical roller bearing SL18..-XL, full complement roller set, two-row, semi-locating bearing, 1 rib on outer ring, 3 ribs on inner ring, type SL18
