SL045030-D-PP INA

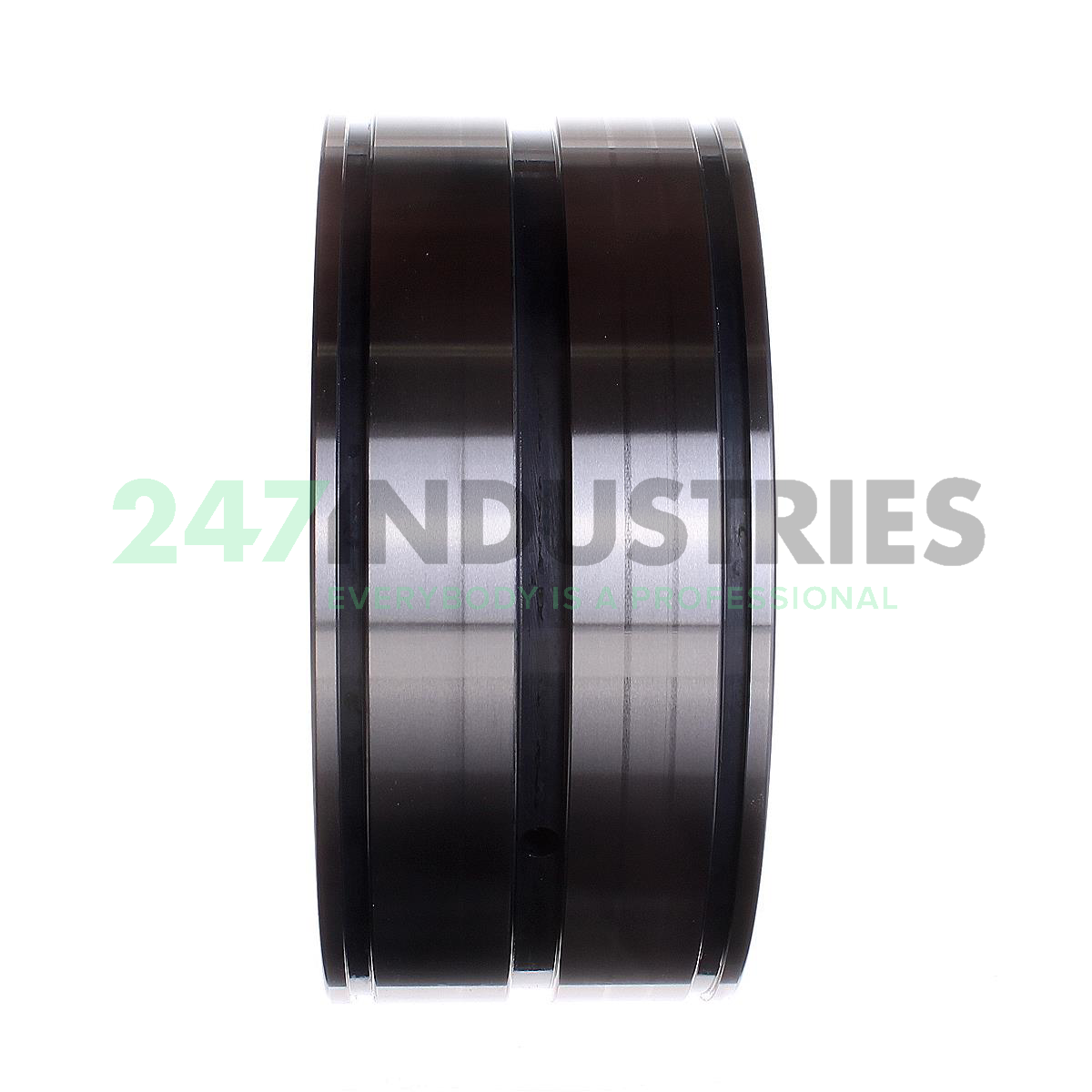

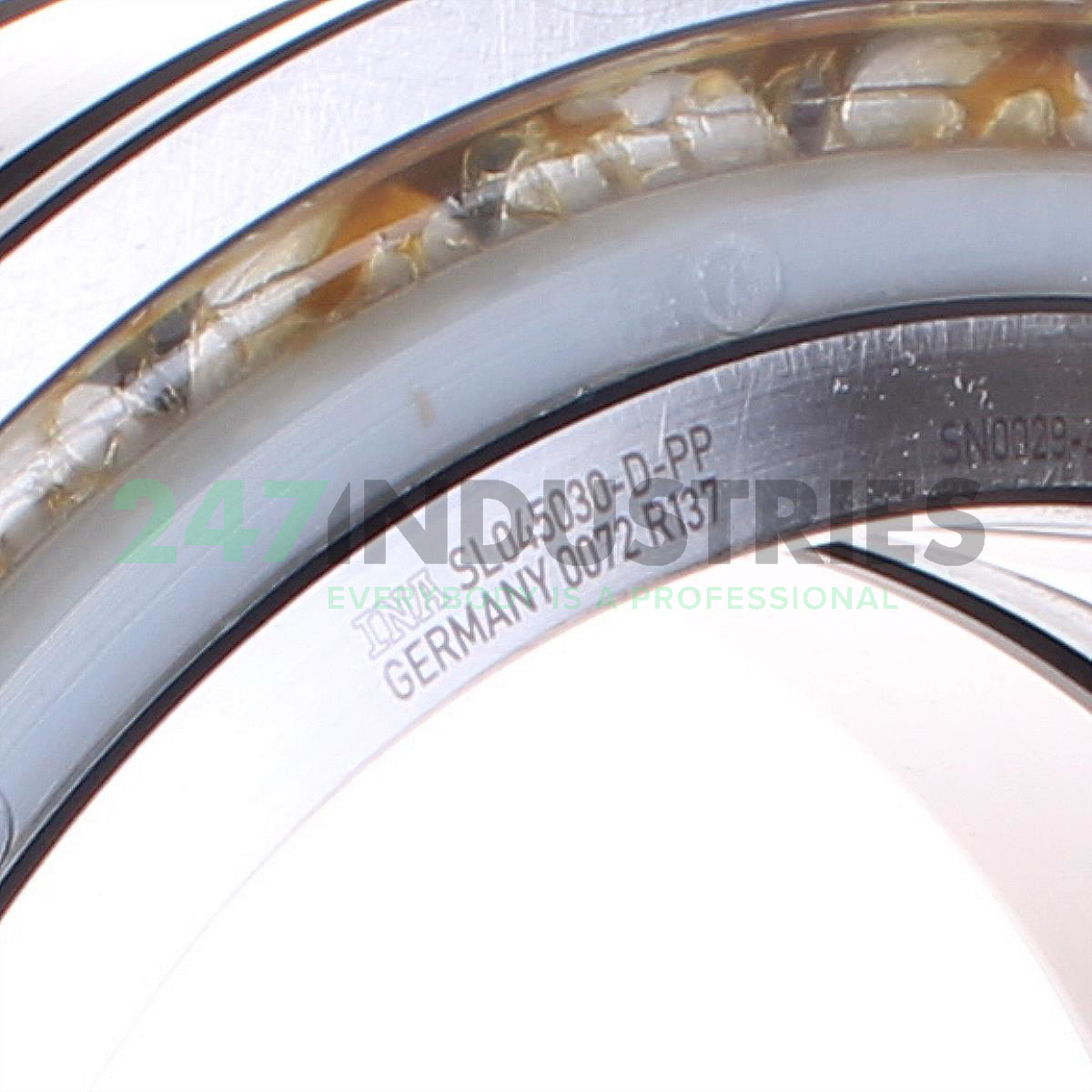

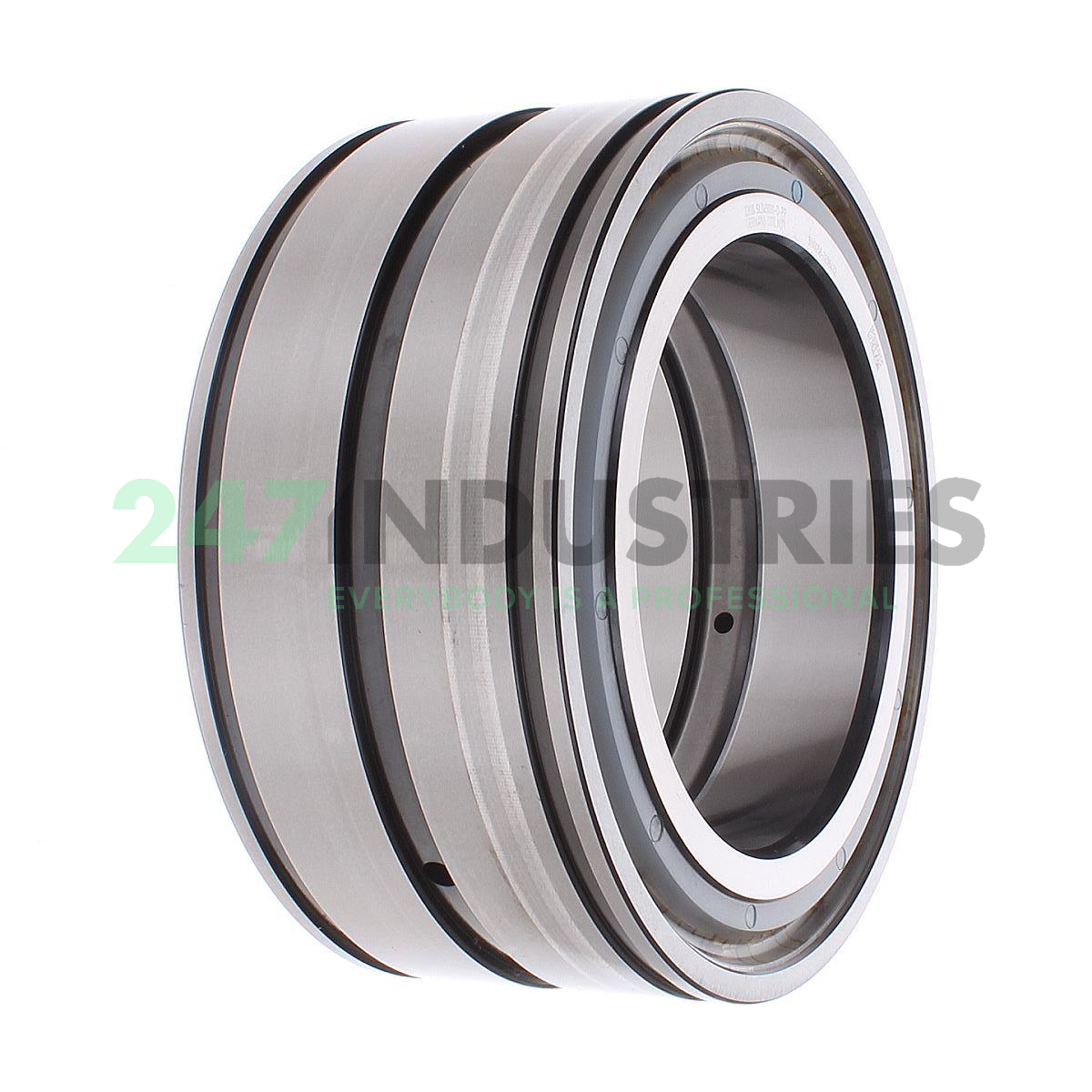

Cylindrical Roller Bearing Double Row

Stock
not in stock
Brand INA
Article number SL045030-D-PP INA
Inside diameter 150mm
Outside diameter 225mm
Width 100mm
Product description

The SL045030-D-PP INA is a full-complement double-row cylindrical roller bearing. This bearing has a particularly high radial load capacity. The design consists of a solid inner and outer ring with a double row of cylindrical rollers. These rolling elements are guided between flanges. Since there is no cage, a maximum number of rollers can be used. This type of bearing is therefore suitable for very heavy loads where lower rotational speeds are involved.

Read more Show less
Help with this product

Downloads and links

Similar to: SL045030-D-PP INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 150
  2. Outer (D) MM 225
  3. Width (B) MM 100
  4. Inner (d) Inch 5.9055
  5. Outer (D) Inch 8.8583
  6. Width (B) Inch 3.937
  7. Width (b) mm 100

Suffix description

  1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
  2. PP Lip Seals On Both Sides Of The Bearing

Technical details

  1. Availability 0 pcs
  2. Brand INA
  3. Item number SL045030-D-PP INA
  4. Also known as 0893188030000
    NNF5030ADA-2LSV
  5. EAN 4054369585100
  6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 13.5

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2L - LS-seal at Both Sides
  3. Cage Type FC - Full Complement, No Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 1260000
  2. Radial Dynamic Load Rating Cr (N) 710000
  3. Limiting speed for grease lubrication (n G Grease) 850
  4. ECLASS number 23-05-09-01
  5. ECLASS2 number 23-05-09-01
  6. Medias description Cylindrical roller bearing SL04..-D-PP, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
