SL045018-D-PP-2NR INA

All dimensions

1. Inner (d) MM 90,00
2. Outer (D) MM 140,00
3. Width (B) MM 67,00
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 5.5118
6. Width (B) Inch 2.6378
7. Width (b) mm 67,00

Suffix description

1. D Outer Ring Profile Developed Further, With An Enlarged Load Bearing Area And Optimized Edge Transitions
2. PP Lip Seals On Both Sides Of The Bearing

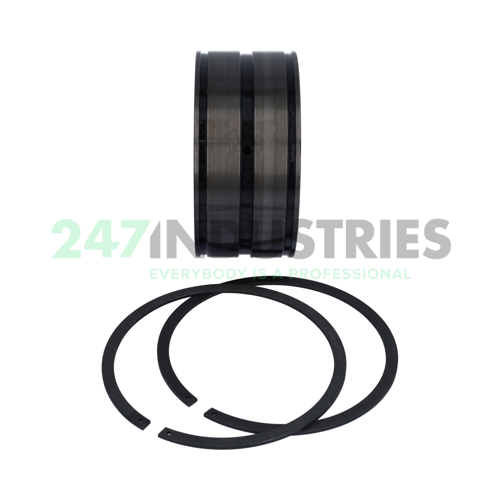

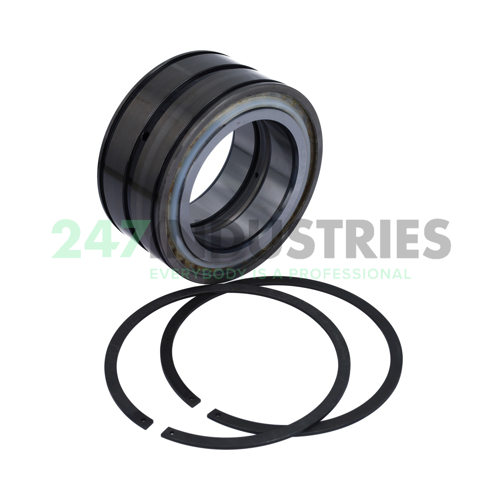

3. 2NR Supplied With Two Loose-Packed Retaining Rings WRE

Technical details

1. Availability 1 pc
2. Brand INA
3. Item number SL045018-D-PP-2NR INA
4. Also known as 0897919160000
   E5018NRNT
   NAS5018UUNR
   NNF5018ADB.2LSV

5. EAN 4054369691245
6. Category Cylindrical Roller Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.82

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2L - LS-seal at Both Sides
3. Cage Type FC - Full Complement, No Cage
4. External Modification 2R - 2 Snap Rings in O.D.
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 510000
2. Radial Dynamic Load Rating Cr (N) 305000
3. Basic static load rating, radial (C 0r) "510000.0000"
4. Limiting speed for grease lubrication (n G Grease) "1410.0000"
5. ECLASS number 23-05-09-01
6. ECLASS2 number 23-05-09-01
7. Medias description Cylindrical roller bearing SL04..-D-PP-2NR, full complement roller set, two-row, locating bearing, central rib on outer ring, 3 ribs on inner ring, type SL04
